• Model NO.：JBTS40-13-85R
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow, Orange
• Weight：5300kg
• Transport Package：Nude
• Specification：dimension: 4700*2300*2800mm
• Trademark：raytone
• Origin：Linyi, China
• HS Code：8413400000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JBTS40-13-85R Vibrating Amplitude 1.0mm Certification ISO9001: 2000 Condition New Color Yellow, Orange Weight 5300kg Transport Package Nude Specification dimension: 4700*2300*2800mm Trademark raytone Origin Linyi, China HS Code 8413400000 Production Capacity 50 Sets Per Month

Product Description

Company Profile
Raytone Company has been active in the  Construction Mahcinery line for 6 more years, we cover an area of concrete pump, block machine, stone crusher, also earthmoving machine, forklift etc.  We aim to provide client right machines, especially right solutions, and engineer installation service. To give our clients a good value for money is our belief.

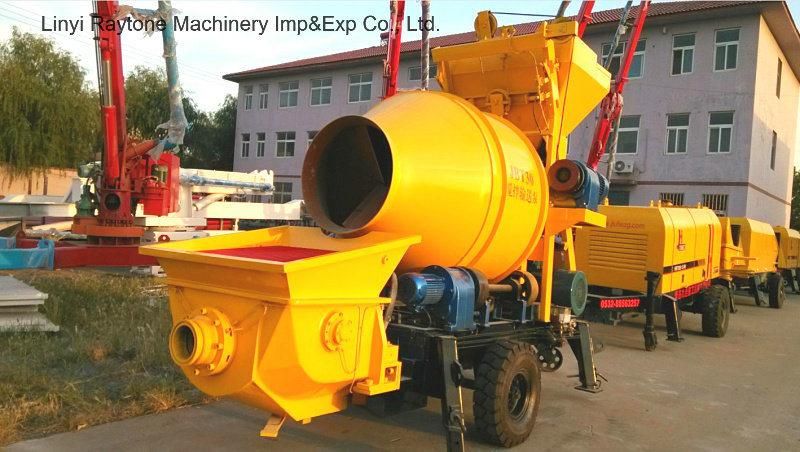

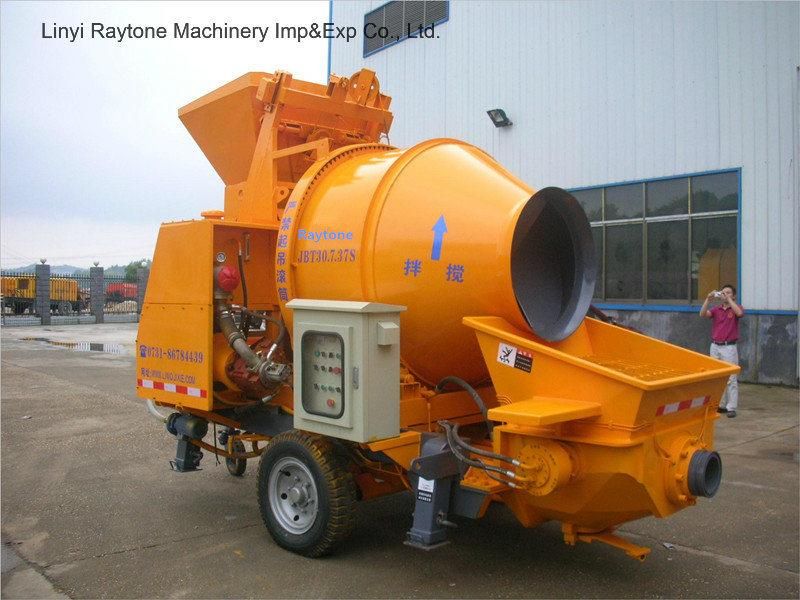

Product description
the diesel movable concrete pump has been widely used in water conservancy, electricity, railway, highway, tunnel, mine, national defense, etc. the capacity covers from 15m3 to 90 m3 per hour,  vertical distance can reach up to 70 meters high, horizontal distance can ga as far as 250 meters.

Machine technical parameters

NO.	Item	Unit	Drum mixer pump
1	Max Theoretical Concrete Output Capacity	m³/h	40
2	Max Concrete outlet pressure	Mpa	13
3	Concrete slump	mm	120-230
4	Aggregate Size	mm	breakstone≤40
5	Main pump		South Korea Kwasaki112
6	Distribution valve		S valve
7	Hydraulic valve		Beijing Huade
8	Main motor	KW	Yuchai85
9	Mixer model		JVC450
10	Power of mixing motor	KW
11	Mixer winch motor	KW
12	Mixer water motor	KW
13	Speed	r/min	2300
14	Concrete cylinder diameter/stroke	mm	φ180/1000
15	Pumping oil cyliner diameter/stroke	mm	φ100/1000
16	High/low pressure switch		NO
17	Capacity of oil tank	L	400
18	Hopper capacity	m³	0.6
19	Feeding height	mm	1100
20	The theoretical maximum  delivery distance vertical/horizontal	m	70/150
21	Washing way of pipeline		Washing
22	Overall dimensions(L*W*H)	m	4700*2300*2800
23	Total weight	Kg	5000
24	Chassis model		Trail
25	Support model		The fixed support leg
26	Hydraulic oil cooling model		The air cooling radiator

Other related Machines introduce

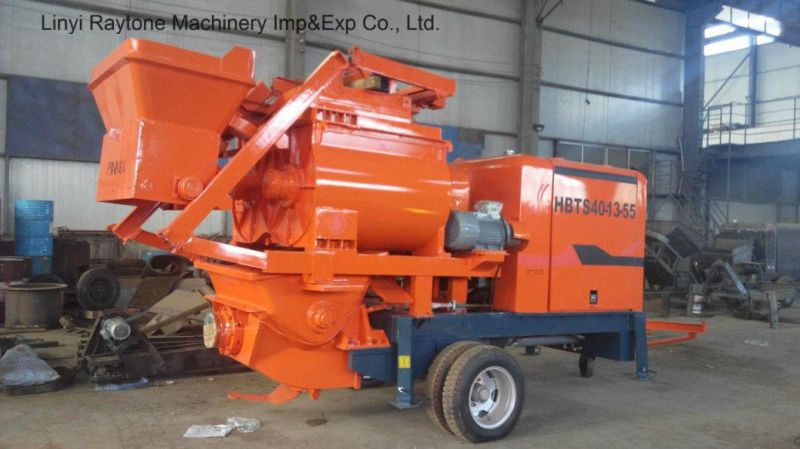

the forced type mixer type concrete pump

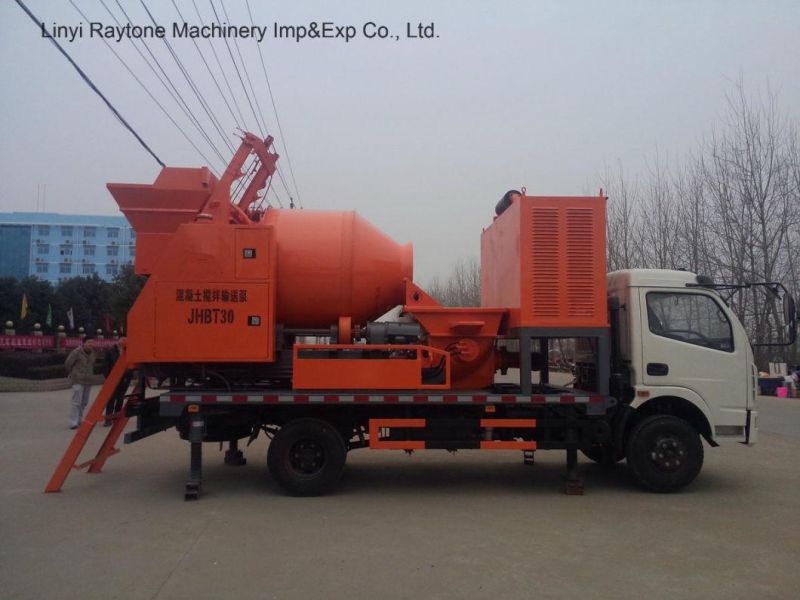

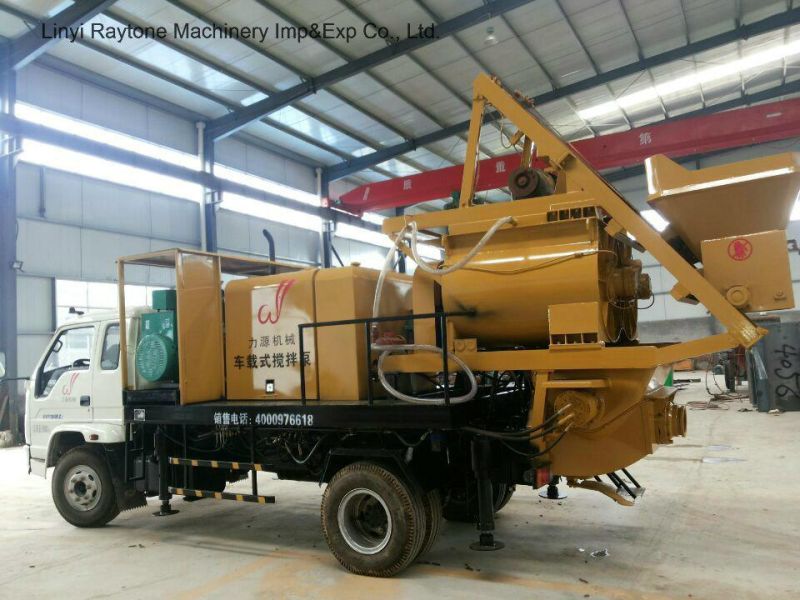

Truck mounted Forced type mixer pump





FAQ:

Please let us know which model of concrete trailer pump you need?

1. The motor (diesel or electric)?

2. The output?

3. The aggregate size that you usually use?

4. How long and high you want to pump?

With the above information, we could recomend you the accordingly and exact model of concrete pump for you.
