• Model NO.：SR26-5
• Travel Speed：30cm,s
• Centrifugal Force：30.5KN
• Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Exciting Force (Kn)：500
• Vibration Frequency (Hz)：29,35
• Nominal Amplitude (mm)：2.0,1.0
• Transport Package：Nude Package
• Specification：6093*2410*3132mm
• Trademark：Shantui
• Origin：China
• HS Code：8429401100
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SR26-5 Travel Speed 30cm/s Centrifugal Force 30.5KN Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Exciting Force (Kn) 500 Vibration Frequency (Hz) 29/35 Nominal Amplitude (mm) 2.0/1.0 Transport Package Nude Package Specification 6093*2410*3132mm Trademark Shantui Origin China HS Code 8429401100 Production Capacity 50000PCS/Year

Product Description

Feature:
Less malfunctions and convenient maintenances

The structural parts inherit the excellent quality of Shantui mature products.

The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

The modular structure eases the disassembling of parts and ensures low maintenance cost and easy maintainability.

The engine oil drainage plug is installed on the bottom of fuel tank to ease the replacement of engine oil.

 Parameter:

Parameter name	SR26-5
Performance parameters
Operating weight (Kg)	26000
Exciting force (KN)	500
Vibration frequency (Hz)	29/35
Nominal amplitude (mm)	2.0/1.0
Gradeability (%)	45
Engine
Engine model	SC9DK220G3
Rated power/rated speed (kW/rpm)	162kw/2200rpm
Overall dimensions
Overall dimensions of machine (mm)	6501*2562*3258
Driving performance
Forward speed (km/h)	F1:3.8 ,F2:5.5 ,F3:5.6 , F4 10.0
Reversing speed (km/h)	R1:3.8 ,R2:5.5, R3:5.6 , R4 10.0
Chassis System
Wheelbase (mm)	3300
Tank capacity
Fuel tank (L)	370
Working device
Compacting width(mm)	2140

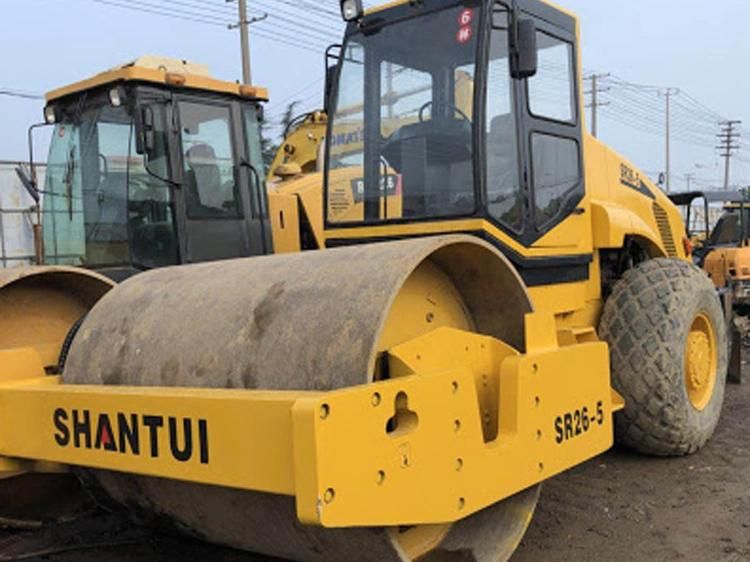

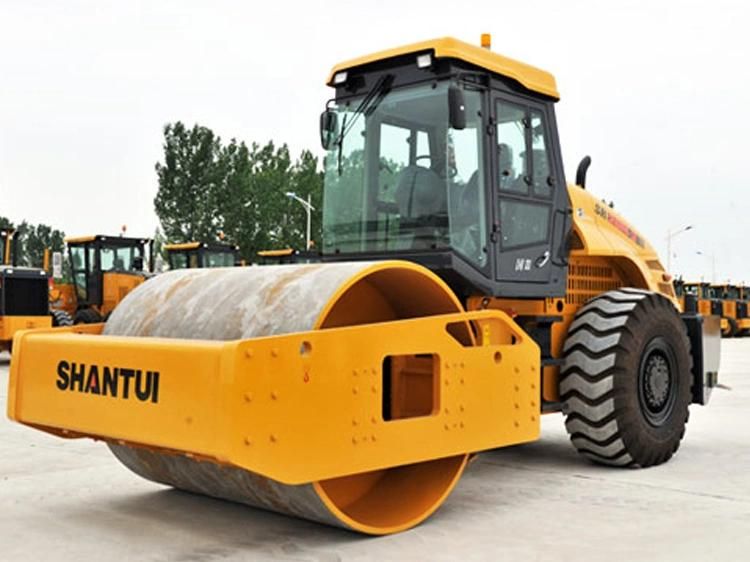

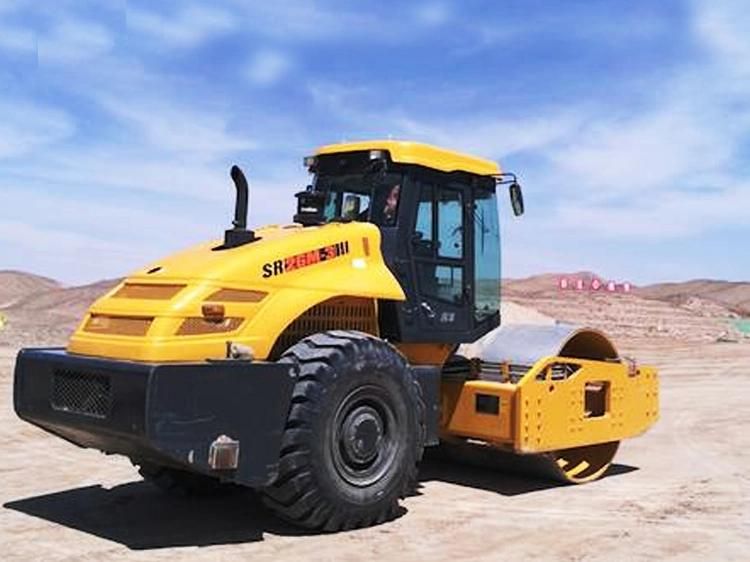

Product Picture:
