• Model NO.：CO, BV, CE
• Certification：ISO9001: 2000
• Condition：New
• Color：Blue
• Plaster Width：0.3-0.8m
• Key Word 1：Plastering Machine
• Key Word 2：Render Machine
• Key Word 3：Wall Plaster Machine
• Key Word 4：Automatic Rendering Machine
• Transport Package：Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Henan
• HS Code：8401200000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. CO, BV, CE Certification ISO9001: 2000 Condition New Color Blue Plaster Width 0.3-0.8m Key Word 1 Plastering Machine Key Word 2 Render Machine Key Word 3 Wall Plaster Machine Key Word 4 Automatic Rendering Machine Transport Package Wooden Cases Specification ce co ccc Trademark GMEC Origin Henan HS Code 8401200000 Production Capacity 100 Sets Per Month

Product Description

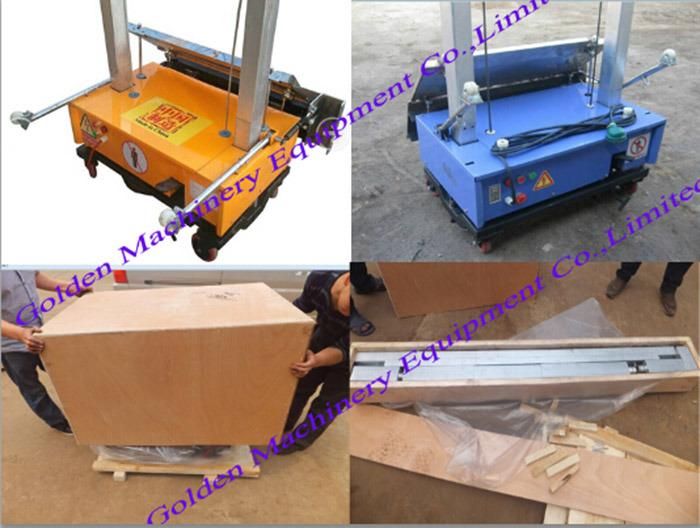

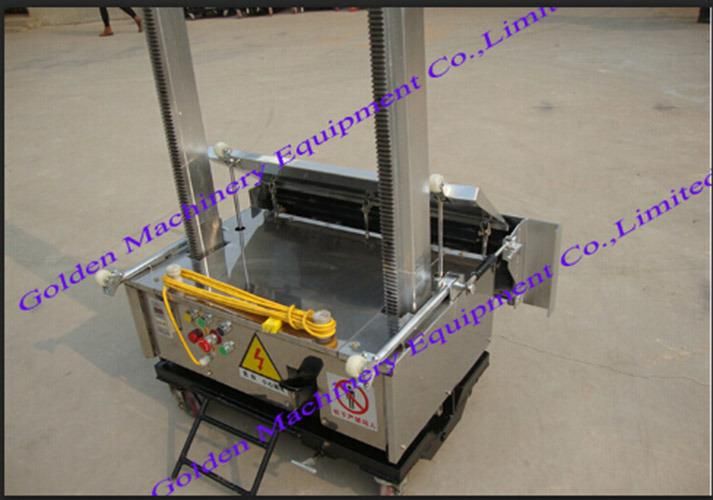

Automatic Wall mortar plastering render or Rendering Machine
Miniature automation wall rendering machine type 900 (export-oriented)
Automatic Wall Plaster Rendering Machine or mortar plaster machine.
Applications:
Application on brick or block walls
Render cement mortar
Render gypsum mortar
Render lime mortar
Render ready mix

Advantages:
1, The volume is small, the weight is light, easy to move (automatic walking, automatic positioning, automatic adjustment of the plaster thickness, automatically adjust the plaster joints ), easy to operate.
2The unique design of the dual- rail automatic lift, automatic positioning, the main rail design height of 1.96m, host design: Wide 78cm x long 80cm. Breakthrough of the biggest challenges of the whitewashed wall machine manufacturers of domestic and market can not solve so far for different floors of a high degree of automatic movements, and an effective solution across the room the construction of fills.

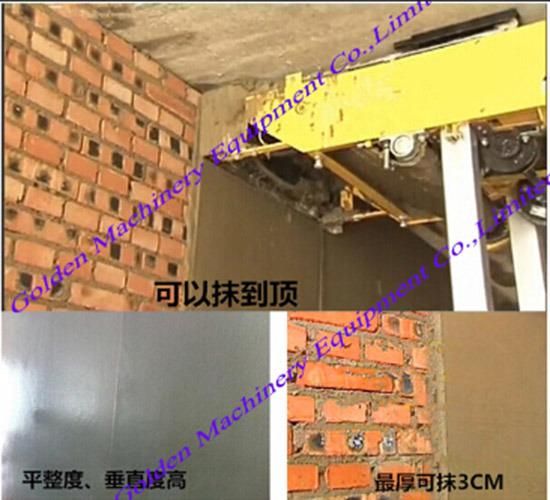

3The machine is designed to squeeze plaster, plaster thickness up to 0.2 - 3cm not fall off, further strengthened the bond strength of the mortar and the wall, dense degree more than the manual more than five times, an effective solution to the artificial plaster in mortar off and hollowing phenomenon.
4Positioning mode, our company developed a complete positioning system, combined with laser positioning; The positioning is simple, fast, high precision. Really reached the whitewashed wall of the precedent of automation at home and abroad, to effectively guarantee the accuracy of wall roughness and verticality.
5The professional design of automatic retractable motor adjustment control verticality and the second rail positioning to achieve the plaster, the whereabouts of the mobile location at the same time, significant savings in time and solve this problem up outside the host.
6The unique design of the plaster thickness and the second plaster joints automatic retractable motor adjustment, the adjustment range between 2mm - 50mm, free to run, to achieve a degree of automation.
7Yin and yang, the angle forming device is specifically designed based on years of experience in construction company's technical staff.
8This machine equipped with operating platform, very lightweight, weighing only 20Kg. The base is provided with a universal wheel, can be very handy operation.
The main technical performance indicators.

Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 5m	Plaster efficiency	2.56 /39s
Plastering time	39s	A plastered area	2.56/39s
Secondary calender time	39s	Secondary pressure light area	2.56/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm
