Year End Promotion Shantui 22 Ton Hydraulic Excavator Se220
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Electric Drive
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：SE220
- Size：Medium-Sized
- Certification：ISO9001: 2000
- Condition：New
- Transport Package：Nude
- Trademark：Shantui brand
- Origin：Shandong, China
- Production Capacity：1000sets,Month
Description
Basic Info.
Model NO. SE220 Size Medium-Sized Certification ISO9001: 2000 Condition New Transport Package Nude Trademark Shantui brand Origin Shandong, China Production Capacity 1000sets/MonthProduct Description

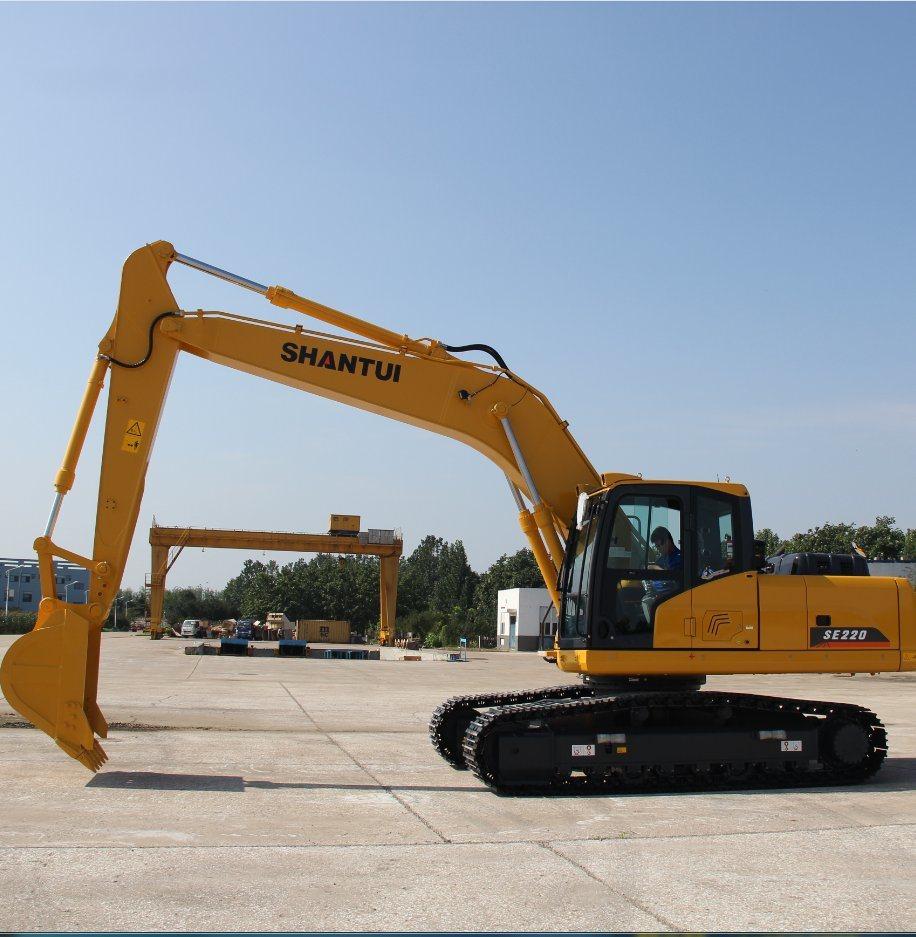

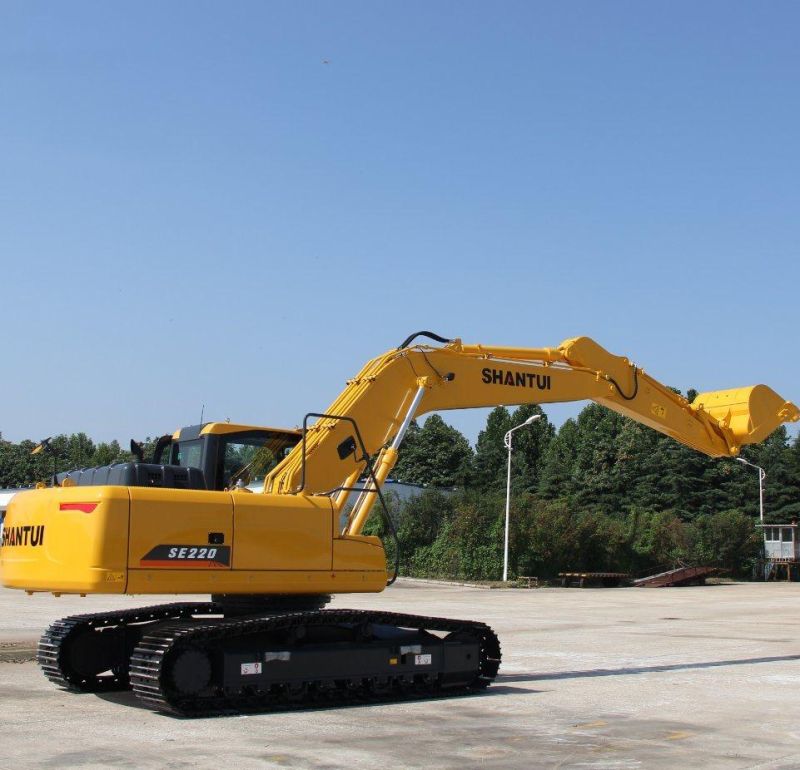

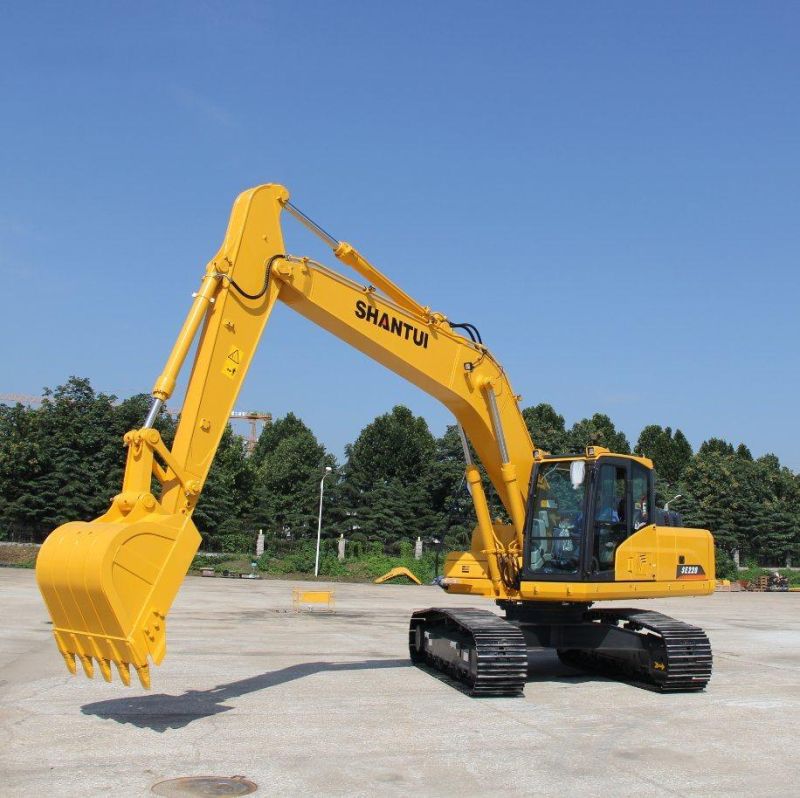

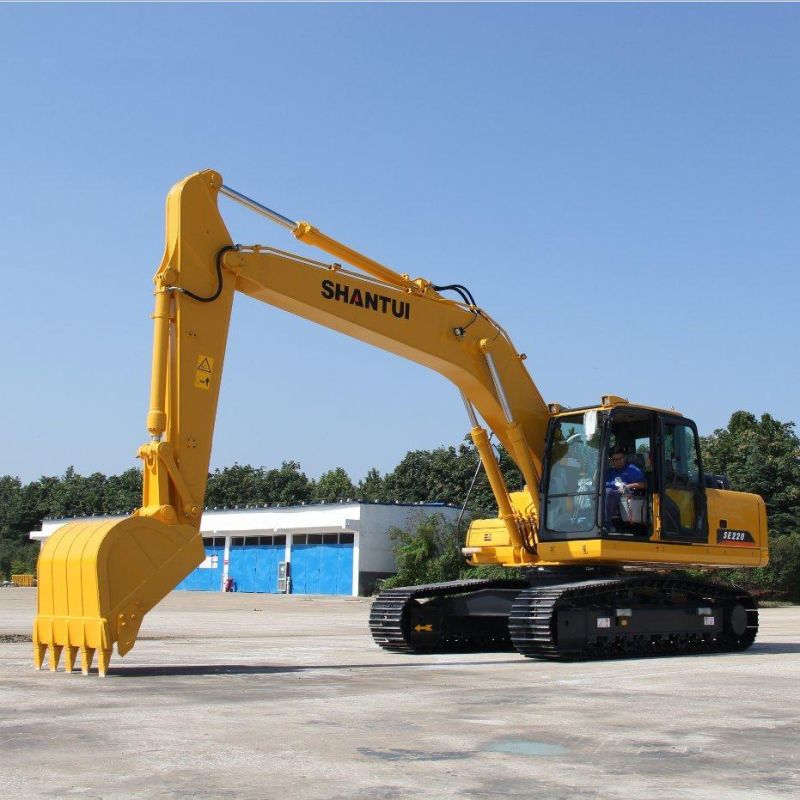

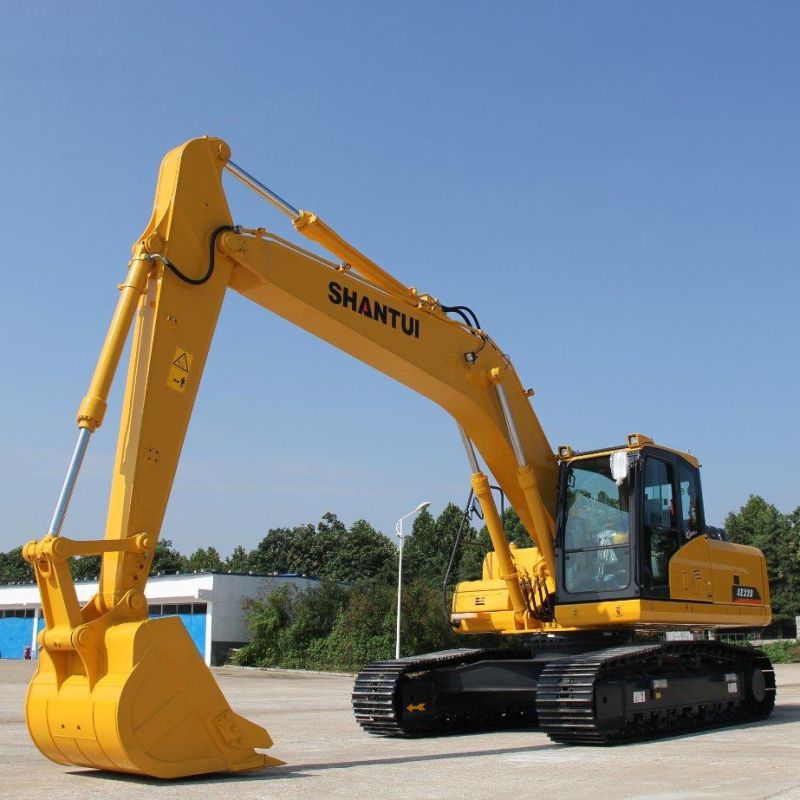

SHANTUI new 22 ton hydraulic crawler excavator SE220
Technical Features
Product features
* The paralleling radiator is adopted to effectively prevent the overheating. The exhaust system is optimized based on the Fluent simulation to reduce the exhaust noise and improve the engine
power utilization effciency. The transmission route is optimized based on the MATLAB vibration system simulation principle so that the noise level of the machine is superior to CE standard
requirement. The three-stage integrate fuel filter and the electric fuel pump guarantee the good fuel adaptability and effectively protect the engine.
* Product reliability: The high quality core parts and the design optimized working device feature stable and reliable quality.
* Operations and maintenances: The large color display can real-time monitor the working status of machine mode and incorporates the malfunction self-diagnosis and record function.
The multi-stage power control is adopted for the manual and electronic accelerators so that the user can select different working modes depending on own needs. The diversified optional
attachments, including breaking hammer, ripper, and quick change device, can be equipped to realize the digging, landfill, breaking,and leveling operations, featuring multi-function capability.
The remote installation locations for the maintenance parts ease the maintenance operations.
* Comfort: Within the spacious cab, the arrangement and color matching of the upholstery are designed as per the ergonomic principle. The full-automatic A/C system, automatic air vent
adjustment and distribution, and height and position adjustable seats feature excellent adaptability. The cab is equipped with composite shock absorbers to effectively mitigate the vibration of
the cab.
* Appearance: The all-new modeling is designed as per bionic principle and is covered with fully molded and electrophoresis treated coverings
| Comparative item | SE220 (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 9605 |
| Ground length (During transport) (mm) | 4915 |
| Overall height (To the top of boom) (mm) | 3040 |
| Overall width (mm) | 2980 |
| Overall height (To top of cab) (mm) | 3070 |
| Ground clearance of counterweight (mm) | 1080 |
| Minimum ground clearance (mm) | 470 |
| Tail turning radius (mm) | 2925 |
| Track length (mm) | 4270 |
| Track gauge (mm) | 2380 |
| Track width (mm) | 2980 |
| Standard track shoe width (mm) | 700 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 2920 |
| Working range | |
| Maximum digging height (mm) | 10100 |
| Maximum dumping height (mm) | 7190 |
| Maximum digging depth (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5770 |
| Maximum digging distance (mm) | 9865 |
| Maximum digging distance at ground level (mm) | 9680 |
| Working device minimum turning radius (mm) | 2970 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | Cmins B5.9-C (China-II) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 6.7 |
| Rated power (kW/rpm) | 124/2050 |
| Hydraulic system | |
| Type of hydraulic pump | Duplex axial variable displacement plunger pump |
| Rated working flow (L/min) | 2X213 |
| Bucket | |
| Bucket capacity (m³) | 1.05 |
| Swing system | |
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 99/107 |
| Bucket digging force (KN) | 137/148 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 21900 |
| Ground pressure (kPa) | 47.7 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.1 |
| Traction force (KN) | 212 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 330 |
| Cooling system (L) | 28 |
| Engine oil capacity (L) | 20 |
| Hydraulic oil tank/system capacity (L) | 190/400 |
