Integral Drill Rods Drilling Equipment Drill Steel
YANTAI PANDA EQUIPMENT CO., LTD.- Type：Drill Tools
- Application：Drilling and Construction
- Certification：CE, ISO9001: 2000, API
- Condition：New
- Diameter：22mm, 25mm, 19mm
- Shank：H22mm*108mm H19X109mm
Base Info
- Model NO.：19*108, 22*108, 25*159
- Material：Tungsten Carbide, High Manganese Steel
- Processing Type：Forging
- Use：Coal Mining,Quarry Drilling or Well Drilling
- Transfer：Air,Sea,Express
- Color：Request
- Advantage：High Performance
- Product Name：Taper Drill Rod
- Inserts Design：Spherical; Ballistic; Parabolic
- Transport Package：Wooden Box or as Customers Inquire
- Specification：7° , 11° , 13°
- Trademark：PANDA
- Origin：Shandong China
- HS Code：82071990
- Production Capacity：20000 Pieces , Week
Description
Basic Info.
Model NO. 19*108, 22*108, 25*159 Material Tungsten Carbide, High Manganese Steel Processing Type Forging Use Coal Mining,Quarry Drilling or Well Drilling Transfer Air/Sea/Express Color Request Advantage High Performance Product Name Taper Drill Rod Inserts Design Spherical; Ballistic; Parabolic Transport Package Wooden Box or as Customers Inquire Specification 7° , 11° , 13° Trademark PANDA Origin Shandong China HS Code 82071990 Production Capacity 20000 Pieces / WeekProduct Description

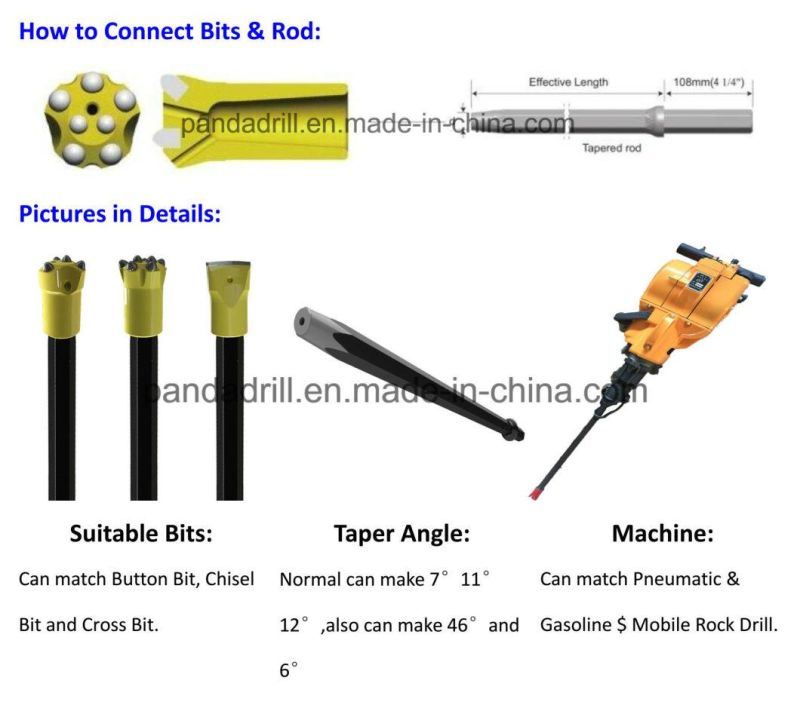

Product Description:Taper Drill Rod is used for rock drilling, blasting holes and other drilling situations, including quarries, coal mines, traffic and other construction.
Normal diameter or rod is 22mm, named H22, PANDA can also make H19 and H25.
Effective Length: 300mm to 8000mm.
Degrees : 7°.11°,12°
Shank: 22*108mm
PANDADRILL can make all sizes and shapes according to your request!
Specification:
| LENGTH(MM) | LENGTH(FEET) | WEIGHT(KG) | PART CODE |
| 305 | 1 | 1.7 | PAD0305 |
| 915 | 3 | 2.9 | PAD0915 |
| 1830 | 6 | 6.0 | PAD1830 |
| 2135 | 7 | 6.5 | PAD2135 |
| 2438 | 8 | 7.8 | PAD2438 |
| 3050 | 10 | 9.9 | PAD3050 |
| 3350 | 11 | 10.1 | PAD3350 |
| 4270 | 14 | 12.7 | PAD4270 |
| 4880 | 16 | 15.1 | PAD4880 |
| 5490 | 18 | 17.5 | PAD5490 |
| 6100 | 20 | 20.0 | PAD6100 |
| 7015 | 23 | 22.5 | PAD7015 |
| 7930 | 26 | 25.0 | PAD7930 |
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
