• Model NO.：ACE-CM140
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Product Name：Mobile Concrete Mixer
• Power：500W-800W
• Voltage：60Hz
• Motor Speed：2280 Rpm
• Mixing Drum Speed：25-30r,Min
• Diameter of Drum Open：14.5 Inches
• Net Weight：62kgs
• Transport Package：Carton
• Specification：120,130,140,160,180,220,220L
• Trademark：ACE
• Origin：Ningbo, China
• HS Code：84743100
• Production Capacity：30000 PCS,Year

Basic Info.

Model NO. ACE-CM140 Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE Condition New Color Yellow Product Name Mobile Concrete Mixer Power 500W-800W Voltage 60Hz Motor Speed 2280 Rpm Mixing Drum Speed 25-30r/Min Diameter of Drum Open 14.5 Inches Net Weight 62kgs Transport Package Carton Specification 120/130/140/160/180/220/220L Trademark ACE Origin Ningbo, China HS Code 84743100 Production Capacity 30000 PCS/Year

Product Description

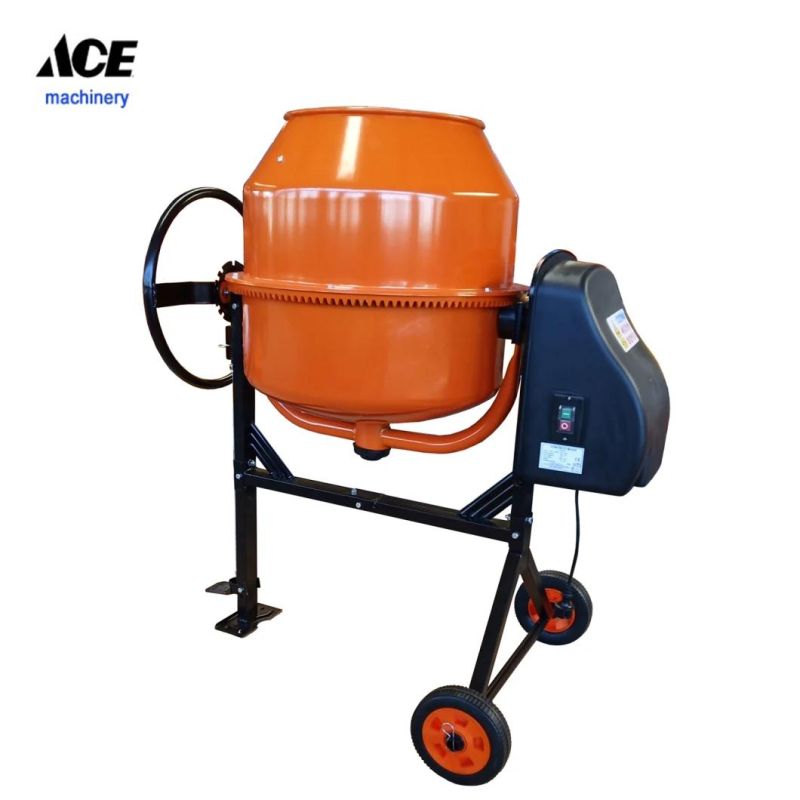

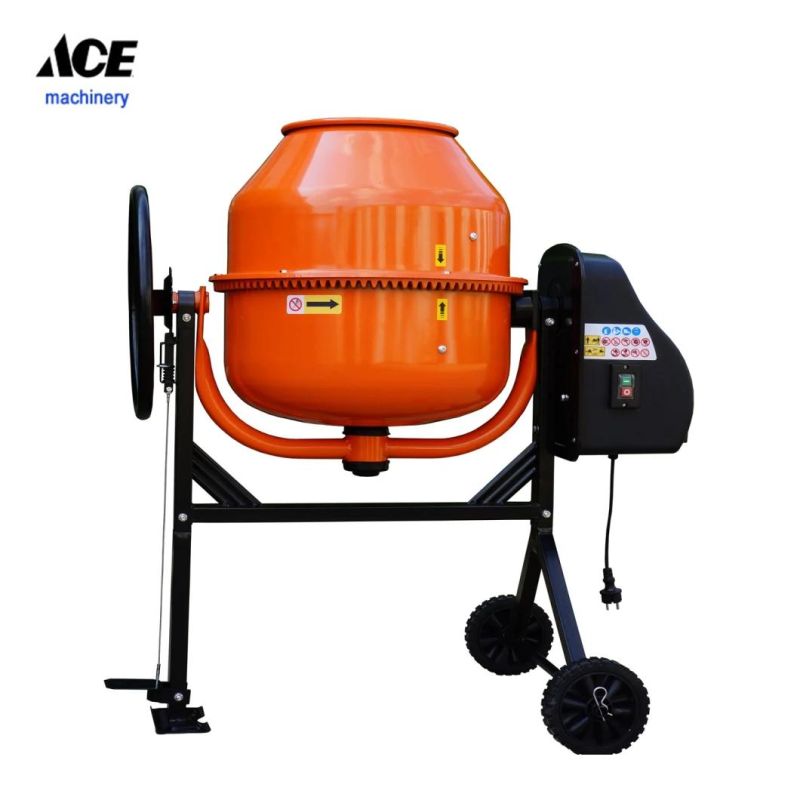

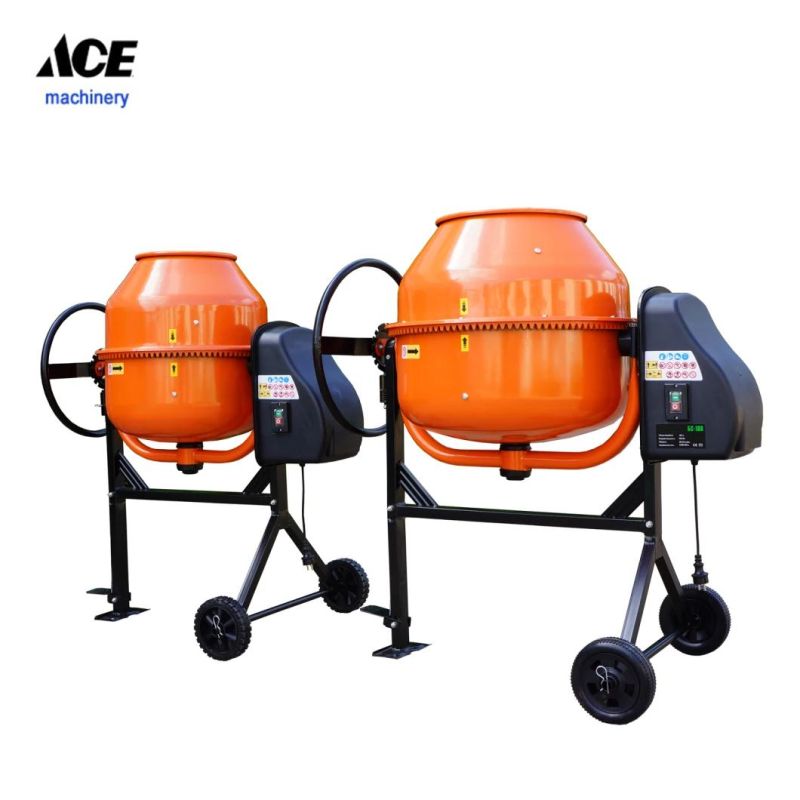

 120/130/140/160/180/200/220L Electric Mobile Concrete mixer

Heavy duty cement mixer ideal for concrete, stucco, and mortar. Perfect machine for inoculating seeds and mixing feeds. All-steel construction with large wheels for easy handling. This unit can mix up to 270 LBS of cement with a heavy duty 4/5 HORSEPOWER MOTOR

Concrete Mixer Features :

1. Widely used in the field of small-scale architecture and decoration for mixing mortar,cement and feeds etc.
2. Heavy duty steel drum and electric motor.
3. It is easy to operation and with a small volume.

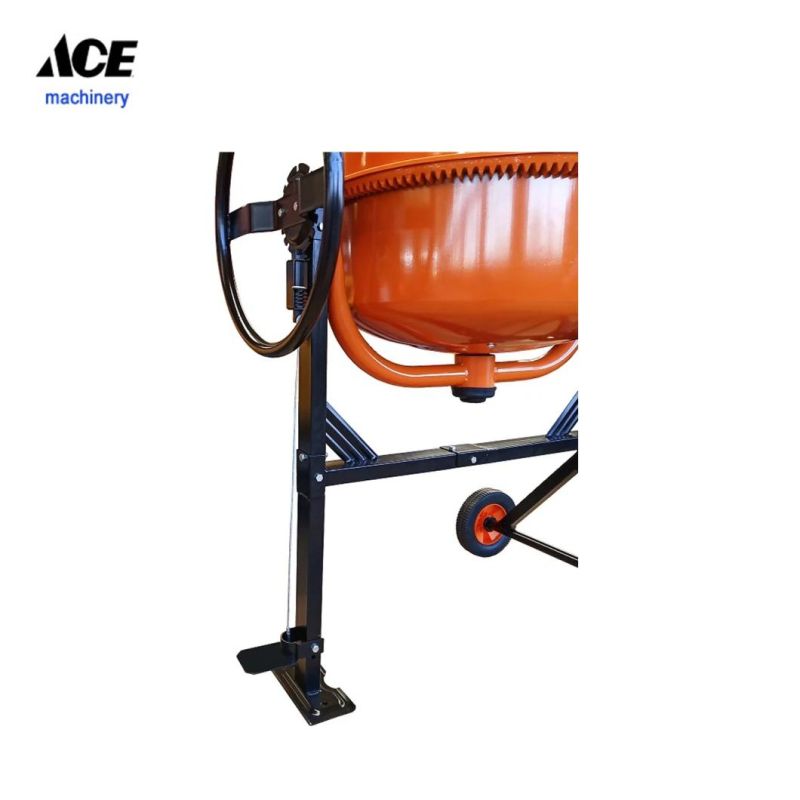

4. Foldable frame for easy stock and transportation.
5. Solid frame for high stablity.
6. 100% copper wire motor for durable working.
7.Mixing drum thickness:1.2mm(UpperDrum)/1.5mm(LowerDrum)

Technical Specification:

Capacity	Power	Motor cover	Drum Diameter	Drum mouth	Ring gear	Weight	Packing size
120L	500W	Plastic	520mm	385mm	cast iron	41kg	62*58*42
130L	550W	Plastic	566mm	385mm	cast iron	47kg	75*69*37
140L	550W	Plastic	566mm	385mm	cast iron	48kg	75*69*37
160L	650W	Plastic	630mm	395mm	cast iron	54kg	77*69*37
180L	650W	Plastic	630mm	395mm	cast iron	55kg	77*69*43
200L	800W	Plastic	630mm	395mm	cast iron	56kg	77*69*43
220L	800W	Plastic	630mm	395mm	cast iron	57kg	77*69*45

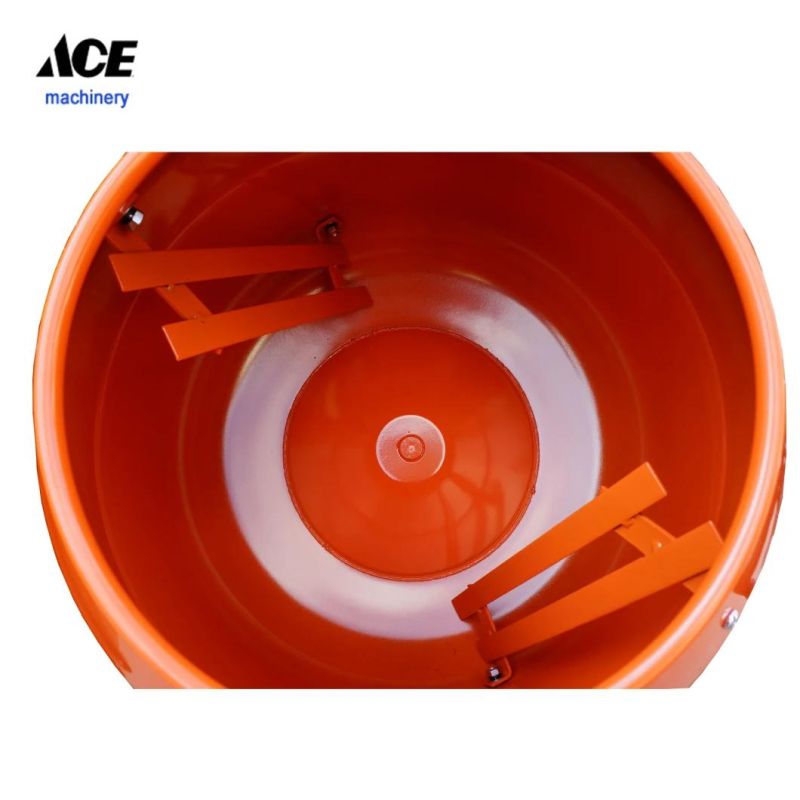

360 Degree Mixing

•Inertial stirring achieving 360 degrees mixing without dead ends
•Gross Drum Volume: 170 liters
•Unmixed Dry Volume: 140 liters
•Mixed Wet Volume: 110liters
•Mixing Capacity: 2.5 Cubic Feet / 270 LBS



Tightness

•Thickened inner wall provide safety usage and large carrying capacity
•Industrial grade quality shows in every details like material, joint and weld

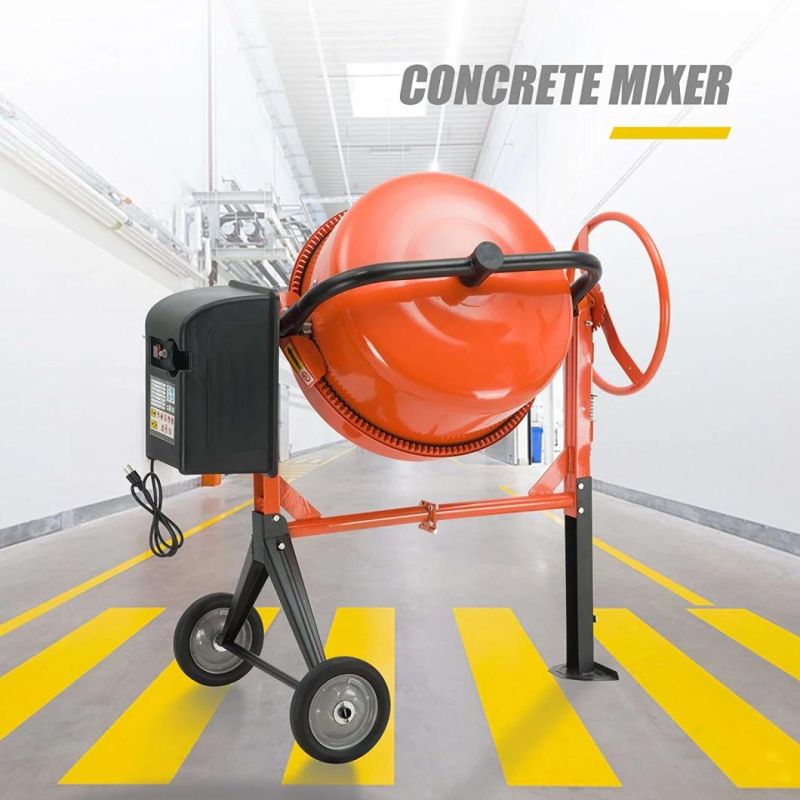

Concrete Mixer

•Industrial grade steel frame cement mixer adds stability and durability
•Meet the CE Certificated
•Ideal for mixing cement, stucco, and mortar

Premium Motor

•Premium motor with copper coil featuring high efficiency and strong power
•Power: 4/5HP Motor, 2880 RPM, 2.3 Amp
•Voltage: 110V, 60Hz
Shockproof

•2Pcs 8" wheels let the mixer more stable
•Wear-resistant and shockproof
•Rubber wheels for easy movement
