• Model NO.：BY800
• Engine：Honda Gx390 13HP
• Optional Engine：Honda, B&S and Loncin
• Drum Material：Plastic Spray
• Weight：610kgs
• Engine Type：13HP 4stroke Gasoline or Diesel
• Drum Color：Red Sliver Black
• Certificate：CE
• Brake Parking：Machanical
• Model：Optional
• Transport Package：Plywood Case or Cartoon
• Specification：CE
• Trademark：ANT
• Origin：Jiangsu, China
• HS Code：84289090
• Production Capacity：500unit,Month

Basic Info.

Model NO. BY800 Engine Honda Gx390 13HP Optional Engine Honda, B&S and Loncin Drum Material Plastic Spray Weight 610kgs Engine Type 13HP 4stroke Gasoline or Diesel Drum Color Red Sliver Black Certificate CE Brake Parking Machanical Model Optional Transport Package Plywood Case or Cartoon Specification CE Trademark ANT Origin Jiangsu, China HS Code 84289090 Production Capacity 500unit/Month

Product Description

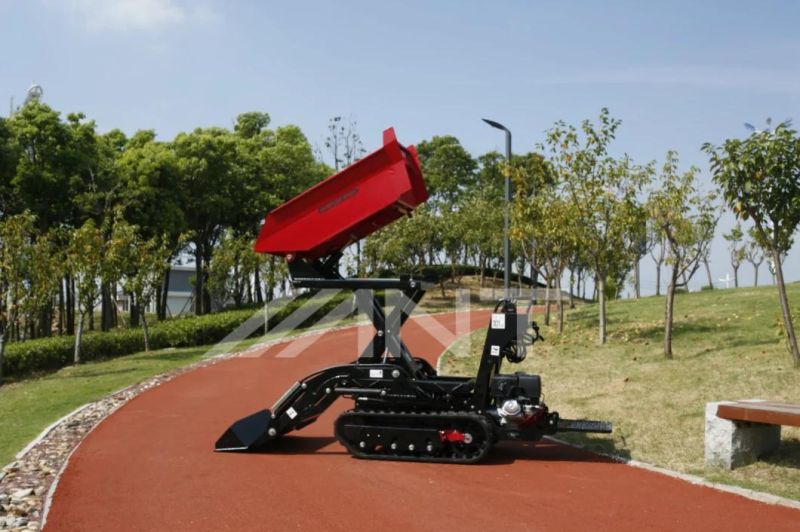

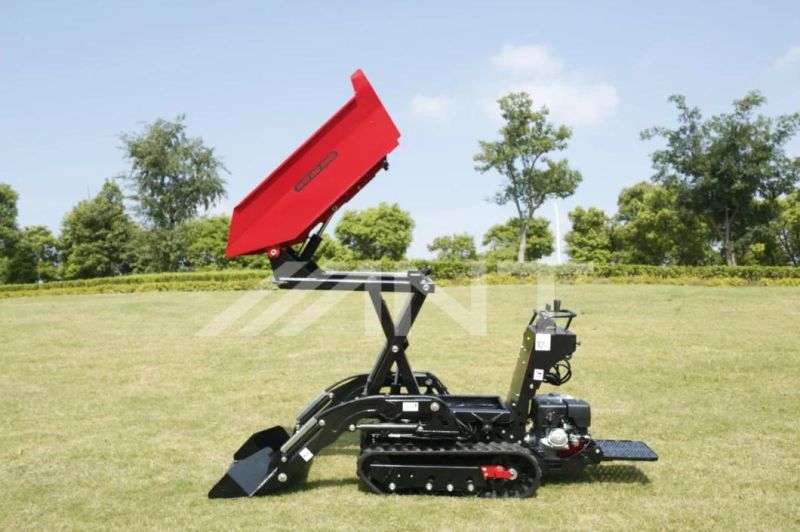

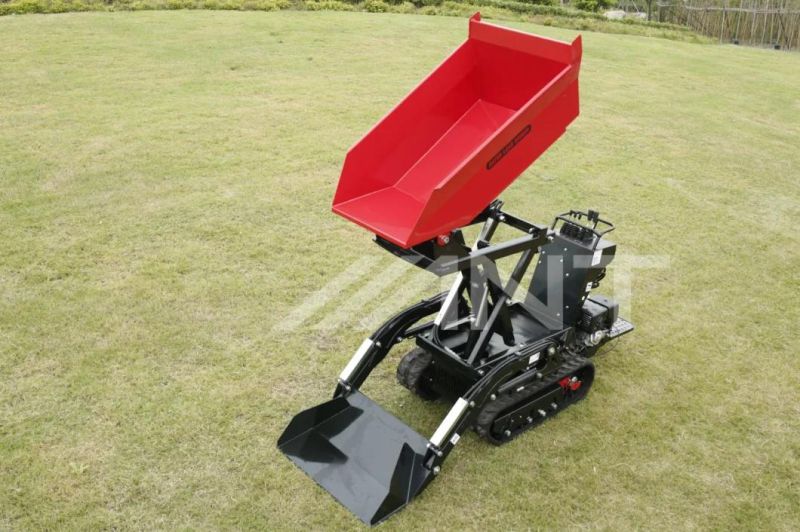

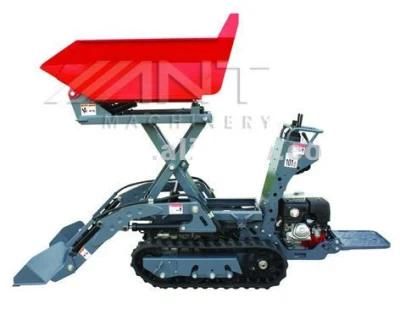

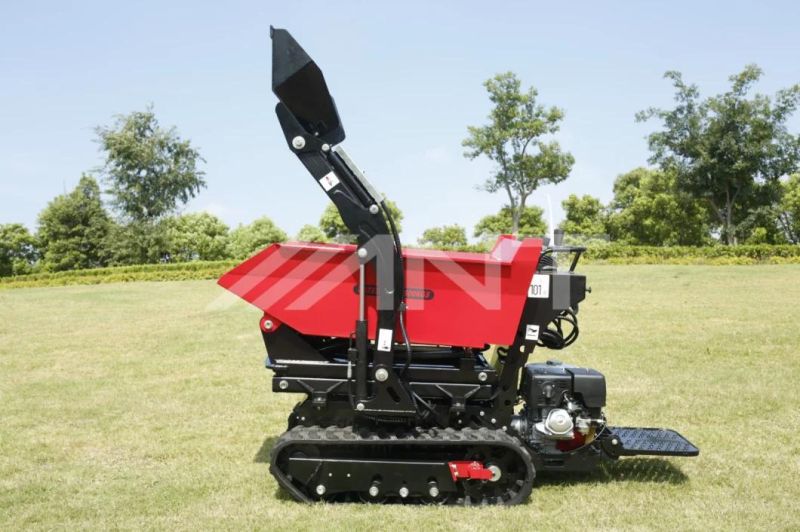

BY800 cheap garden tractor made in china manufacturing
Specifications
*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.
*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning ,mini slipping.



This power barrow is very powerful, built for the tough outdoors, helping you reach new heights, it can load up to 1000KG and is an essential machine at the fram, stable, work site and at home for your gardening and building projects. It is safe, convenient and high efficiency, suitable for carrying almost everything like brick, cement, sand, stone and so on.

SERVICES:

OUR COMPANY:
Our company is a professional manufacturer, and we have strong technological advantages, complete producer`s equipment and perfect testing technology.



Model
BY800
Engine
Honda GX390 13HP gasoline/B&S/Kama Diesel
Type
Hydra-static
Operative weight       kgs(lbs)
800 (1762)
Max travel speed       km/h(mph)
0-4.8(0-3.0)
Transmission

Hydraulic pump
2 x variable displ.
Flow                 Vmin(gpm)
2 x 32.4 (2 x 8.5)
Hydraulic motors
2 x orbital
Brake parking
Mechanical
Hydraulic system

Hydraulic pump
Gear pump
Flow                 Vmin(gpm)
1 x 13.5 (1 x 3.5)
Hi-flow               Vmin(gpm)
1 x 22 (1 x 3.5)
Max pressure           bar(psi)
150 (2180)
Main valve
2-3 way
Cooled system
air-cooled
Skip tipping system
Hydraulic
Tracks

Standard track width     mm(in)
180 (7.1)
Track roller
3
Rocking rollers
Yes
Track tensioning
Yes
