Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale

Fujian Raygoo Machinery Co., Ltd.
  • After-sales Service：Shipping Service, Aftermarket Parts Provide
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic

Base Info

  • Model NO.：LG918
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Rated Bucket Capacity：1.0-1.4m3
  • Engine Power：58kw
  • Engine：Yuchai
  • Maximum Breakout Force：56kn
  • Total Weight：6150kg
  • Wheel Base：2260mm
  • Tread：1490mm
  • Transport Package：Container, RO-RO
  • Specification：5790*2140*2920mm
  • Trademark：Raygoo
  • Origin：Fujian, China
  • HS Code：84295100
  • Production Capacity：5000

Description

Overview Product DescriptionOverall dimensionL*W*H5790*2140*2920mmWheel base2260mmMin. ground clearance290mmMax. dumping height2510mmLifting height3200mmDumping distance920mmDumping angle45°wheel tread1630mmsteering angle35°horizontal crossing radius5082mmMin. turning radius4460mmOverall parametersBacket capacity1.0m3(1.0-1.4)Rated load1800kgoperating weight6400kgMax. tractive force56kNMax. breakout force58kNTipping load36kNEngineModelYC4D80-T20Typewatercooled, four-stroke, direct injectionRated power58kWRated speed2400r/minEngine displacement4214mlMax. torque265N.mEmission standardGB 20891-2007Min. fuel-consume ratio235g/kw.hTransmission systemTorgue convertersingle-stage three-element hydraulic torque converterTransmission typeFixed shaft power shift+high/low speedGearsForward 2 reverse 2Hydraulic system of working deviceTypeHydraulic pilot controltotal time9.1sBrake systemService brake typeAir over hydraulic disc typeParking brake typeManual control internal expanding shoe brakeSteering systemTypeLoad sensing full hydraulic articulated steeringSystem pressure12 MpaFill capacityFuel120LHydraulic oil100LEngine13LTransmission20LDrive axleForward 10L+ reverse 10LBraking system4L

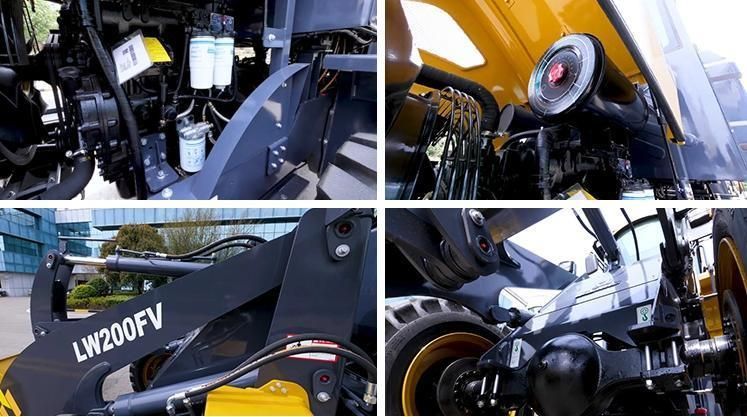

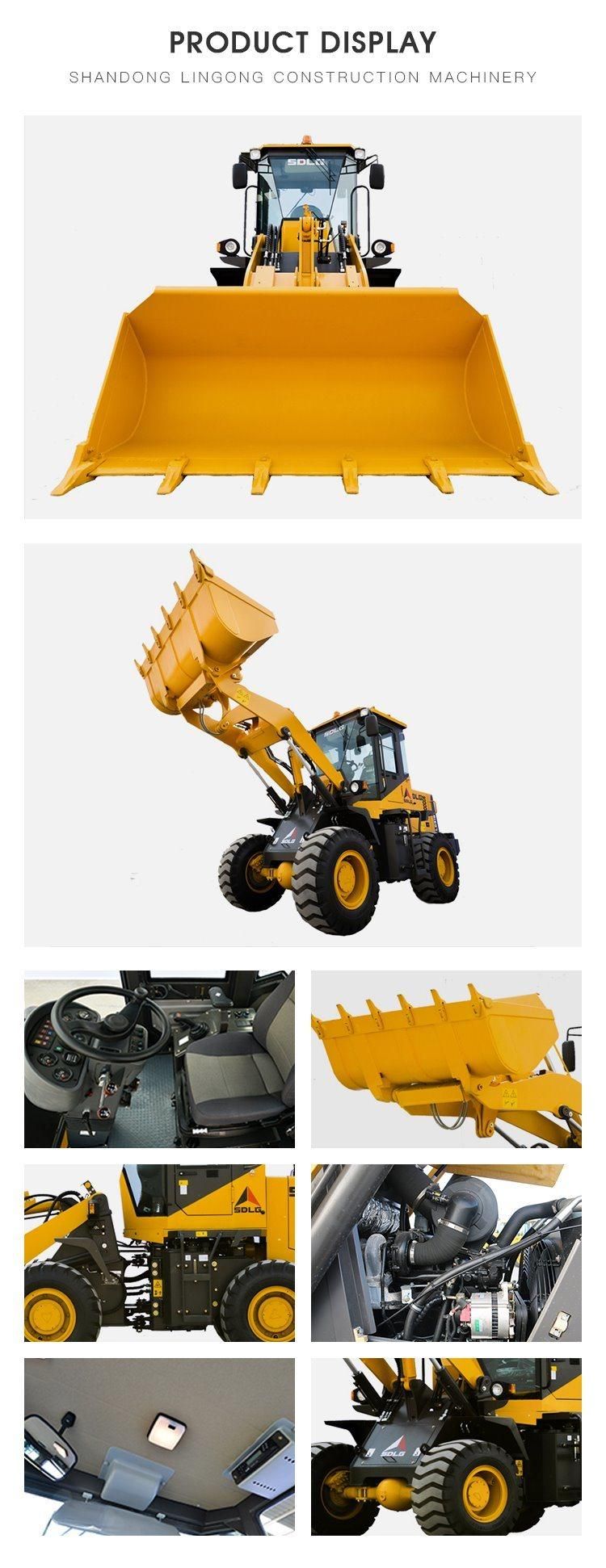

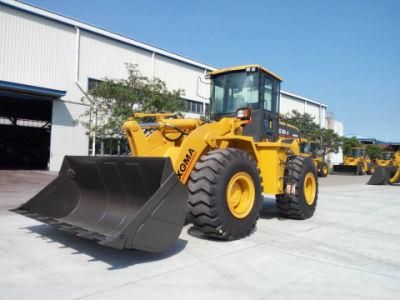

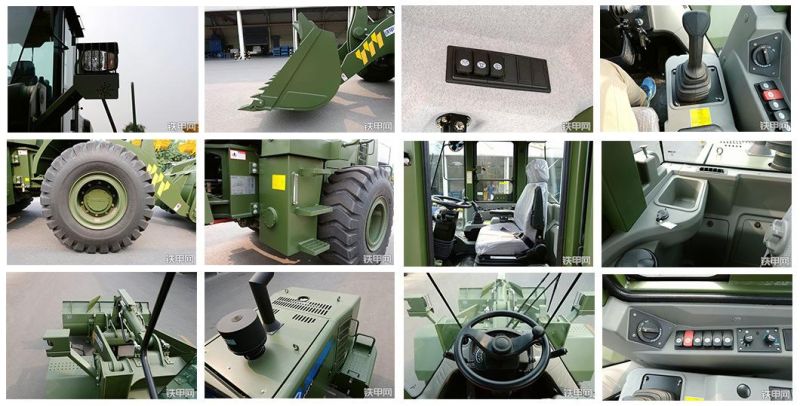

Detailed PhotosSdlg Small Front End Shovel Loader LG918 with Superior Performance

Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on SaleMade-in-China Construction Machinery 1.8ton Articulate Wheel Loader on SaleMade-in-China Construction Machinery 1.8ton Articulate Wheel Loader on SaleMade-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale

Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on SaleOur machines advantages

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.
Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale

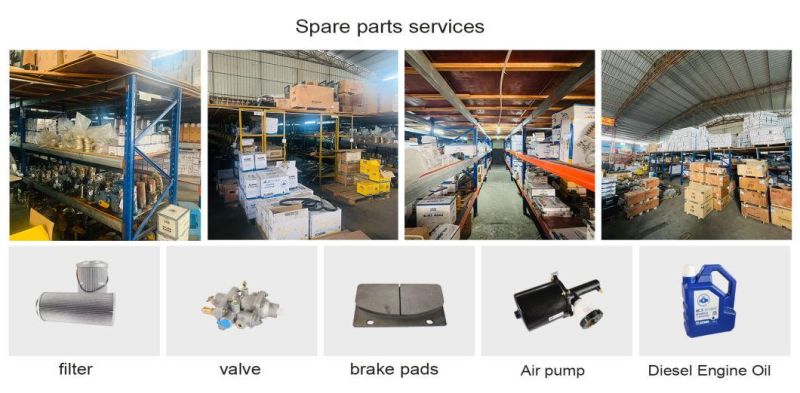

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.
Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale
5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.
Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale

Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale

7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
Made-in-China Construction Machinery 1.8ton Articulate Wheel Loader on Sale
