Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.

Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd.
  • After-sales Service:Provided
  • Warranty:1 Year
  • Type:Pressure Pile Driver
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer
  • Power Source:Diesel

Base Info

  • Model NO.:HX36D-1
  • Motor Power:33kw
  • Noise:With Noise
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Transport Package:Body Machine Without Package
  • Specification:2900*2650*4200mm
  • Trademark:HXING
  • Origin:China
  • HS Code:8430100000
  • Production Capacity:30 Pieces, Month

Description

ItemsParametersPackaging size(L"W"H)(mm)2900×2250×2550Working size(L"W*H)(mm)3500×2200×7500Wheelbase(mm)1950Vehicle weight(kg)2800Engine power(kw)33kw/39KWRated Flow of hydraulic system(L/min)72/90Hydraulic system pressure(Mpa)20Mast stroke(mm)≤2300Piling height(mm)3000Hydraulic hammer typeYC360(borer pole diameter (85mm)Piling effciency≤2500Drilling depth(mm)≤2000Drilling diameter50-300Maximum climbing ability(°)10°(17.6%)Maximum walking speed(km/h)8/11Left and right sliding stroke(mm)≤400Maximum inclination angle of sliding guide frame(°)left30/right8Front and rear adjusting angle of frame(°)forward 10/backward 8Min. ground clearance(mm)140Available capacity of hydraulic tank(L)80Available capacity of diesel tank(L)40

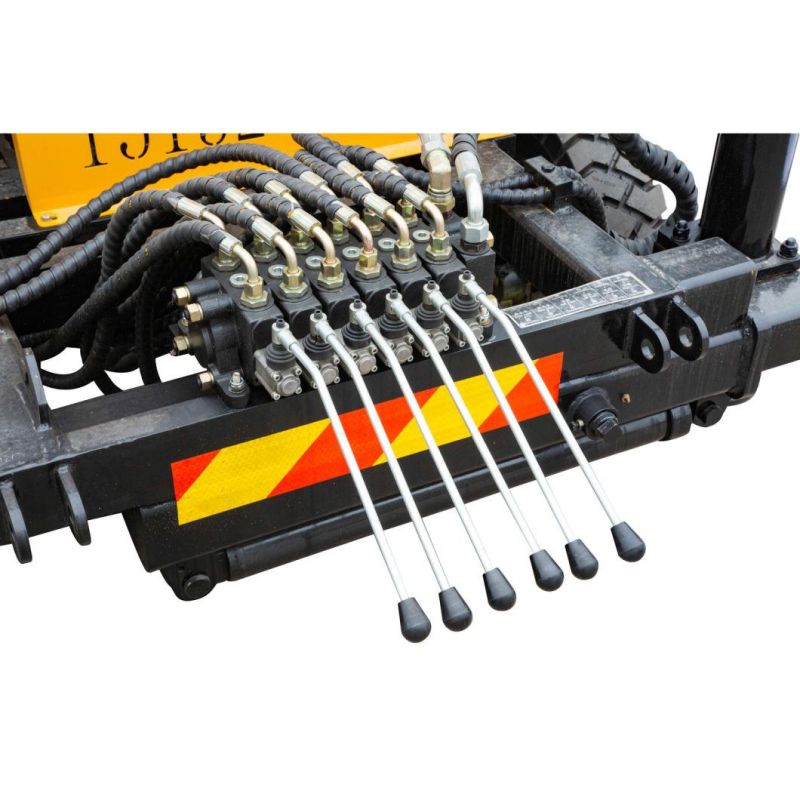

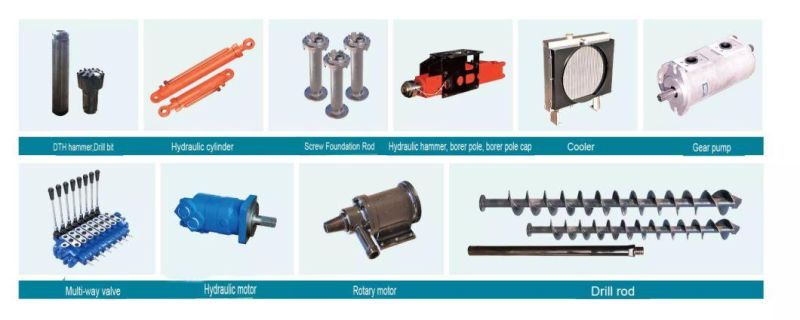

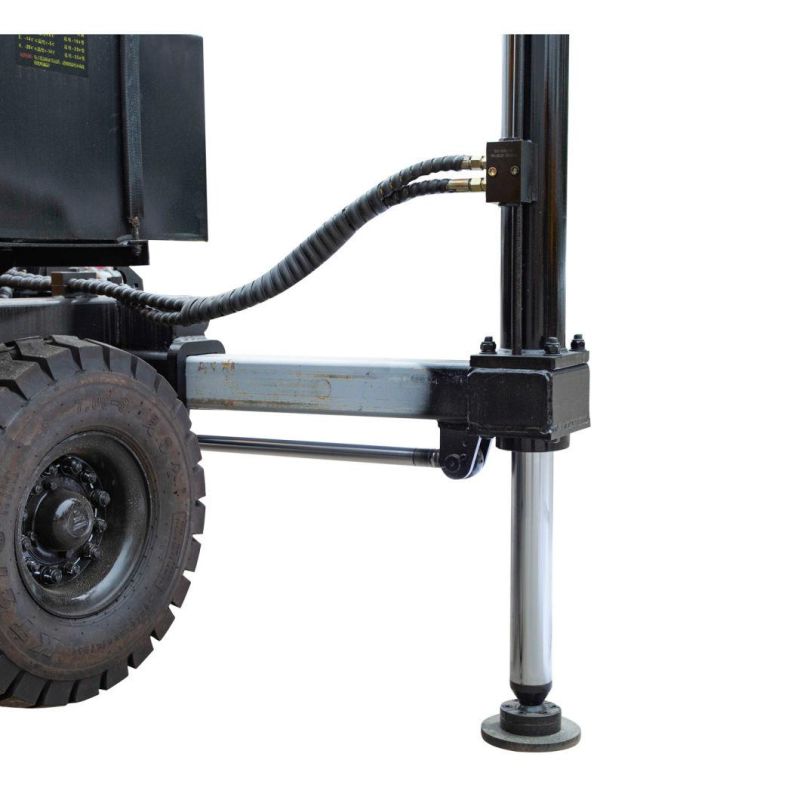

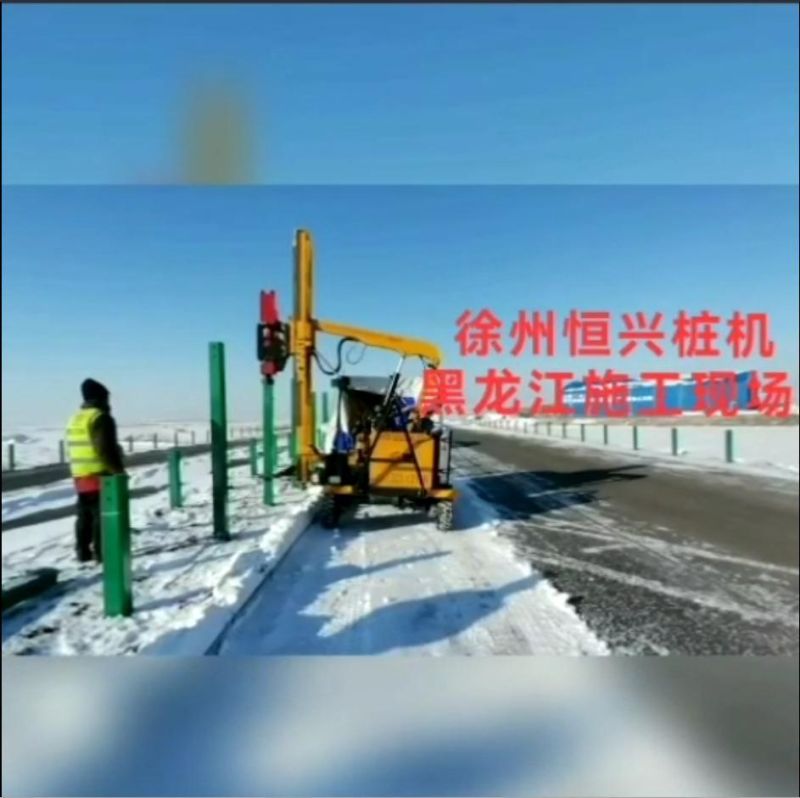

Details Images
Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.


Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.
Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.

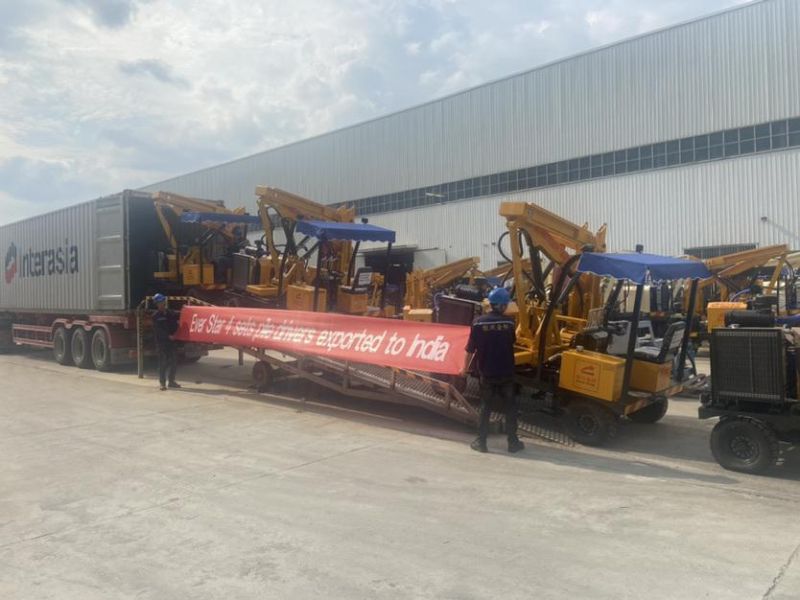

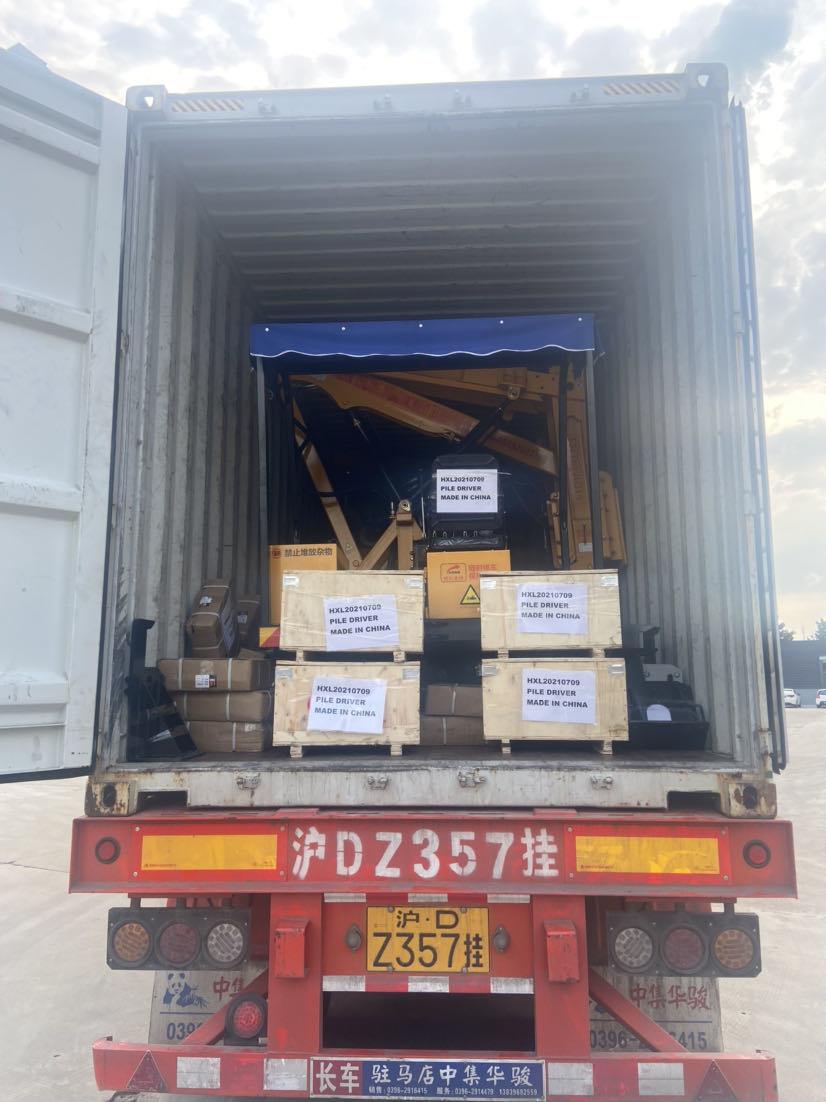

Transportation and Package
Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.
Pilling Equipment Piledriver Highway Barriers Installation Machine Pile Driver.
Pilling equipment piledriver Highway barriers installation machine pile driver.

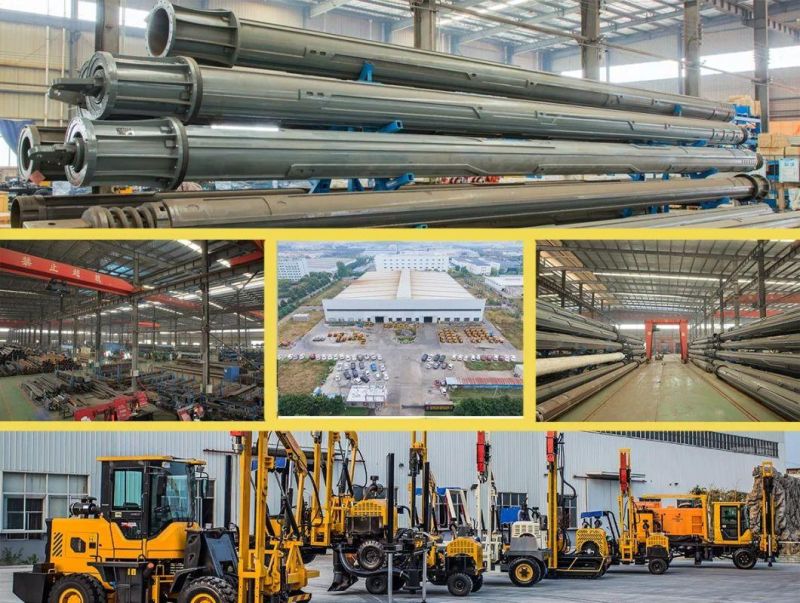

About USXuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.

We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.

We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.

Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as SOILMEC, CMV, MAIT, IMT, ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver.

Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction. we has always followed our survival principle that "strives for the survival by quality, development through reputation", and our service tenet "your demand is our demand". Through continuous technological innovation we try to build our global brand. With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together!
