• Model NO.：XN10
• Size：Small-Scale
• Certification：CE
• Condition：New
• State：New
• Rated Power：8.6kw
• Max. Digging Radius on Ground：2400mm
• Max. Digging Depth：1400mm
• Max. Digging Height：2490mm
• Delivery Time：Within 3-5 Days After Receiving Your Payment
• MOQ：1set
• Transport Package：Container Shipment
• Specification：870kg
• Trademark：better onward
• Origin：China
• HS Code：8429521200
• Production Capacity：200sets,Month

Basic Info.

Model NO. XN10 Size Small-Scale Certification CE Condition New State New Rated Power 8.6kw Max. Digging Radius on Ground 2400mm Max. Digging Depth 1400mm Max. Digging Height 2490mm Delivery Time Within 3-5 Days After Receiving Your Payment MOQ 1set Transport Package Container Shipment Specification 870kg Trademark better onward Origin China HS Code 8429521200 Production Capacity 200sets/Month

Product Description

Description of Mini Excavator

Application
Our excavator with beautiful appearance, high configuration, superior performance, low fuel consumption,wide operating range.
It is suitable for loosing soil of vegetable greenhouse, campus greening of municipal departments, digging the hole for tree planting of fruit-land nurseries, concrete pavement crushing, sand-gravel material mixing, construction work in the narrow place and so on.

Advantages
Using the quick hitch can add the attachment tools like auger drill, hydraulic hammer, loading bucket, gripper and so on.
It can reduce maintenance and operating costs, liberate labor, improve the mechanization, low investment, high return.

Parameter of Mini Excavator

Dimensions	Unit	Specification
Wheel base	mm	770
Track total length	mm	1090
Upper chassis ground clearance	mm	380
Counter weight turning radius	mm	733
Chassis width	mm	946
Track width	mm	180
Track height	mm	320
Transport length	mm	2550
Total height	mm	1330
Operating range	Unit	Specification
Max. digging radius on ground	mm	2400
Max. digging depth	mm	1400
Max. digging height	mm	2490
Max. dumping height	mm	1750
Max. vertical digging depth	mm	1320
Min. turning radius	mm	1190
Max. lifting height of Dozen blade	mm	325
Max. depth of Dozen blade	mm	175
Engine	Unit	Specification
Machine weight	kg	870
Bucket capacity	m³	0.025
Rated Power	kw	8.6

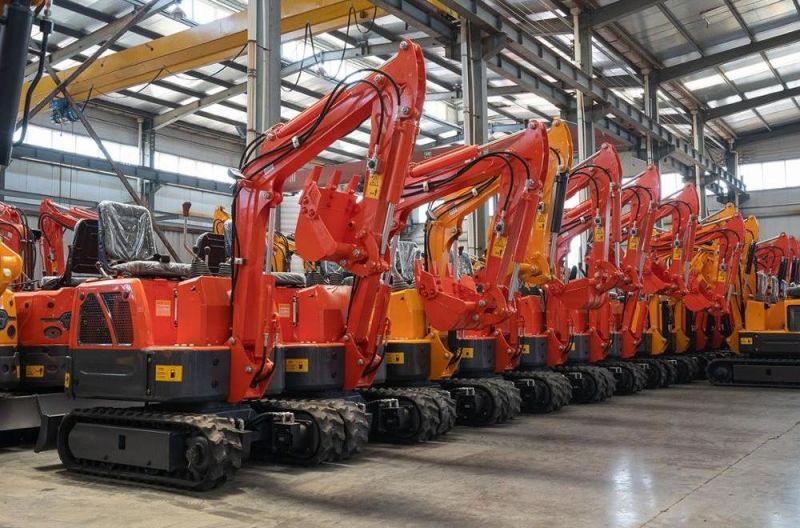

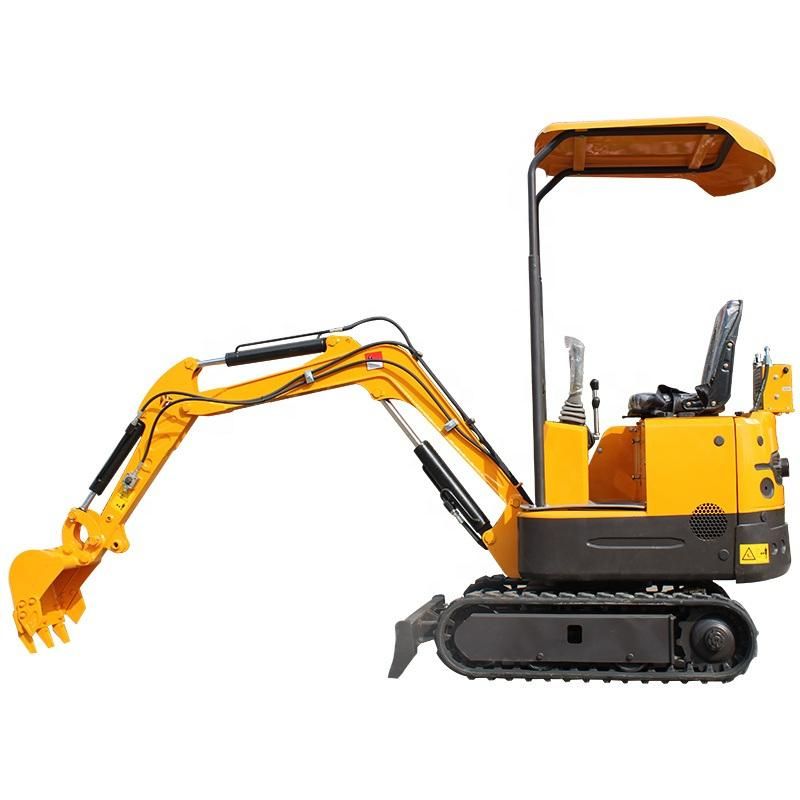

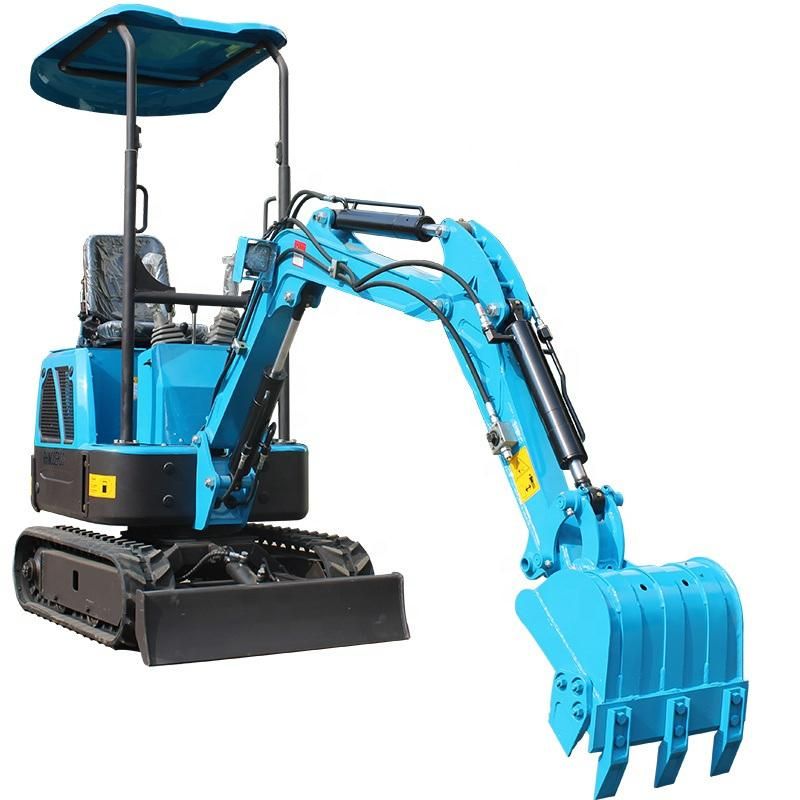

Images of Mini Excavator

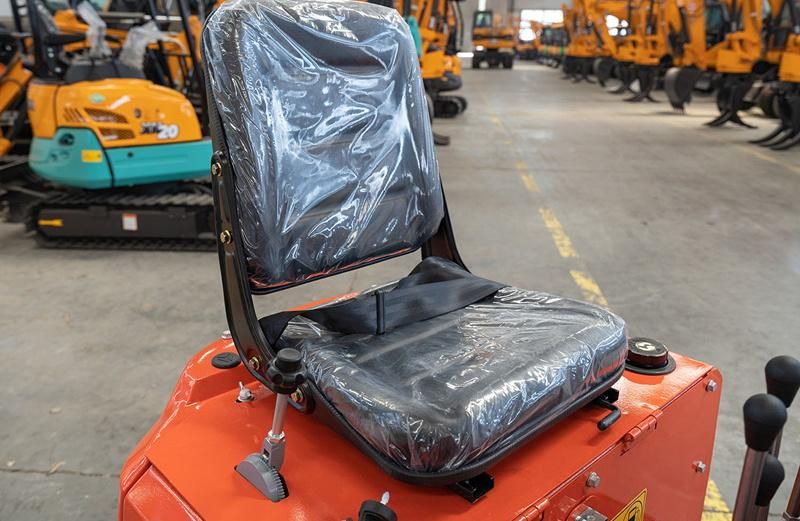

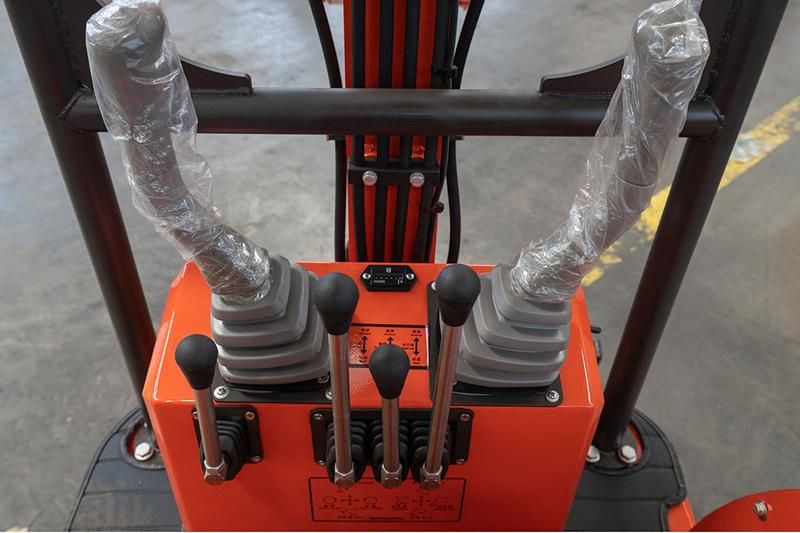

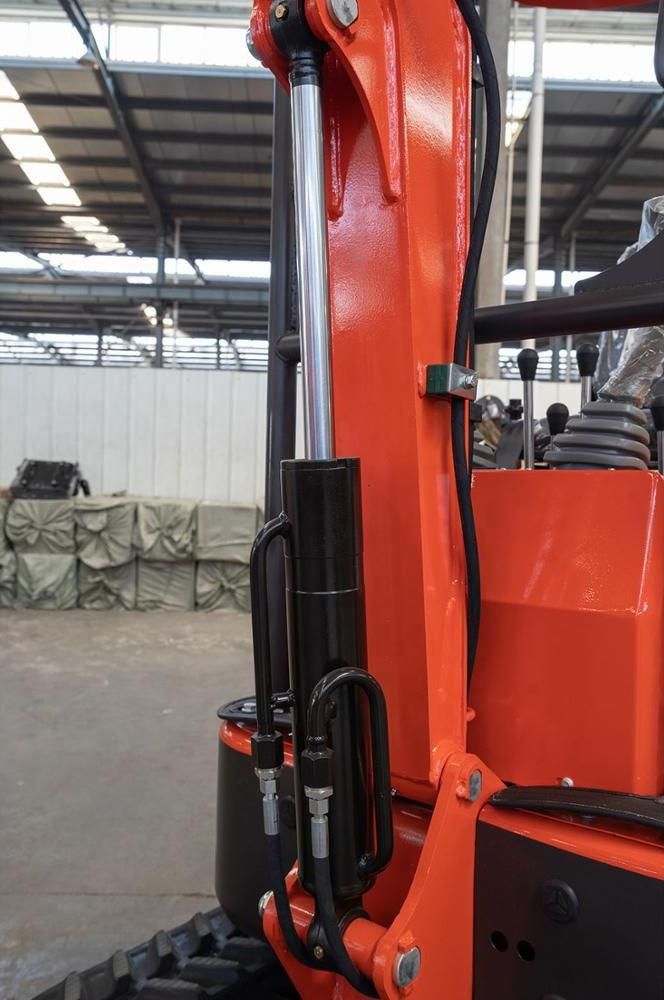

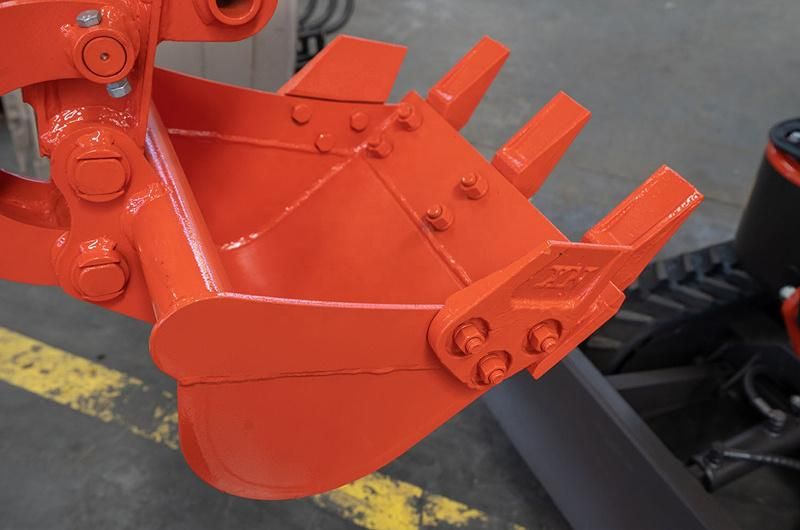

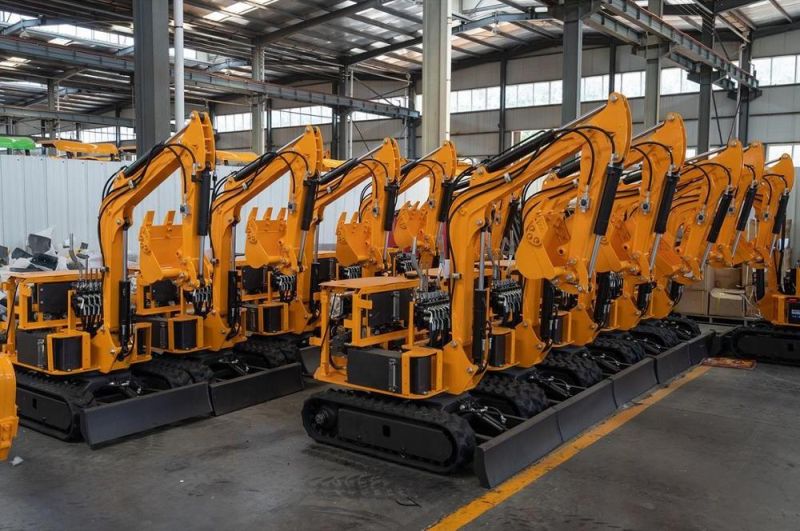

Details picture





Parts

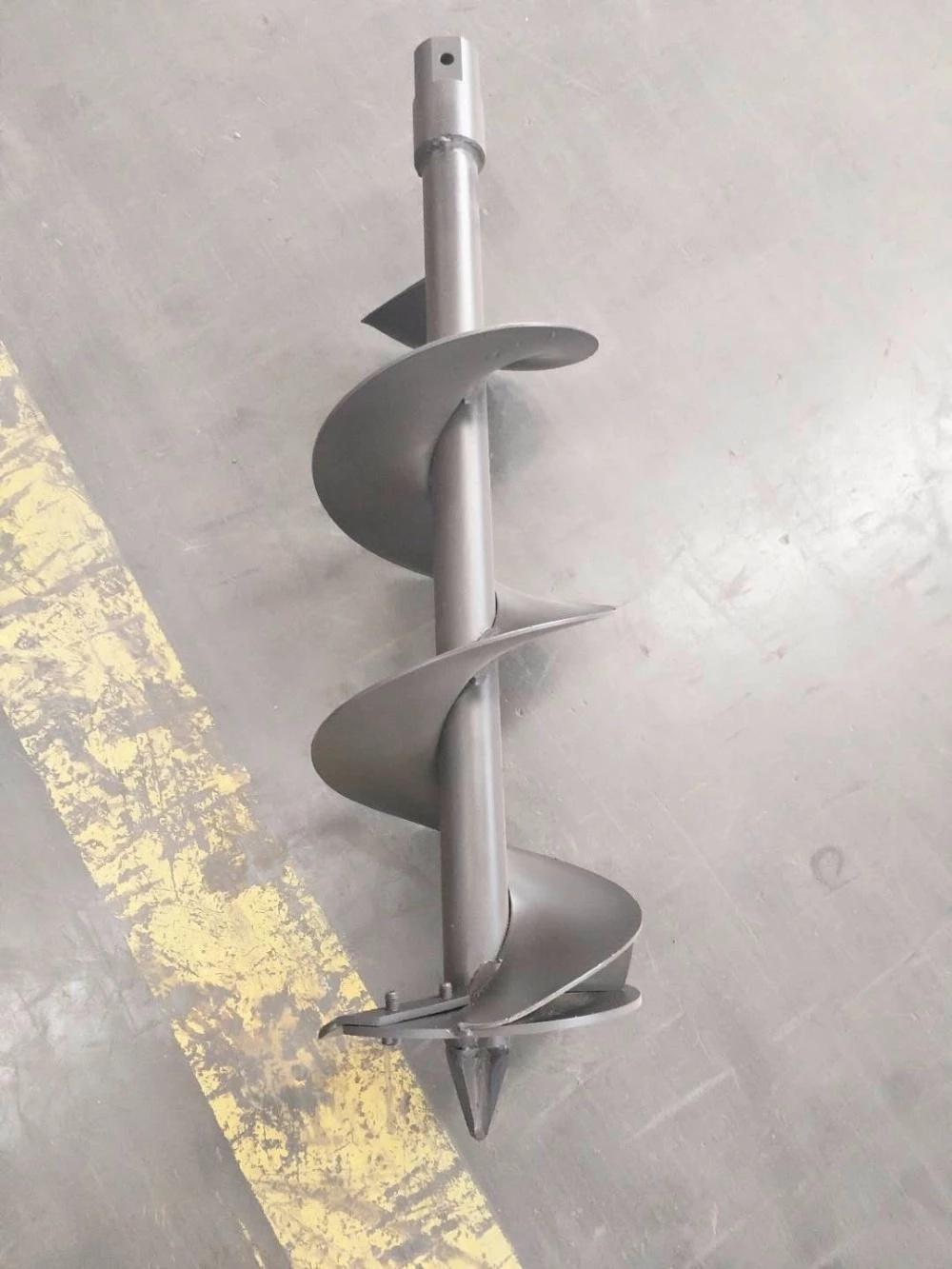

Auger drill

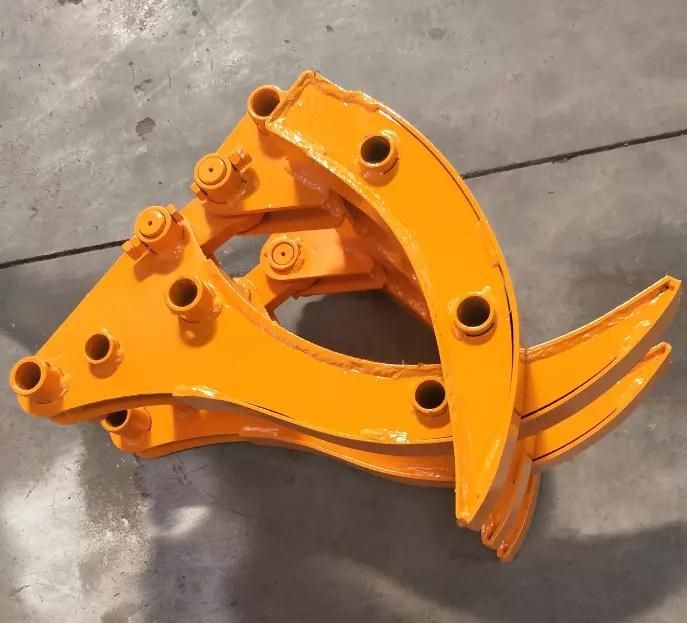

Gripper : timber carry and handle

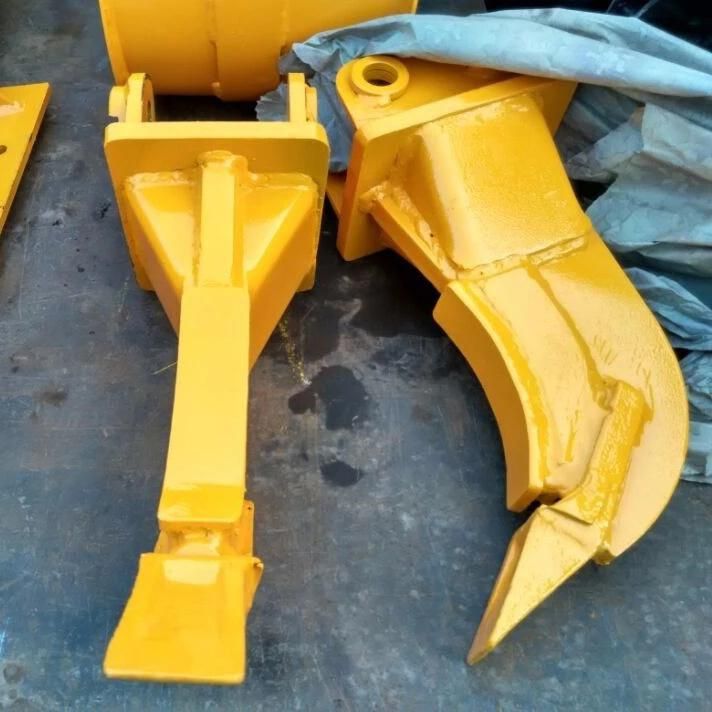

Ripper: split the hard soil

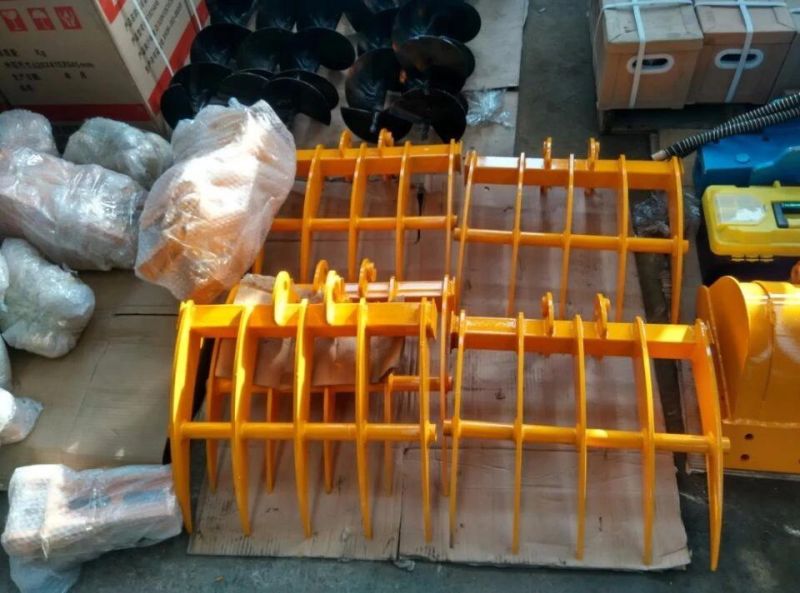

Raker: scarify the soil


We also will provide break hammer, different size bucket according to your requirements.
