• Model NO.：SY10
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：880kg
• Engine Model：Koop Kd192f-1
• Rated Power：7.0kw,3000r,Min
• Max. Flow：18L,Min
• Working Pressure：17MPa
• Fuel Tank Capacity：8.3L
• Hydraulic Oil Tank Capacity：15.3L
• Travel Speed：1.9 Km,L
• Swing Speed：13r,Min
• Arm Digging Fource：4.6kn
• Bucket Digging Force：7.2kn
• Average Grounding Pressure：20kpa
• Lenght：2949mm
• Width：930mm
• Height Top Boom：1095mm
• Transport Package：Nude
• Specification：880kg
• Trademark：SUNYO
• Origin：Linyi, China
• HS Code：8429521200
• Production Capacity：8000,Year

Basic Info.

Model NO. SY10 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight 880kg Engine Model Koop Kd192f-1 Rated Power 7.0kw/3000r/Min Max. Flow 18L/Min Working Pressure 17MPa Fuel Tank Capacity 8.3L Hydraulic Oil Tank Capacity 15.3L Travel Speed 1.9 Km/L Swing Speed 13r/Min Arm Digging Fource 4.6kn Bucket Digging Force 7.2kn Average Grounding Pressure 20kpa Lenght 2949mm Width 930mm Height Top Boom 1095mm Transport Package Nude Specification 880kg Trademark SUNYO Origin Linyi, China HS Code 8429521200 Production Capacity 8000/Year

Product Description

Chinese Brand New

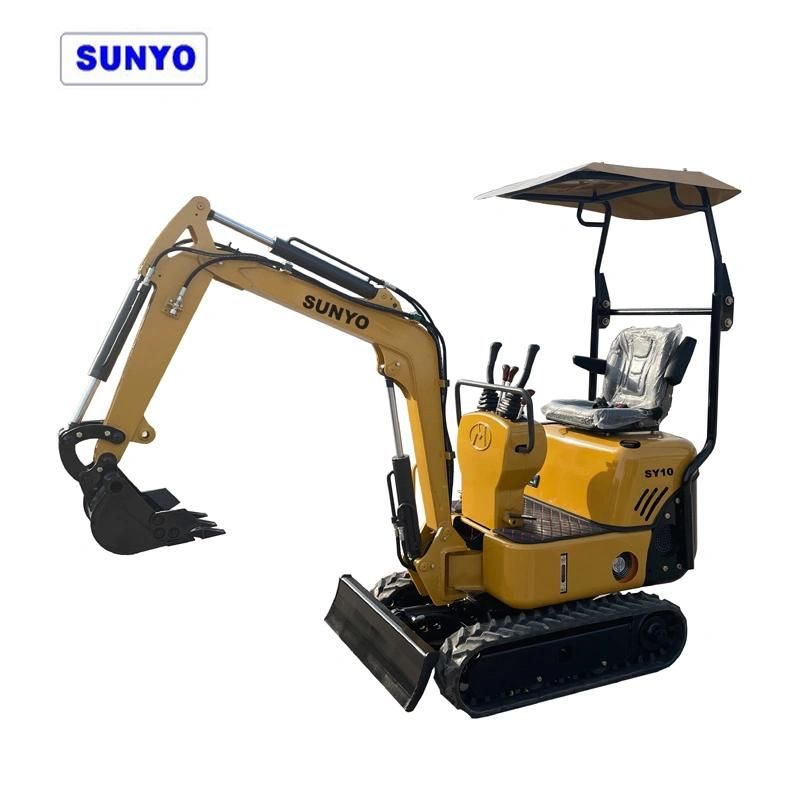

SUNYO Minin Excavator SY10 model with Euro 5 Engine
very Popular model for Customers
The main configuration details are as follows:
Changzhou Kepu Euro 5 engine, fully hydraulically operated; North hydraulic valve, High quality  motor and pump, standard with walking positioning (also called walking valve steel ball positioning); with swing arm; with oil radiator; The engine cover, instrument panel, guard plate, and rear counterweight are all formed by molds. They are made of high-quality metal plates and have good anti-aging performance.

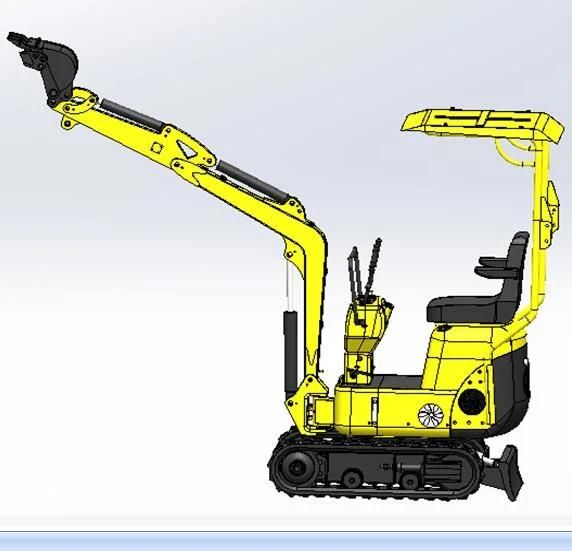

SY10 Mini Excavator Specification:

Operating weight (ton)	880
Bucket capacity (cbm)	0.025
Engine model	KOOP KD192F-1
Rated power (kw/r/min)	7.0/3000
Hydraulic pump model	China Brand
Max.flow (L/min)	18
Working pressure (Mpa)	17
Control valve model	China Brand
Swing motor model	RMR-315
Travel motor model	R6K-310
Fuel tank capacity (L)	8.3
Hydraulic oil tank capacity (L)	15.3
Travel speed (km/h)	1.9
Swing speed (r/min)	13
Max. climbing degree (%)	58
Arm digging force(KN)	4.6
Bucket digging force (KN)	7.2
Average grounding pressure (Kpa)	20

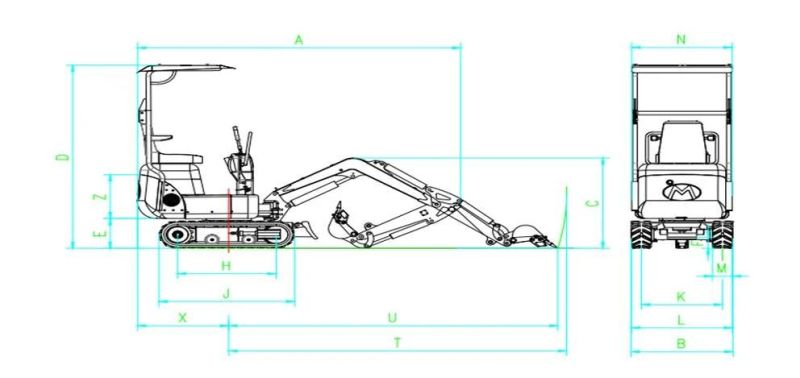

A-Overall length (mm)	2949
B-Overall width (mm)	930
C-Overall height (to top of boom)(mm)	1095
D-Overall height (to top of cab)(mm)	2219
E-Counterweight ground clearance(mm)	362
F-Min. ground clearance (mm)	134
G-Tail swing radius (mm)	834
H-Track Ground Length (mm)	900
J-Track length (mm)	1233
K-Track gauge (mm)	740
L-Track width (mm)	920
M-Track shoe width (mm)	180
N-Turntable width (mm)	917

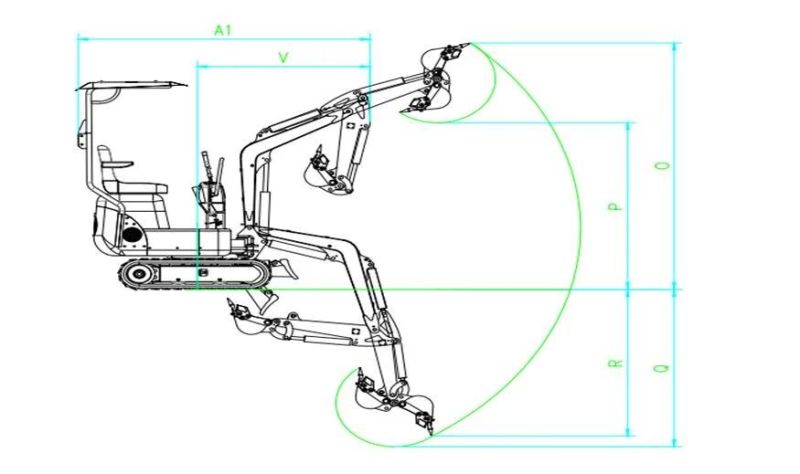

O-Max. digging height (mm)	2637
P-Max. dumping height (mm)	1784
Q-Max. digging depth (mm)	1681
R-Max. vertical wall digging depth (mm)	1569
T-Max. digging reach (mm)	3084
U-Max. digging reach at ground level (mm)	3003
V-Min. swing radius (mm)	1390
X-Distance between center of rotation and tail length (mm)	833
Z-Height of counterweight	530
A1-Ground length (in transportion)(mm)	2348
Arm length (mm)	798
Boom length (mm)	1480

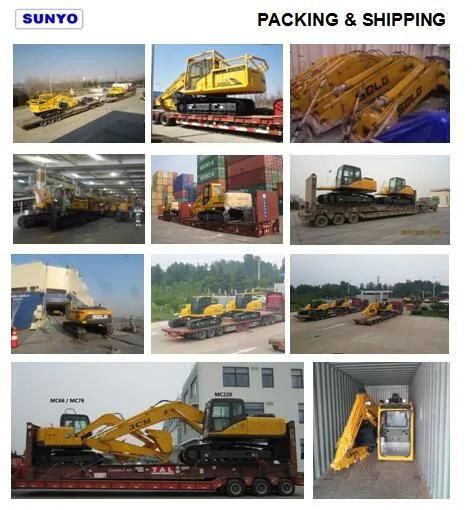

 Packing & Shipping:
We have been engaged in foreign trade for more than 18 years and have very rich experience in shipping. According to the past situation, each of our products is complete and delivered to customers as planned.
Generally, For the SY10 Excavator load into container, it also can load in the bulk ship, or Ro-on/Ro-off ship. it according your requirements

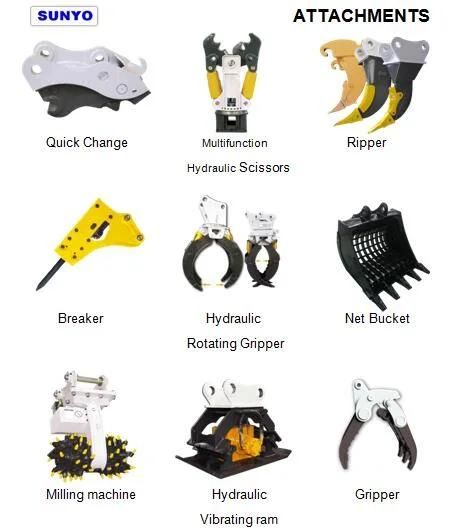

Attachments:
Our backhoe loader can be with some more attachements excapt the standard bucket. for exmple the Quick Change, Ripper,  Hamer,  net bucket, And so on.

Our Service :
Pre-sale service:
To our customers, before you buy the equipments, we hope to understand your needs, according to your machine requirements and your budget; choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in LINYI, China; we will book hotels, air tickets and take you up from air port.

After-sale service:
After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

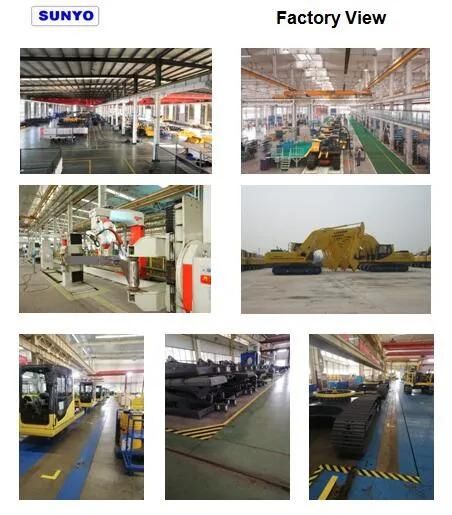

Factory View:

Here show some factory pictures to help you understand our company.

Exhibition:
Here show you some exhibition pictures .

Certificate :




FAQ:
Q1: Which country do you export to?
Asia: Pakistan, Philippines, Thailand, Myanmar, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.
Middle East: Iran, UAE, Jordan, Oman, Saudi Arabia, Syria, etc.
Europe: Poland, Russia, Ukraine, Belarus, Bulgaria, etc.
Africa: South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America: Paraguay, Colombia, Brazil, Peru, Chile, Cuba, Venezuela, etc.
Oceania: Australia, etc.

Q2: What is the proportion of your products export?
90% of our products are exported to all over the world.

Q3: What is the payment term?
We can discuss with you. Consider for long-term customers we are favorable payment terms TT, L/C, west union. It depends on the cooperation time, country and contract value.

Q4: What kind of logistic service do you supply?
FOB, CIF, C&F

Q5: What spare parts can you supply?
All kinds of spare parts of SUNYO JCM, SDLG, SHACMAN,  SHANTUI, YTO,  etc.
