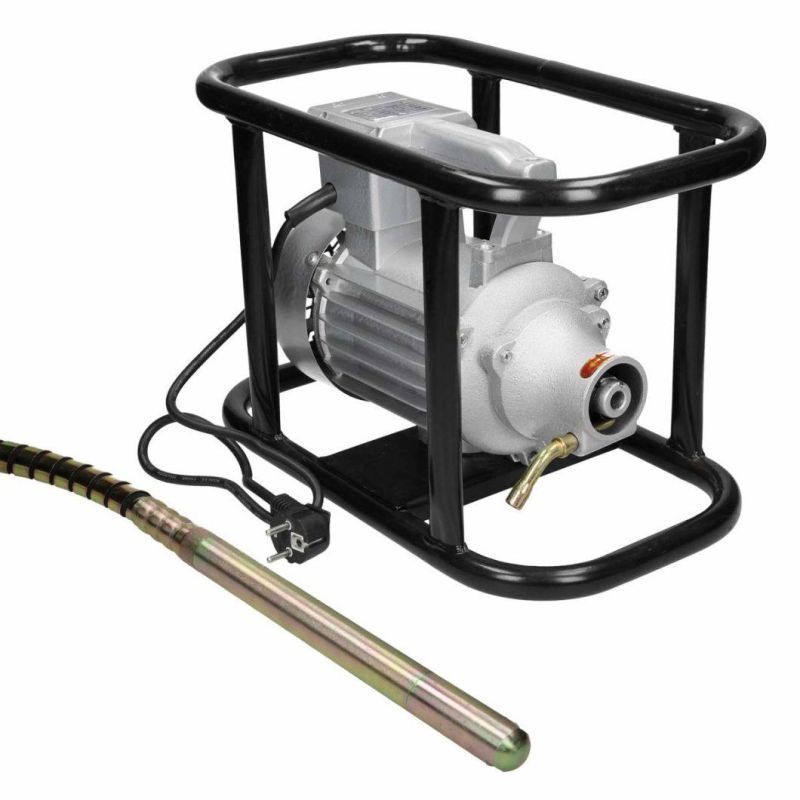

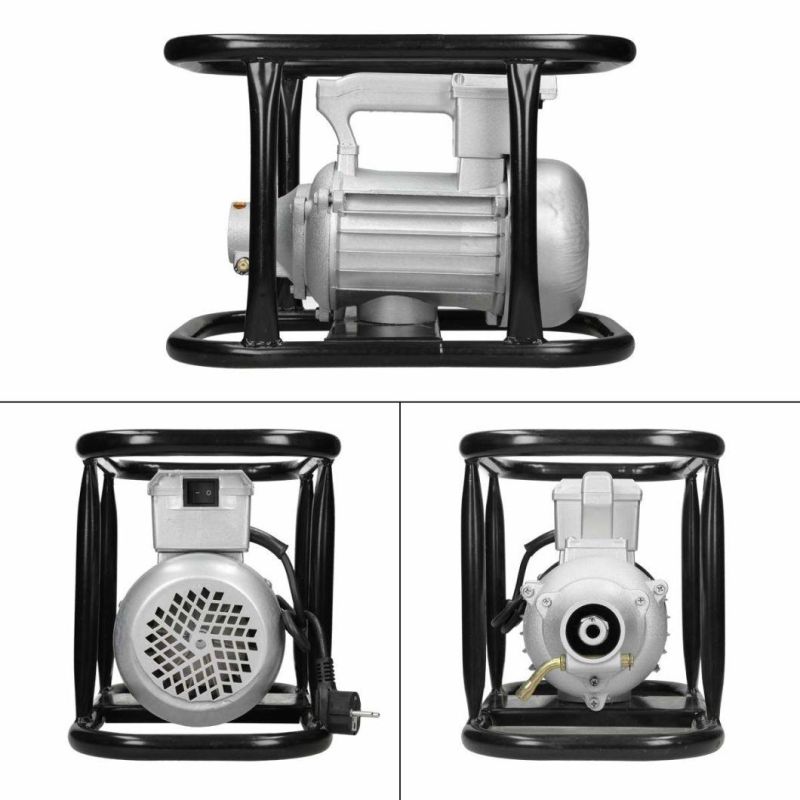

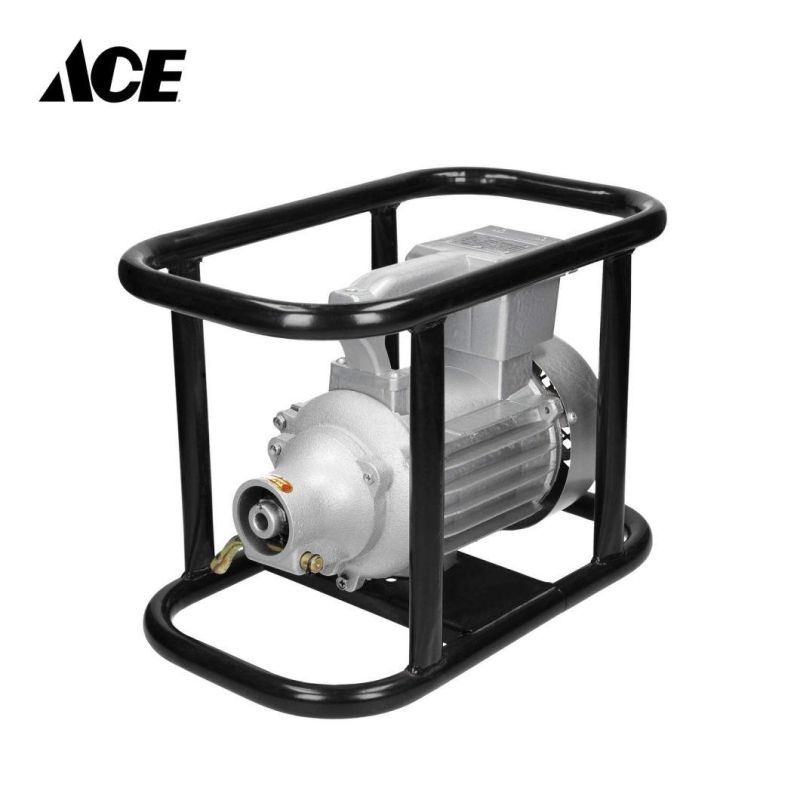

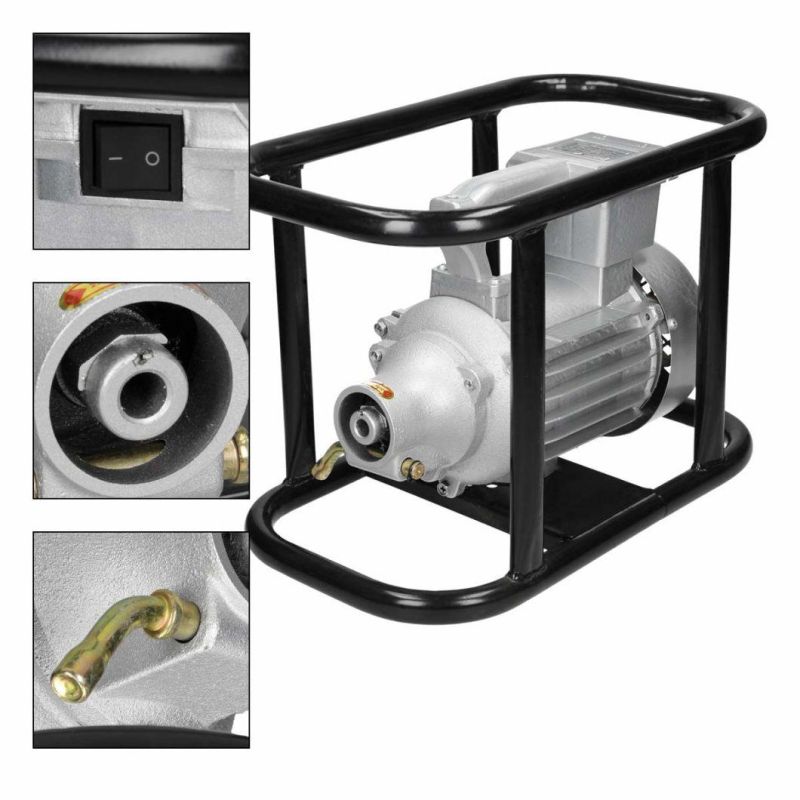

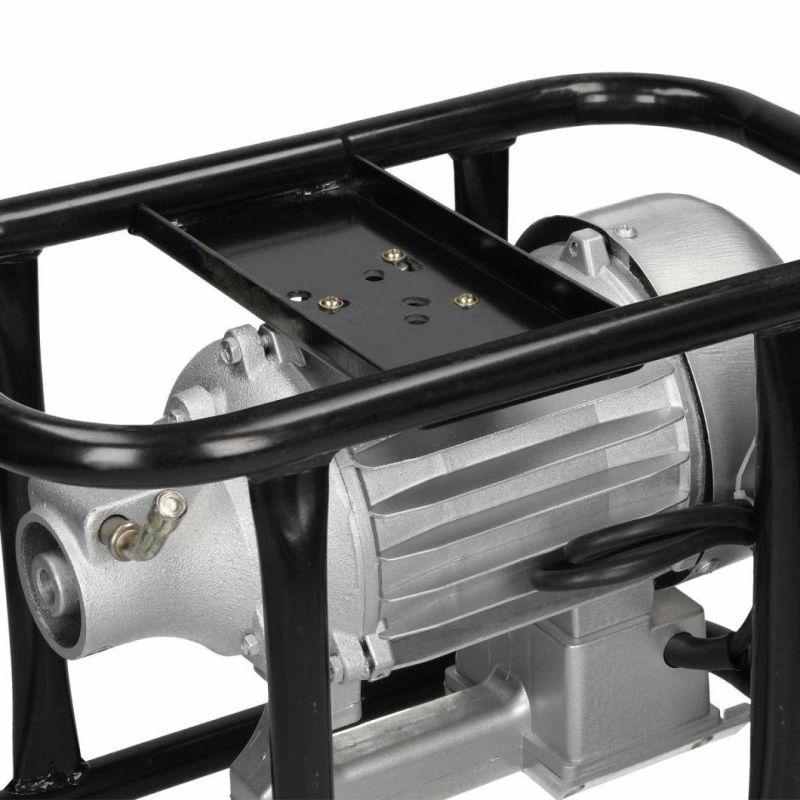

1.1kw 220V Single Phase Electric Portable Concrete Vibrator

Ningbo Ace Machinery Co., Ltd.
  • Type：Concrete Vibrator
  • Shotcrete Type：Wet
  • Machining Process：Assembly
  • Structure：Rotor Type
  • Productivity：60m²,h
  • Feeding Height：1370mm

Base Info

  • Model NO.：ZN50
  • Vibrating Amplitude：0.9mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Gray
  • Product Name：Inserting Concrete Vibrator
  • Power：1.5kw
  • Voltage：380V
  • Net Weight：19kgs
  • Packing Size：44.5*25.5*33cm
  • Transport Package：Carton
  • Specification：1.5kw
  • Trademark：ACE
  • Origin：Ningbo, China
  • HS Code：84306100
  • Production Capacity：300000 PCS,Year

Description

ITEMConcrete vibrator motorTypeType RoundType Japanese / type Dynapac ModelZN50ZN70ZN90ZNS50ZNS70Power, (KW)1.11.52.21.11.5Voltage, (V)380380380220220Frequency, (HZ)5050505050Current, () 3.334.77.8 Workingspeed(RPM)28402840284028402840PACKING SIZE(cm)44*25*3347*25*3347*25*3344*25*3347*25*33Weight (kgs)1719222022
Matched vibrator shaft ItemConcrete vibrator shaftModel¢(mm)ZX35ZX-38ZX-45ZX-50ZX-60ZX-70Diameter of head¢(mm)353845505070Length of headL (mm)380420420480410450Vibrating Frequency(HZ)183185185200200200Vibrating Ampitude(mm)0.9111.21.151.151.35Dia of flexiable hoseD(mm)303032363636Diaof flexiable shaftD(mm)101010131313Weight (6mtr)(kg)141516202124packing sizeCM75*75*5.5
