• Model NO.：YD320
• Condition：New
• Color：Yellow
• Engine Model：Ntaa855-C360s20
• Engine：257kw
• Dimension：6880X4130X3725mm
• Earth Radio：105kpa
• Blade Width X Height：4130X1590mm
• Transport Package：Nude Packing, Roro
• Specification：37200kg operating weight
• Trademark：SINOMACH
• Origin：Henan, China
• HS Code：8429199000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. YD320 Condition New Color Yellow Engine Model Ntaa855-C360s20 Engine 257kw Dimension 6880X4130X3725mm Earth Radio 105kpa Blade Width X Height 4130X1590mm Transport Package Nude Packing, Roro Specification 37200kg operating weight Trademark SINOMACH Origin Henan, China HS Code 8429199000 Production Capacity 1000 Sets/Year

Product Description

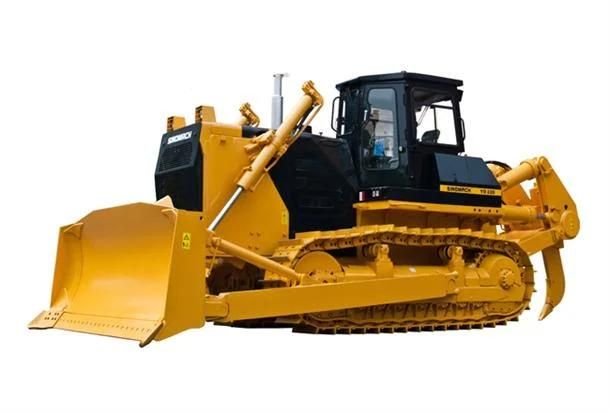

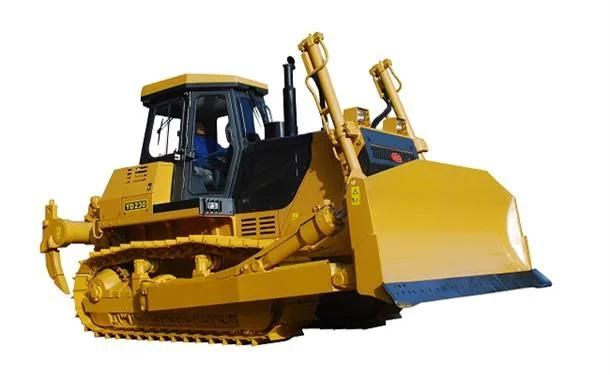

SINOMACH YD320 Crawler Bulldozer

This machine is semi-rigid suspended, hydrodynamic-drived, hydraulically servo-controlled crawler bulldozer. The crawler bulldozer is equipped with a Cummins supercharged engine which features large power reserve, low fuel consumption and low emission, and the ergonomic-designed control system is easy and convenient to operation. Due to superior power performance, high efficiency and easy operation, our crawler bulldozers can be extensively used in desert, oil field, el


• Cummins national emission standard II engine is used, which has large output torque and low fuel consumption. It is reliable, energy-saving and environment-friendly.
• Single-stage single-phase three element hydraulic torque converter is used. The vehicle does not have to be stopped shifting. The work efficiency is improved.
• The Shanghai Photroland air filter and prefilter device are used, which extend service life of engine and increase the maintenance interval.
• Engine muffler cancel ejector device, increase exhaust given it, reduce the exhaust pressure, and then reduce the fuel consumption.
• Adopt sealed measures before and after heat isolation cooler air, which improves the cooler to come loose hot effect.
• Air conditioning cooler is under the engine hood. It can cool with cooling air of the engine and improve the cooling effect.
• Oil, water and other daily maintenance point humanized decorate, inspection, maintenance is convenient.
• The machine adopts advanced hydraulic drive and hydraulic control technology. It has advanced and reasonable structure, portable and flexible control, and reliable quality.



	Model	Unit	YD320
	Total weight	kg	37200
	Engine model		NTAA855-C360S20
	Engine rated power	kw	257
	Earth radio	kPa	105
	Overall dimension(L/W/H)	mm	6880×4130×3725
	Dozer blade(W/H)	mm	4130×1590
	Forward I-III travel speed	kw/h	3.6-11.5
	Backward I-III travel speed	kw/h	4.4-13.5
	Traction equipment/scarifier(Optional)		Fixed/1-teeth
