• Model NO.：Se60
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Kubota V2607t
• Rated Power：36kw,2000rpm
• Displacement：2.615L
• Operating Weight：5960kg
• Max. Digging Height：5785mm
• Max. Dumping Height：4075mm
• Max. Digging Depth：3850mm
• Max. Digging Reach：6200mm
• Bucket Capacity 1：0.22cbm
• Travel Speed：2.6,4km,H
• Gradeability：35
• Fuel Tank：95L
• Transport Package：Nude
• Specification：5855*1880*2610mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：200units,Month

SE60Engine Engine modelKubota V2607TRated power36kw/2000rpmMax.torque206.9N·M/1100~1500rpmDisplacement2.615   LEmission standardTier   3Operation Range Operating weight5960   kgMax. digging height5785   mmMax. dumping height4075   mmMax. digging depth3850   mmMax. vertical digging depth3000   mmMax. digging reach6200   mmMin. swing radius2395   mmDimensions Overall length5855   mmOverall width1880   mmOverall height2610   mmTail swing radius1655   mmMin. ground clearance300   mmCounterweight ground clearance710   mmUndercarriage/Working Device Std. track shoe width400   mmBucket capacity0.22   m³Carrier roller(per side)1Track roller(per side)5Track gauge1480   mmBoom length3000   mmArm length1600   mmPerformance Travel speed2.6/4   km/hGradeability35°Ground pressure33   kPaTractive force50   kNBucket digging force48   kNArm digging force32.3   kNService Refill Capacities Fuel tank95   LEngine coolant8.5   LEngine oil9   LHydraulic tank74/110   LHydraulic System TypeLoad   Sensing Hydraulics with Variable Displacement Piston PumpPump flow144L/minSwing System Swing speed0-11r/minThe parameters are for reference only, please   contact your sales representative for details.

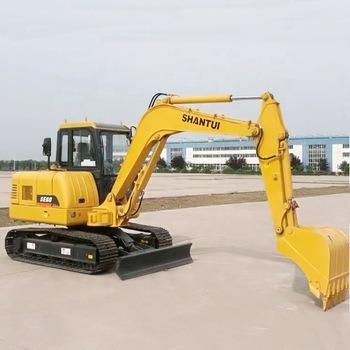

Product Pictures
