• Model NO.：320x90x52
• Width：320mm
• Pitch Length：90mm
• Links：52
• Total Length：4680mm
• Weight for Rubber Tracks：147.16kg,PC
• Transport Package：Kraft Paper, Wooden Case, Pallet
• Specification：320*90*52
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：2000 Pieces,Month

Basic Info.

Model NO. 320x90x52 Width 320mm Pitch Length 90mm Links 52 Total Length 4680mm Weight for Rubber Tracks 147.16kg/PC Transport Package Kraft Paper, Wooden Case, Pallet Specification 320*90*52 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 2000 Pieces/Month

Product Description

Rubber Track for YM C20R Excavator(320-90-52)

Basic info:
Size: 320x90x52
Net weight:147.16kg/pc
Material: rubber and steel
Warranty: 1 year under normal use
Application for:  Yanmar C20R

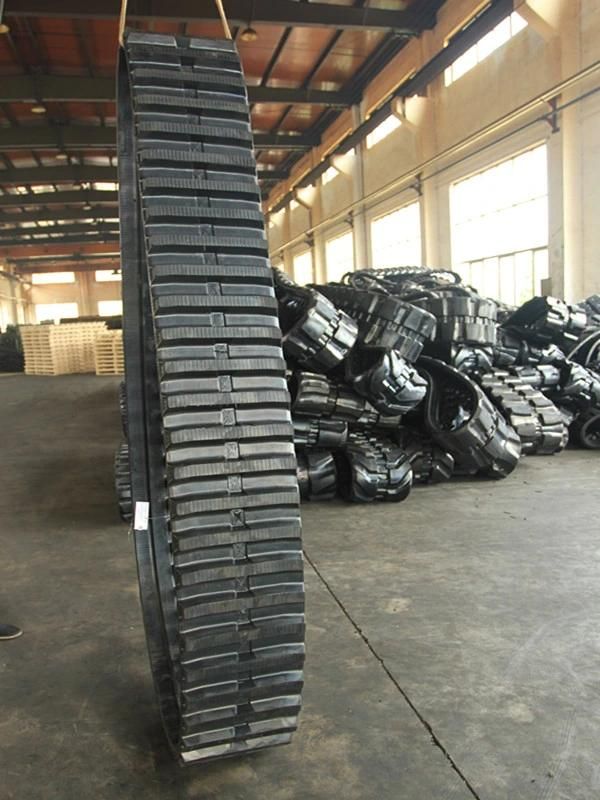

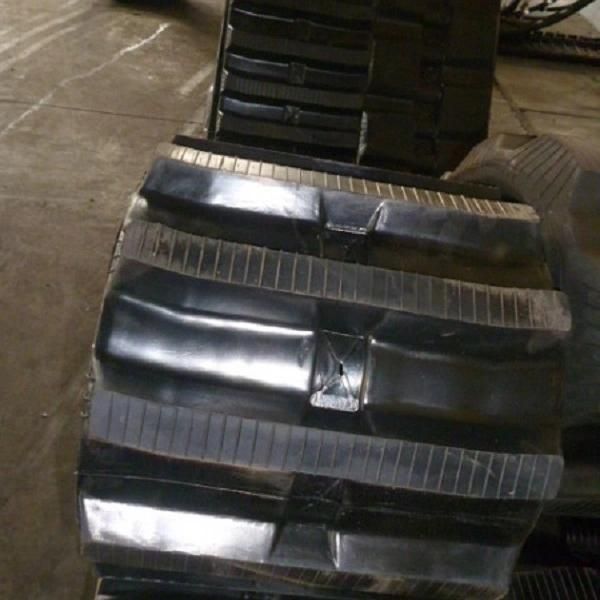

Rubber track pictures:

More parameters:

Size	Weight for Each Link	Size	Weight for Each Link	Size	Weight for Each Link
130*72	0.36	WD300*72	1.459	400*144	7.75
150*60	0.52	B300*84	2.88	400*144Y	7.41
150*72	0.55	T300*86	3.13	420*100	5.3
170*60	0.48	300*109KW	3.38	450*71	4.45
180*60	0.56	K300*109	3.56	DW450*71	4.82
180*72	0.64	300*109N	3.32	450*73.5	4.57
180*72K	0.87	300*109W	3.21	450*76	5.27
H180*72	0.77	320*52.5	1.69	450*81.5	5.24
190*60	0.59	320*54	1.81	450*81N	5.19
190*60	0.59	B320*84	2.95	450*81W	5.02
190*72	0.72	B320*86	2.99	450*83.5	5.47
200*72	0.84	B320*86SB	2.99	450*83.5Y	5.67
200*72K	1.07	B320*86C	3.01	450*84	4.22
230*48	0.87	B320*86Z	3.12	B450*86	4.33
230*48K	1.06	B320*86CM	3.01	B450*86SB	4.3
230*72	1.09	B320*86R	2.99	B450*86C	4.31
230*72K	1.34	T320*86	3.22	B450*86Z	4.51
230*96	1.77	T320*86MB	3.3	B450*86CM	4.37
230*101	1.92	T320*86SB	3.27	B450*86R	4.3
250*47	1.11	T320*86C	3.25	450*90	4.07
250*48.5	1.13	T320*86Z	3.53	KU450*90	3.9
250*52.5	1.04	320*90	2.85	450*110	6.9
250*52.5K	1.31	320*100	2.67	T450*100MB	5.3
250*72	1.17	320*100W	3.01	T450*100	5.09
B250*72	1.03	320*106	3.63	T450*100SB	5.16
250*96	2.21	350*52.5	1.85	T450*100C	5.2
250*109	2.39	350*54.5	2.31	T450*100Z	5.55
260*55.5	1.48	350*56	2.05	450*163	10.47
260*96	1.91	350*75.5	3.58	485*92W	7.62
260*109	2.16	350*90	1.85	500*71	7.5
280*72	1.43	350*100	3.69	500*90	5.38
280*106	3.05	350*108	3.92	500*92	7.81
300*52.5KB	1.67	350*109	4.12	500*92W	8.6
300*52.5KW	1.71	370*107	4.68	500*100	6.34
300*52.5N	1.44	400*72.5KB	3.44	500*146	9.97
300*52.5W	1.56	400*72.5KW	3.72	600*100	8.3
JD300*52.5N	1.54	400*72.5N	3.48	600*125	10.39
K300*52.5	1.72	400*72.5W	3.85	650*110	13.34
KB300*52.5N	1.55	400*72.5Y	3.62	650*120	13.75
300*53	1.81	400*74	3.4	650*125	15.8
300*55	1.88	400*75.5	4.09	700*100	10.9
300*55.5	1.95	400*86	4.14	700*125	14.29
300*71	3.31	400*90	2.22	750*150	21.34
300*72	1.77	400*107	4.95	800*125	19.14
		400*142	7.12	K800*150	21.55
ASV TRACK				M800*150	20.05
280*102*37	1.36	PAVER TRACK		900*150	31.23
380*102*42	1.9	356*152.4*46	4.81	1000*150	33.3
460*102*51	2.41	483*152.4*52	6.07
460*102*56	2.49	460*225*36	7.79	SPECIAL TRACK
460*102C*51	2.44			160*87.63*28	0.41
510*102*51	2.6			240*87.63*28	0.51

The feature of rubber tracks:


(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.



(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.



(3). High speed

 Rubber track permit machines to travel at a higher speed than steel tracks.



(4). Less vibration

 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.



(5). Low ground pressure

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .



(6). Superior traction

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.



Company
Shanghai PuYi Industrial Co., Ltd is a leading manufacturer of rubber tracks with superior quality guaranteed and competitive price provided. we have a strong team of research and development, expert design, strict quality control, and professional service.
