• Model NO.：180*72*39
• Pitch：72mm
• Links：39
• Length：2808mm
• Weight：24.96kg
• Warranty：12months

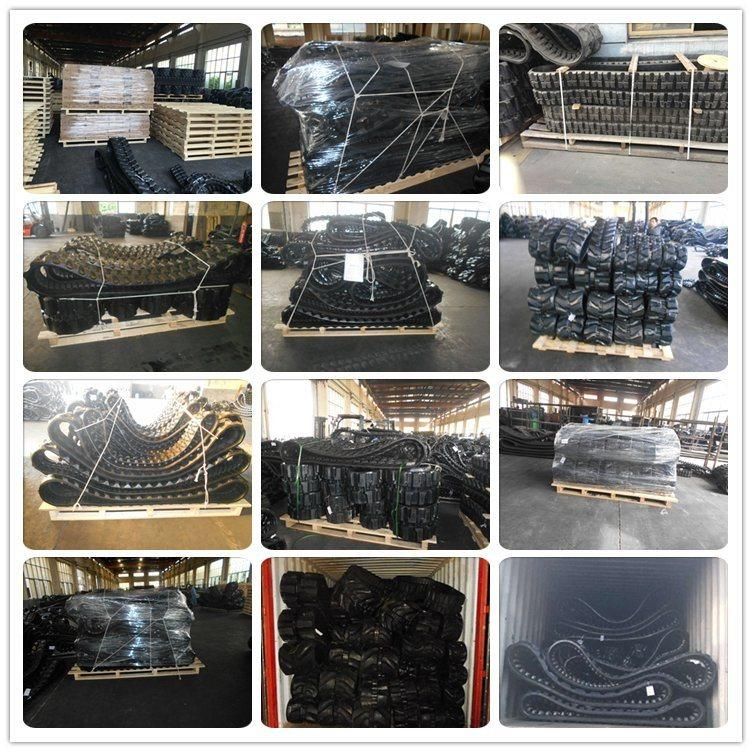

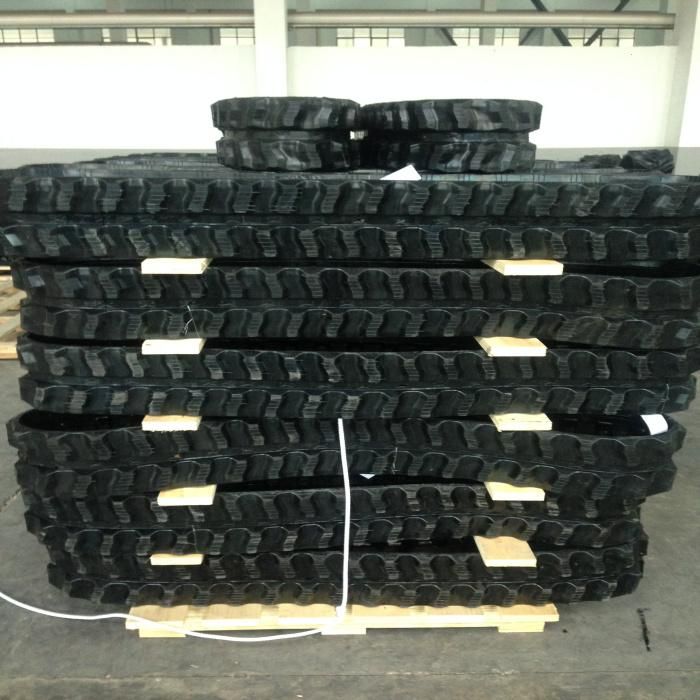

• Transport Package：Wood Pallet or Bare Packaging
• Specification：180*72*39
• Trademark：puyi
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. 180*72*39 Pitch 72mm Links 39 Length 2808mm Weight 24.96kg Warranty 12months Transport Package Wood Pallet or Bare Packaging Specification 180*72*39 Trademark puyi Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 Pieces/Month

Product Description

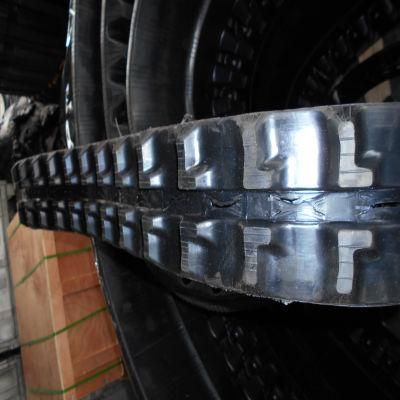

Rubber Track (180 X 72 X 39) for Mt50 Mini Excavator



Commodity: Excavator Track(180*72*39)

Size:Width180*Pitch72*Links39

Weight:24.96kg

Link and lenght can be adjustable

Warranty:Guarantee one year under normal use

Appliciation:mainly used in excavator and other model number can be used in

snowblower,snowmobile,robot,wheelchair,track loaders,pitch paver,

agricultural,harvest,dumpers...etc.


Characteristics of rubber track:

   1).Less damage to the ground surface

   2).Low noise

   3).High running speed

   4).Less vibration;

   5).Low ground contack specific pressure

   6).High tractive force

   7).Light weight

   8).Easy to change



The introduction to the parameter(Pitch,Pitch,Link) of rubber track,please see the below:
<

Size	Weight for Each Link	Size	Weight for Each Link	Size	Weight for Each Link
130*72	0.36	WD300*72	1.459	400*144	7.75
150*60	0.52	B300*84	2.88	400*144Y	7.41
150*72	0.55	T300*86	3.13	420*100	5.3
170*60	0.48	300*109KW	3.38	450*71	4.45
180*60	0.56	K300*109	3.56	DW450*71	4.82
180*72	0.64	300*109N	3.32	450*73.5	4.57
180*72K	0.87	300*109W	3.21	450*76	5.27
H180*72	0.77	320*52.5	1.69	450*81.5	5.24
190*60	0.59	320*54	1.81	450*81N	5.19
190*60	0.59	B320*84	2.95	450*81W	5.02
190*72	0.72	B320*86	2.99	450*83.5	5.47
200*72	0.84	B320*86SB	2.99	450*83.5Y	5.67
200*72K	1.07	B320*86C	3.01	450*84	4.22
230*48	0.87	B320*86Z	3.12	B450*86	4.33
230*48K	1.06	B320*86CM	3.01	B450*86SB	4.3
230*72	1.09	B320*86R	2.99	B450*86C	4.31
230*72K	1.34	T320*86	3.22	B450*86Z	4.51
230*96	1.77	T320*86MB	3.3	B450*86CM	4.37
230*101	1.92	T320*86SB	3.27	B450*86R	4.3
250*47	1.11	T320*86C	3.25	450*90	4.07
250*48.5	1.13	T320*86Z	3.53	KU450*90	3.9
250*52.5	1.04	320*90	2.85	450*110	6.9
250*52.5K	1.31	320*100	2.67	T450*100MB	5.3
250*72	1.17	320*100W	3.01	T450*100	5.09
B250*72	1.03	320*106	3.63	T450*100SB	5.16
250*96	2.21	350*52.5	1.85	T450*100C	5.2
250*109	2.39	350*54.5	2.31	T450*100Z	5.55
260*55.5	1.48	350*56	2.05	450*163	10.47
260*96	1.91	350*75.5	3.58	485*92W	7.62
260*109	2.16	350*90	1.85	500*71	7.5
280*72	1.43	350*100	3.69	500*90	5.38
280*106	3.05	350*108	3.92	500*92	7.81
300*52.5KB	1.67	350*109	4.12	500*92W	8.6
300*52.5KW	1.71	370*107	4.68	500*100	6.34
300*52.5N	1.44	400*72.5KB	3.44	500*146	9.97
300*52.5W	1.56	400*72.5KW	3.72	600*100	8.3
JD300*52.5N	1.54	400*72.5N	3.48	600*125	10.39
K300*52.5	1.72	400*72.5W	3.85	650*110	13.34
KB300*52.5N	1.55	400*72.5Y	3.62	650*120	13.75
300*53	1.81	400*74	3.4	650*125	15.8
300*55	1.88	400*75.5	4.09	700*100	10.9
300*55.5	1.95	400*86	4.14	700*125	14.29
300*71	3.31	400*90	2.22	750*150	21.34
300*72	1.77	400*107	4.95	800*125	19.14
		400*142	7.12	K800*150	21.55
ASV TRACK				M800*150	20.05
280*102*37	1.36	PAVER TRACK		900*150	31.23
380*102*42	1.9	356*152.4*46	4.81	1000*150	33.3
460*102*51	2.41	483*152.4*52	6.07
460*102*56	2.49	460*225*36	7.79	SPECIAL TRACK
460*102C*51	2.44			160*87.63*28	0.41
510*102*51	2.6			240*87.63*28	0.51

About us:

We supply Rubber Tracks,Rubber Tracks for Truck,Small Rubber Track,

Mini Asphalt Paver Rubber track,Rubber Track for Harvesting Excvavtor,

Rubber Track for Skid Steer Loader,Rubber Track for snowmobile,

Rubber Track for snowblower,Rubber track for robot,etc.
