• Productivity：35m²,h
• Feeding Height：1380mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Customized
• OEM：Accept
• Drive Type：Wheel
• Spare Parts：According to Customer Requirements
• Driving Mode：Non-Pushing
• Engine：Hua Dong 4106
• Engine Power：70kw
• Working Form：Hydraulic Piston
• Largest Aggregate Size：30mm
• Dimension：4300*1700*1700mm
• Machine Weight：2700kg
• Theoretical Max. Conveying Distance：Vertical 25-100m Horizontal 75-240m
• Max.Outlet Pressure：11MPa
• Swing Cylinder：Double
• Transport Package：Wooden Case,Fob
• Specification：Multiple models optional
• Trademark：TOROS
• Origin：China-Shandong
• HS Code：8413400000
• Production Capacity：200,Month

Basic Info.

Productivity 35m²/h Feeding Height 1380mm Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color Customized OEM Accept Drive Type Wheel Spare Parts According to Customer Requirements Driving Mode Non-Pushing Engine Hua Dong 4106 Engine Power 70kw Working Form Hydraulic Piston Largest Aggregate Size 30mm Dimension 4300*1700*1700mm Machine Weight 2700kg Theoretical Max. Conveying Distance Vertical 25-100m Horizontal 75-240m Max.Outlet Pressure 11MPa Swing Cylinder Double Transport Package Wooden Case/Fob Specification Multiple models optional Trademark TOROS Origin China-Shandong HS Code 8413400000 Production Capacity 200/Month

Product Description

1.who are we?
SHANDONG TOROS  Machinery Technology Co., Ltd. is a modern international company engaged in construction machinery.
TOROS has developed rapidly by advanced technology and modern management.CE and ISO certificates areavailable.The strict quality control system and high quality production lines have developed the high quality products and fast delivery service. We have built one professional after-sales team that can server the customer well at the first time.
2.What are the advantages of our Concrete pump?
Warranty period: within one year after delivery / 2000 working hours, if there is any quality problem, we will provide you with accessories for free.
Provide customized services, your exclusive shopping agent, personalized purchase, you are born different from others!
3. What do you just need to do?
contact us, tell us your needs, and provide your WhatsApp/email. The exclusive consultant will contact you as soon as possible to provide you with preferential prices for customized products you like, without wasting your time!
Product Advantages

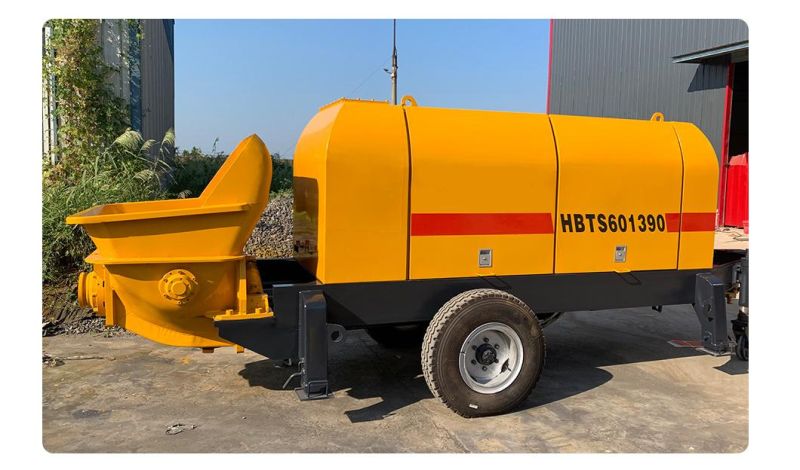

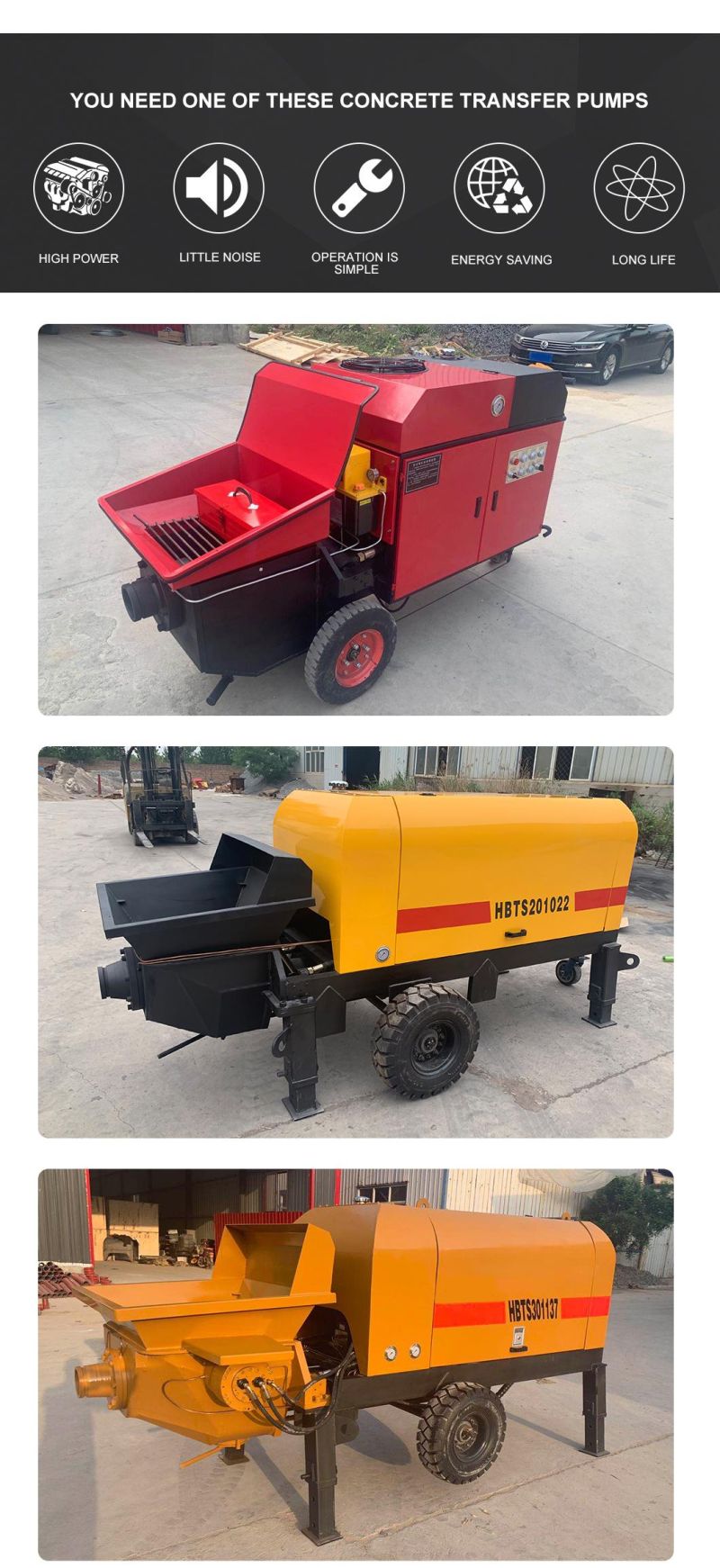

1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.
2.The distribution valve adopts advanced S-tube valve, which has good sealing performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.
4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system.

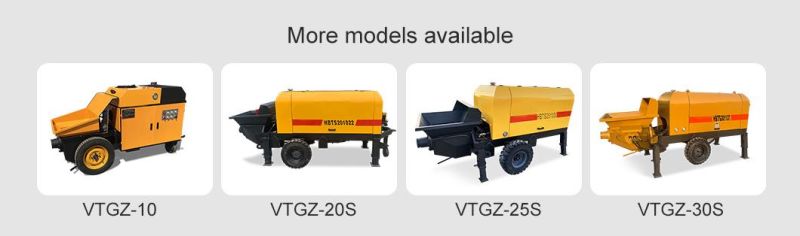

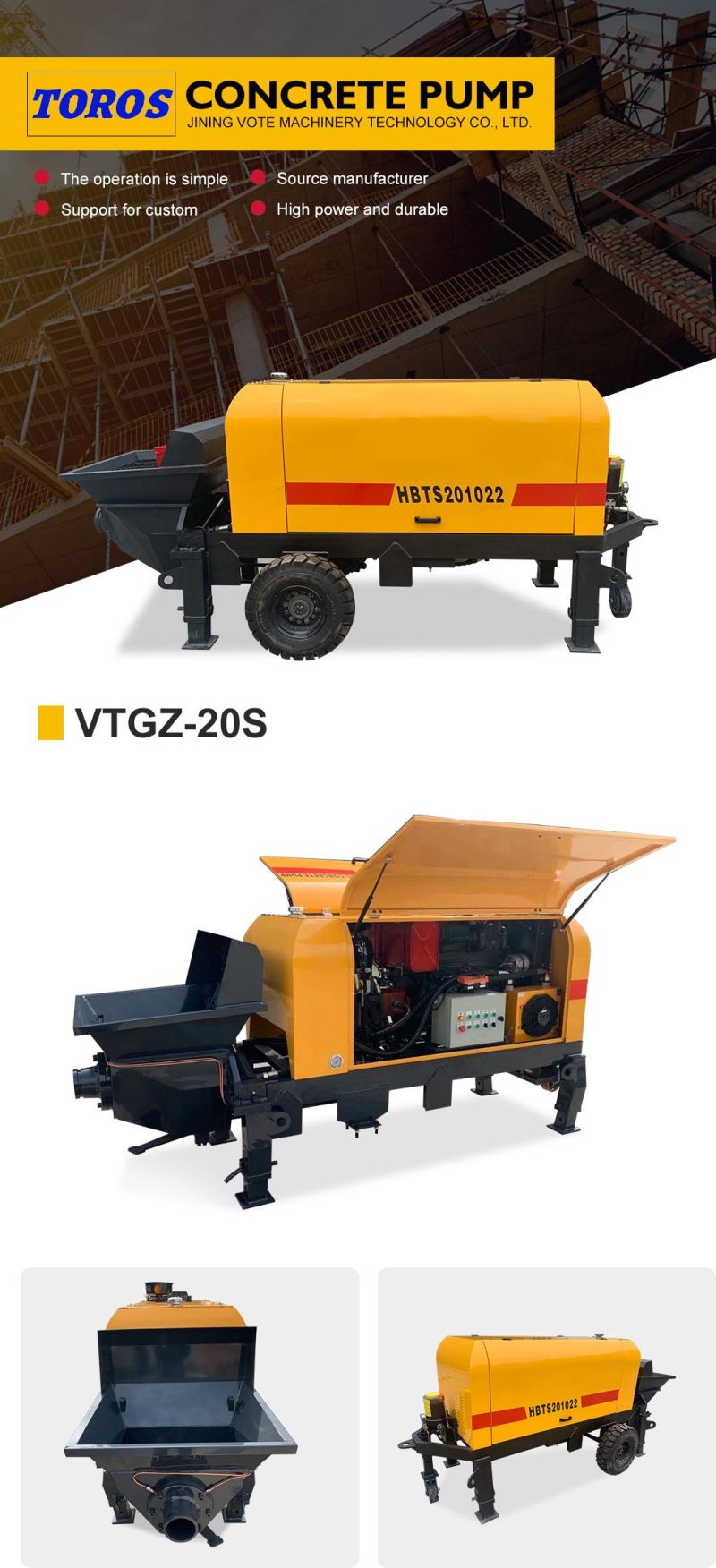

Model	VTGZ-15	VTGZ-20S(HOT)	VTGZ-25S	VTGZ-30S(HOT)
Driving mode	Non-pushing	Non-pushing	Drag-and-drop	Drag-and-drop
Motor Power	15KW	47kw	47kw	70kw
Working form	Hydraulic piston	Hydraulic piston	Hydraulic piston	Hydraulic piston
Concrete throughput	6-7m³/h	10-12m³/h	12-15m³/h	18-22m³/h
Largest aggregate size	≤20mm	≤30mm	≤20mm	<30mm
Duct diameter	φ120mm	φ140mm	φ140mm	φ180mm
Bore/stroke	120/400mm	120/500mm	120/500mm	160/800mm
Machine weight	950kg	2300kg	2400kg	2700kg
Product usage	Conveying mortar fine stone	Conveying mortar fine stone	Conveying mortar fine stone	Conveying mortar fine stone
Dimension	2000*750*1100mm	3500*1400*1600mm	3500*1500*1600mm	4300*1700*1700mm
Theoretical max. conveying distance	Vertical 10-20M    Horizontal 30-50M	Vertical 10-50M    Horizontal 30-120M	Vertical 15-80M    Horizontal 55-200M	Vertical 25-100M    Horizontal 75-240M

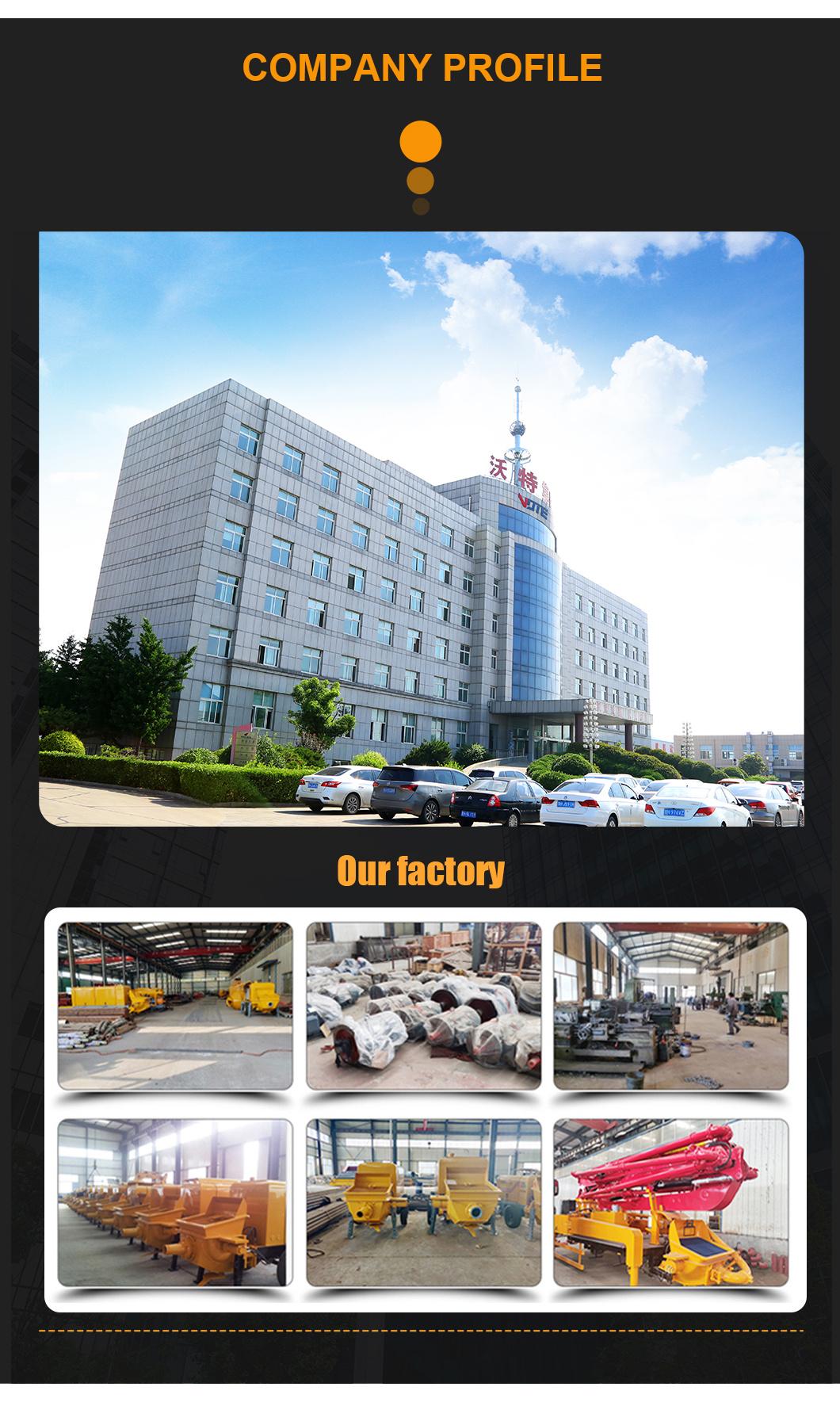

Factory introduction
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of LEITE Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and restShipping & Payment
For Transportation, We Have Three Methods: Sea, Air, And Land, And Support Multiple Payment And Multiple Transportation Methods. You Can Receive This Mini Excavator You Like At The Port, And Of Course You Can Also Receive The Mini Excavator At Your Doorstep. (The Cost Is Higher, Not Recommended), We Guarantee That We Will Not Charge Any Intermediate Fees And Extra Fees That Exceed The Shipping Cost, We Just Want You To Get This Favorite Mini Excavator Faster And More Preferentially! !
FAQ
1.Can the factory support mass production? Can I purchase a customized sample first?
A:Dear friends,TOROS company can support mass production. It can mass produce 200+Concrete pump in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!

2.Can it be transported to my door? I want to get my favorite Concrete pump soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)
During transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite Concrete pump earlier.

3.How can I guarantee after-sales after I buy it?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
