• Model NO.：TWG-9A
• Pipe Schedule：Sch5~Sch40, Sch5s~Sch40s
• Avaliable：Carbon Steel , Stainless Steel Pipe
• Outpoot：23rpm
• Transport Package：Free of Fumigation Wooden Box,Case
• Specification：1′′-8′′
• Trademark：TUWEI
• Origin：China
• HS Code：8462490000
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. TWG-9A Pipe Schedule Sch5~Sch40, Sch5s~Sch40s Avaliable Carbon Steel / Stainless Steel Pipe Outpoot 23rpm Transport Package Free of Fumigation Wooden Box/Case Specification 1′′-8′′ Trademark TUWEI Origin China HS Code 8462490000 Production Capacity 50, 000 PCS/Year

Product Description

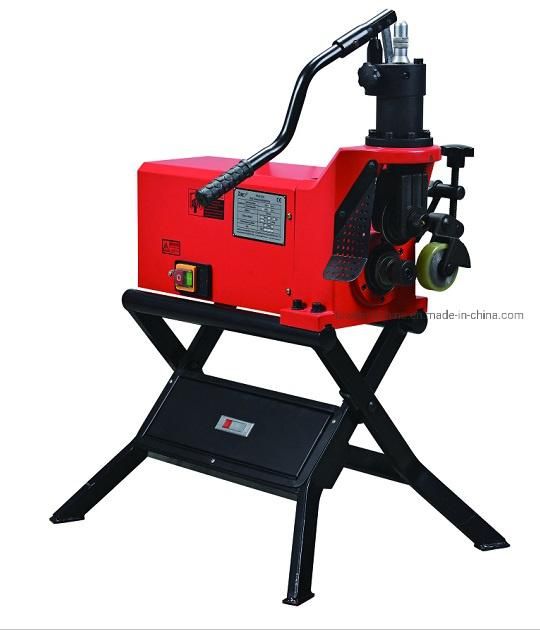

TWG-9A ROLL GROOVING MACHINE
 The new model of roll grooving machine TWG - 9A, including working capacity of TWG-IIIA, TWG-VA and TWG-VA-R, it is more efficient, more stable.
Equipped with stronger power and make rollers change quick and simple
Equipped with the new designed folding carriage, it is simple to assemble and move it.


Specifications

1. Capacity

      1"-8"SCH20~SCH40 steel pipe
      1"-8"SCH5S SCH5 SCH10S SCH10 thin wall steel pipe

1. Max. wall thickness:8MM
2. Output RPM: 23RPM
3. G.W: 82KGS
4. Packaging size: 75X41 X72(CM)

Standard Equipment
*For SCH40 steel pipe

Art.No.	Description	N.W(kgs)
09.02.051	Pipe stand	6.5

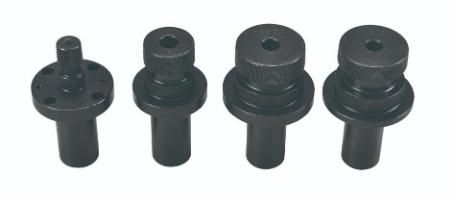

03.01.14.001	Knurl wheel Φ33-Φ48	1.55
03.01.14.002	Knurl wheel Φ57-Φ89	1.195
03.01.14.003	Knurl wheel Φ108-Φ168	1.775
03.01.14.004	Knurl wheel Φ219	1.635

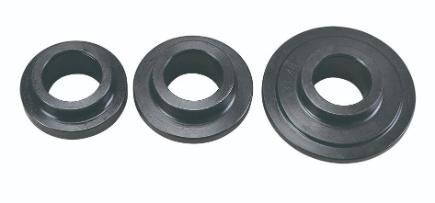

03.01.14.016	Pinch roller Φ33-Φ48	1.12
03.01.14.015	Pinch roller Φ57-Φ168	0.76
03.01.14.014	Pinch roller Φ219	0.665

Company  Information

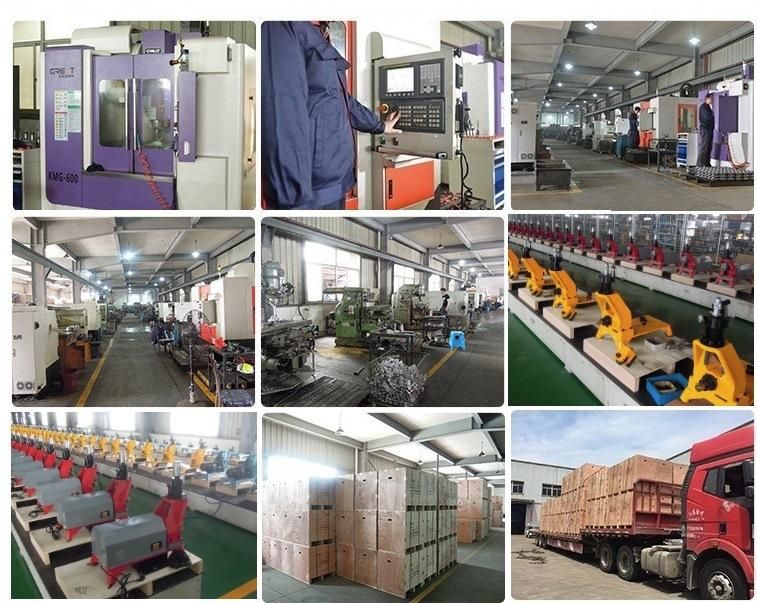

TUWEI is the leading manufacturer of pipe tools in china. Our major products are roll grooving machines,
pipe cutting machines, pipe threading machines, hole cutting machine.....In the past years, we have sent our
machines to many countries and get well reputations from all the customers. With the good reputations some
big brands come to us and start cooperation with us. For example the Victaulic, Rothenberger and Tyco-Grinnel.
