• Model NO.：XE150WB
• Maximum Digging Height：8190mm
• Power(W)：104kw
• Unique Selling Point：Environmental, Energy-Saving, Large Power Engine
• Maximum Digging Depth：4630mm
• Max Digging Radius：7780mm
• Hydraulic Valve Brand：Kawasaki
• Climbing Ability (%)：70
• Operating Weight：15t
• Moving Type：Wheel Excavator
• Engine Brand：Cummins
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XE150WB Maximum Digging Height 8190mm Power(W) 104kw Unique Selling Point Environmental, Energy-Saving, Large Power Engine Maximum Digging Depth 4630mm Max Digging Radius 7780mm Hydraulic Valve Brand Kawasaki Climbing Ability (%) 70 Operating Weight 15t Moving Type Wheel Excavator Engine Brand Cummins Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

Product Description

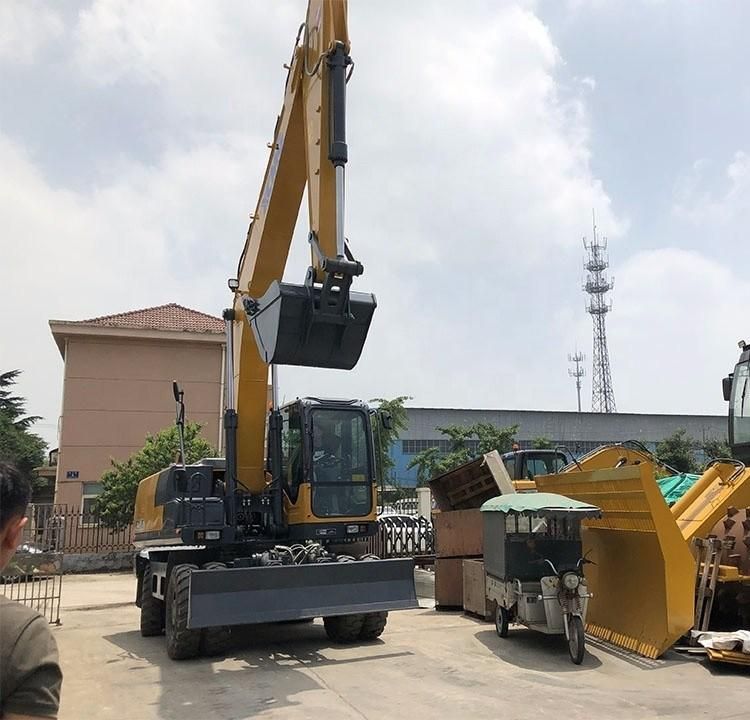

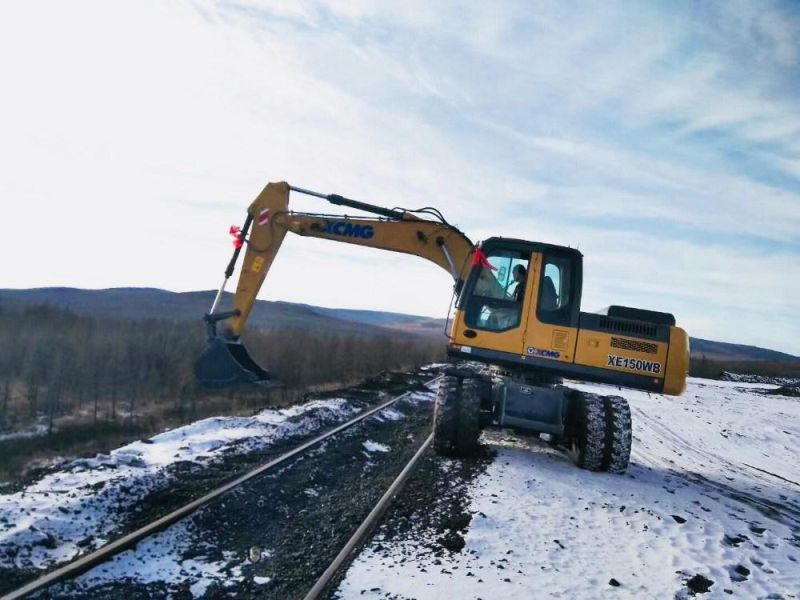

XCMG XE150WB excavator hydraulic 15 ton new excavator price.

Main parameters: Bucket capacity:0.58CBM Max digging height:8190mm Main configuration Cummins QSB4.5 engine 104kw Hydraulic system XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards, XE150WB plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers. This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.

Product ShowSpecification

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of tcuket	KN	60
Digging capacity of tcuket rod	KN	65
Min.turning radius	mm	6500
Travel speed	Km/h
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112

Top Selling

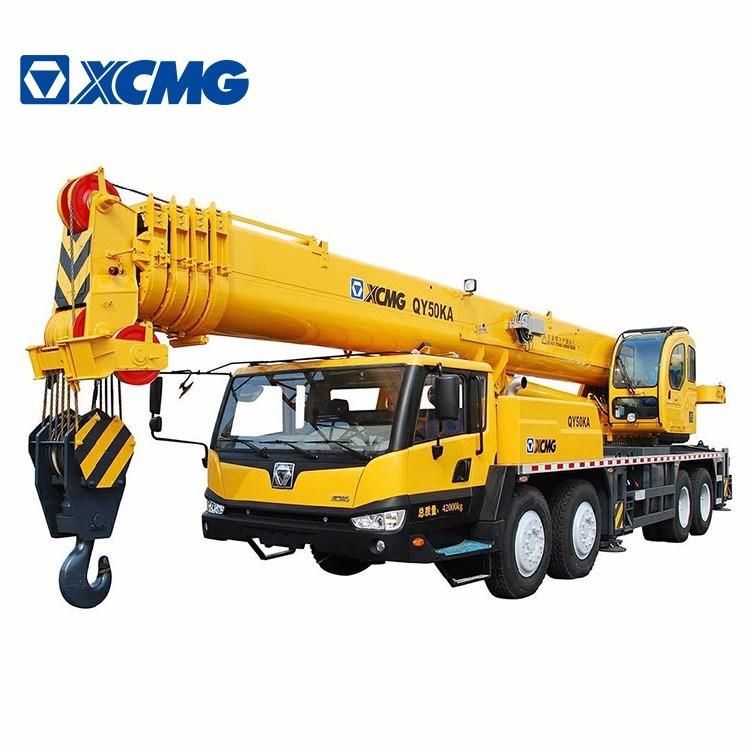

50ton qy50ka hydraulic telescopic boom truck crane.

Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

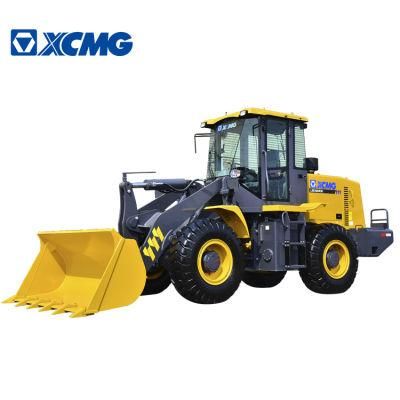

5 ton front end loader ZL50GN  wheel loader.
