• Model NO.：HBT20-10RS
• Vibrating Amplitude：0.8mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Model：Hbt20-10RS
• Max. Concrete Pumping Pressure：11,6.8MPa
• Concrete Conveying Pipe Diameter：100A,80A
• Max. Aggregate Particles：25-30mm
• Hydraulic Oil Tank Volume：350L
• Hose Diameter：80,100mm
• Diesel Engine Power (Kw)：46
• Overall Dimension：5000*1700*2100
• Total Weight(Kg)：3000
• Transport Package：Standard Export Packing for The Concrete Pump
• Specification：CE, ISO
• Trademark：LEC
• Origin：Henan, China
• Production Capacity：13-20cbm Per Hour

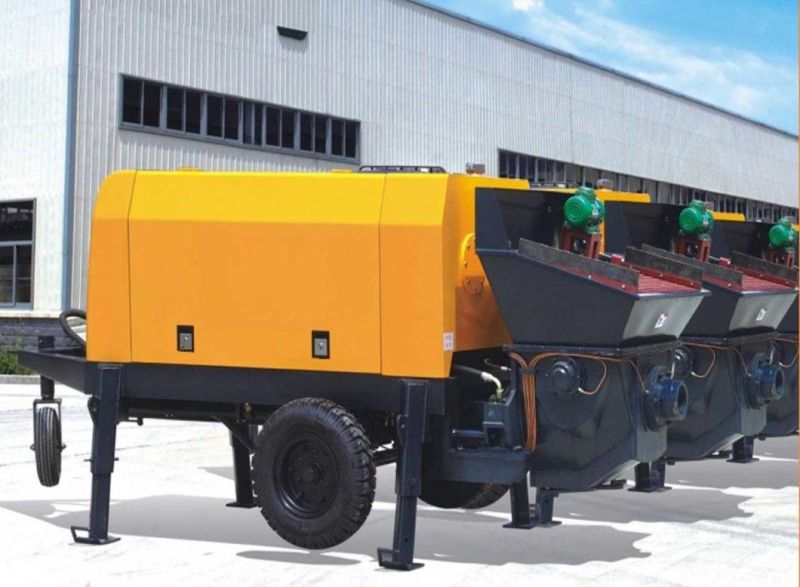

Model No./Diesel Concrete pumpHBT20-10RSMax. theoretical concrete output (m³/h)13/20Max. theoretical concrete pumping pressure (Mpa)11/6.8Theoretical vertical conveying height (m)160Theoretical level transmission distance (m )600Max. Aggregate particles (mm)30Slump (cm)12-23Concrete tube conveying diameter (mm)100A/80ATransporting cylinder number (pieces)2Concrete cylinder diameter*routeΦ140×1000Hydraulic oil tank volume (L)350Hopper volume (m³)0.35Filling height (mm)1100Diesel engine power (kw)46Machine Overall dimension (L×W×H) (mm)5000×1700×2100Total weight (kg)3000


5. Packing: In Nude, One unit/20GP
Delivery time: Usually in 10 working days for the concrete pump for sale

6. Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability, and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely

For more information about concrete pumping machine, please feel free to contact us.
