• Model NO.：Bulldozer
• Condition：New
• Color：Yellow or Customers′ Optional
• Use：Construction Machinery
• Product Name：Crawler Bulldozer
• Delivery Time：Shipped in 30 Days After Payment
• Engine：Weichai
• Blade Type：Su
• Rated Power：183kw
• Width(mm)：3140
• Height (mm)：1240
• Max. Output Traction(Kn)：280
• Track Width(mm)T510：X510
• Track Plate Number(Pieces)：37
• Track Center Distance(mm)：1880
• Supporting Wheel Number：6,Side
• Entrusted Sprocket Number：2,Side
• Working System Pressure(MPa)：19
• Transport Package：Nude
• Specification：7460x4455x3280mm
• Trademark：CAT , SEM
• Origin：China
• HS Code：8429510000
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. Bulldozer Condition New Color Yellow or Customers′ Optional Use Construction Machinery Product Name Crawler Bulldozer Delivery Time Shipped in 30 Days After Payment Engine Weichai Blade Type Su Rated Power 183kw Width(mm) 3140 Height (mm) 1240 Max. Output Traction(Kn) 280 Track Width(mm)T510 X510 Track Plate Number(Pieces) 37 Track Center Distance(mm) 1880 Supporting Wheel Number 6/Side Entrusted Sprocket Number 2/Side Working System Pressure(MPa) 19 Transport Package Nude Specification 7460x4455x3280mm Trademark CAT / SEM Origin China HS Code 8429510000 Production Capacity 500 Unit/Month

Product Description

China Sem816 822 New Bulldozer/SEM Bulldozer/Small Bulldozer

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929
 Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.


Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929

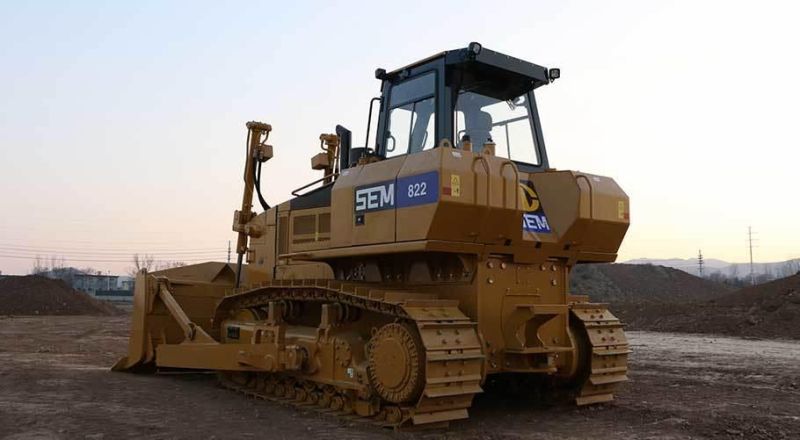

China SEM816 822 new bulldozer for sale


Item	SEM816	SEM822
Operating weight (kg)	17230	23950
Ground pressure(kpa)	68	71
Ground clearance(mm)	410	400
Max. climbing ability(°)	30	30
Engine	Weichai	Weichai
Model	WP10G190E314	WP12G250E305
Rated power(kw)	140	183
Working device

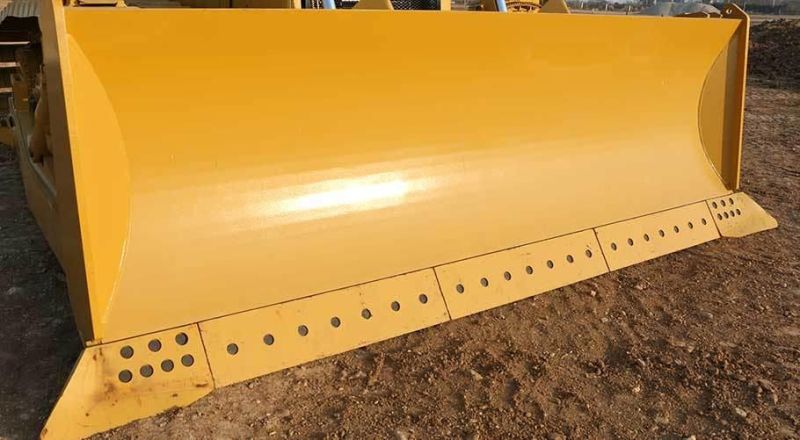

Shovel type	SU	SU
Capacity(ISO 9246)(m3)	4.3	6.4
Width(mm)	3140	3720
Height (mm)	1240	1511
Max. cutting depth(mm)	430	563
Max. lifting height(mm)	1041	1140
Max. output traction(kN)	280	350
Driving system
Type	Electronic control, dual circuit hydrostatic drive	Electronic control, dual circuit hydrostatic drive
Walking speed forward/backward(km/h)	0-10(variable speed)	0-11.5(variable speed)
Min. turning radius	3610 (pivot steering is possible)	4075 (pivot steering is possible)

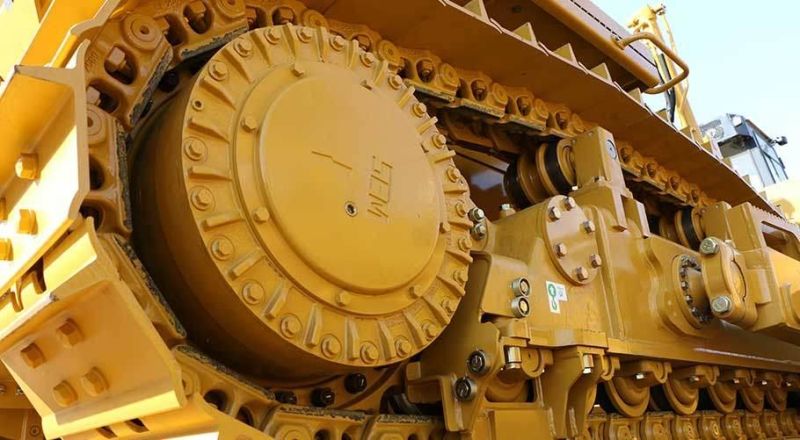

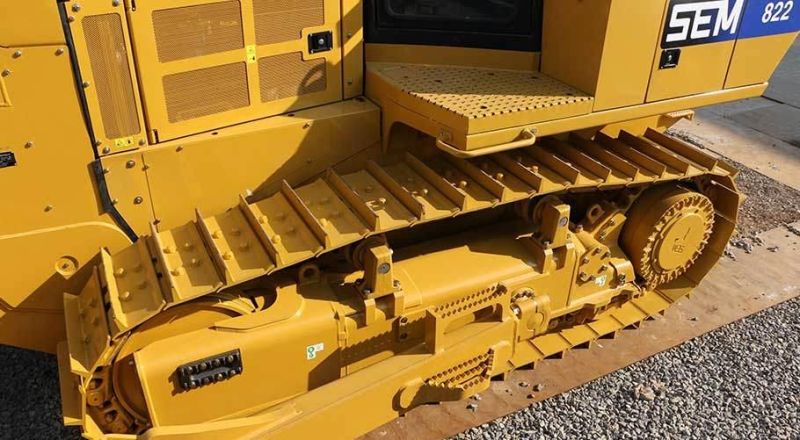

Chassis
Track width(mm)	510	560
Track plate number(pieces)	37	40
Track center distance(mm)	1880	2000
Supporting wheel number	6/side	7/side
Entrusted sprocket number	2/side	2/side
Working hydraulic system
Type	Pilot control	Pilot control
Working system pressure(Mpa)	19	19
Capacity of oil tank and water tank
Cooling system(L)	45	45
Hydrostatic oil(L)	60	85
Fuel(L)	320	460
Transfer box(L)	NONE	9

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929

WHY CHOOSE US?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.



Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.


Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929



OUR SERVICE

(1) More than 300 workers ,large and advanced production;

(2) Have professional engineer,can offer the best solutions;

(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.

(4) Build strict QC team to guarantee the quality;


(5) Own good sales team, can offer warm follow-up service.

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929

FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.




WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.


Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929
