• Model NO.：SD6
• Condition：New
• Color：Yellow
• Colour：Optional
• Engine：Good
• Cabin：with Cabin
• A/C：with A,C
• Alex：with Alex
• Transmissions：Automatic
• Ripper：3 Teeth Ripper
• Bulldozer：Good Bulldozer
• Size：Middle
• New：New Machine
• Transport Package：Nude Package
• Specification：CE, ISO
• Trademark：HBXG
• Origin：Hebei, China
• HS Code：84295100
• Production Capacity：3000,Month

Item

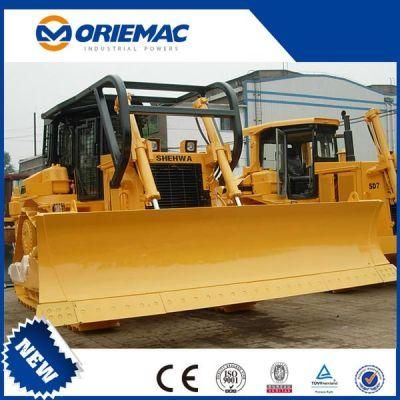

HBXG SD7 bulldozer
ENGINE
Model & type
Cumins NT855-C280S10
Rate revolution (rpm)
2100
Rated power (KW)
177
Cylinder number-bore(mm) x Stroke
6-140x152
Piston displacement (ml)
14000
Min fuel consumption (g/kw.h)
235
Max torque (N.M/rpm)
1097/1500
POWER TRANSMISSION SYSYTEM
Torque Converter
Similar to technology,
 is power separating hydraulic-mechanic
 type.
Transmission
Similar to technology,
is planetary, power shift transmission.
Main drive
Cylinder gear and a pair of bevel gear
 transfer.
Steering clutch
Hydraulic pressed, non-constant engaged
 clutch.
Steering brake
The braking clutch is pressed by spring,
separated hydraulic, constant meshed type.
Final drive
Similar to technology, Two-stage planetary reduction gear mechanism,
splash lubrication.
TRAVEL SPEED
Gear
1st
2nd
3rd
Forward (Km)
0-3.9
0-6.5
0-10.9
Reverse
0-4.8
0-8.2
0-13.2
UNDERCARRIAGE
Type
The track is triangle shape. The sprocket is
elevated elastic suspended.
Track rollers
7 each side(single flanges 4, double flange 3)
Track type
40 each side
Width of track shoes (mm)
560
Pitch (mm)
216
                             HYDRAULIC SYSTEMS
Maximum pressure (MPa)
18.6
Pump type
High pressure gears pump
Discharge (L/min)
194
Bore of working cylinder (mm)
120x2
