• Model NO.：RL-900DZ
• Travel Speed：2.5km,H
• Centrifugal Force：30kn
• Certification：CE
• Condition：New
• Product Name：Vibratory Roller Compactor
• Engine：Diesel Engine
• Hydraulic Pump：Tuff Torq, Japan. Output: 13cc
• Hydraulic Motor：Eaton,White, USA. Output: 125cc
• Weight：920kgs
• Transport Package：Wooden Case
• Specification：920kgs
• Trademark：ACE
• Origin：Ningbo, China
• HS Code：84306100
• Production Capacity：2000 PCS,Year

Basic Info.

Model NO. RL-900DZ Travel Speed 2.5km/H Centrifugal Force 30kn Certification CE Condition New Product Name Vibratory Roller Compactor Engine Diesel Engine Hydraulic Pump Tuff Torq, Japan. Output: 13cc Hydraulic Motor Eaton/White, USA. Output: 125cc Weight 920kgs Transport Package Wooden Case Specification 920kgs Trademark ACE Origin Ningbo, China HS Code 84306100 Production Capacity 2000 PCS/Year

Product Description

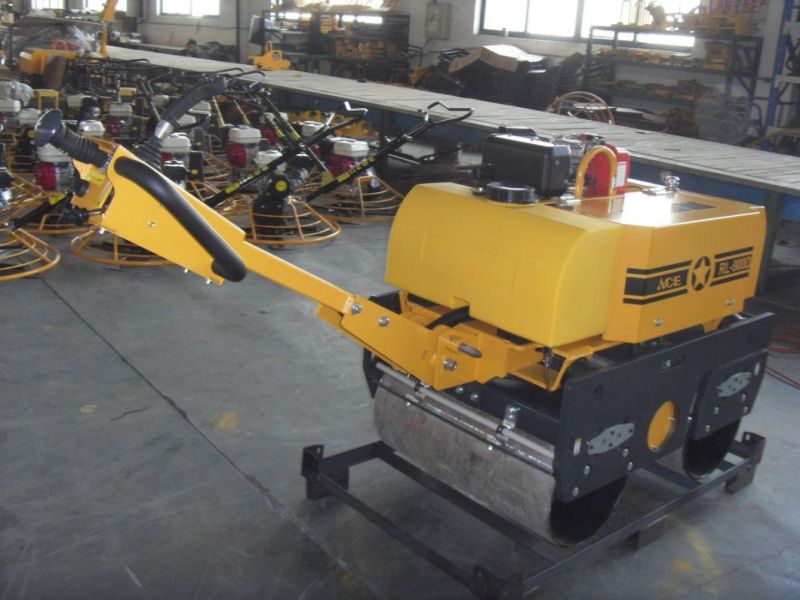

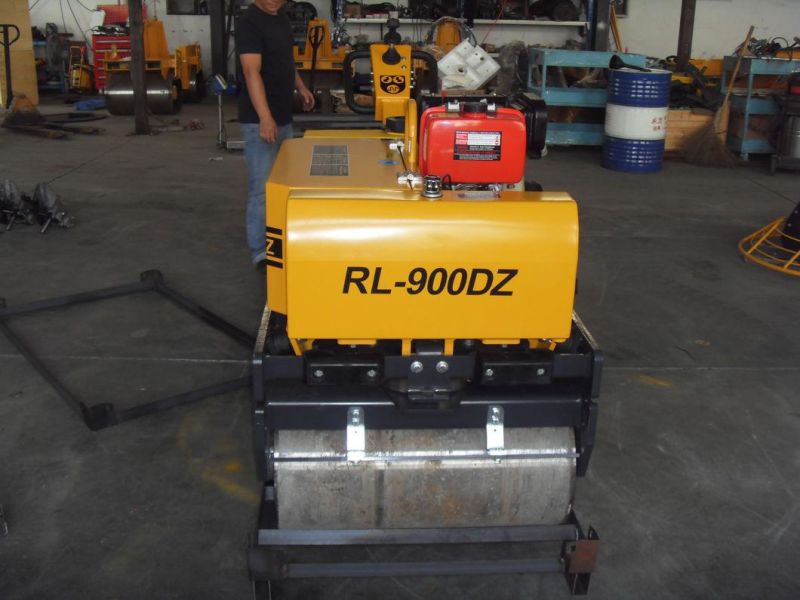

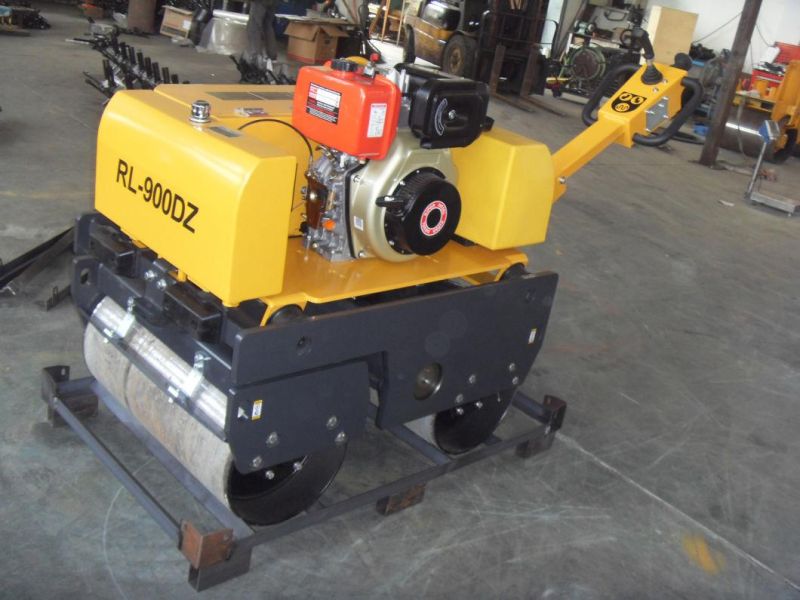

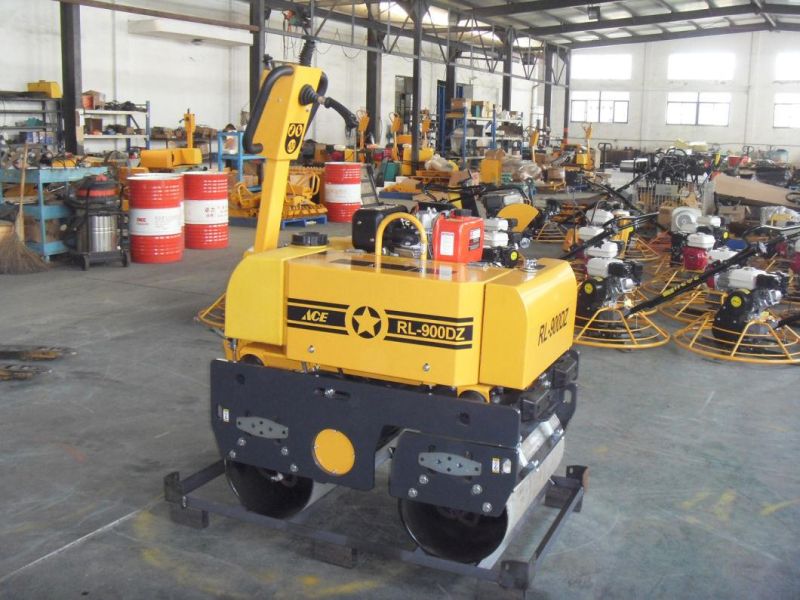

Hydraulic Vibratory Mini Road Roller machine RL-900DZ

mainly used to compress o the asphalt,sand soil and gravel.

it is also used to compress on trackin the and plenish the lawn.

Features
1.Applying hydraulic control unit ,imported hydraulic pump from Japan,easy to change direction, ,turn left,turn right and Reversible.

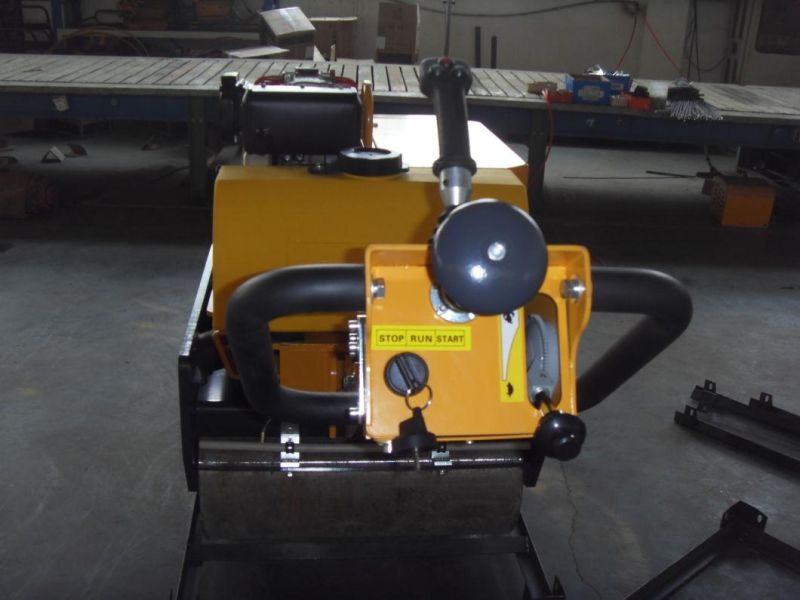

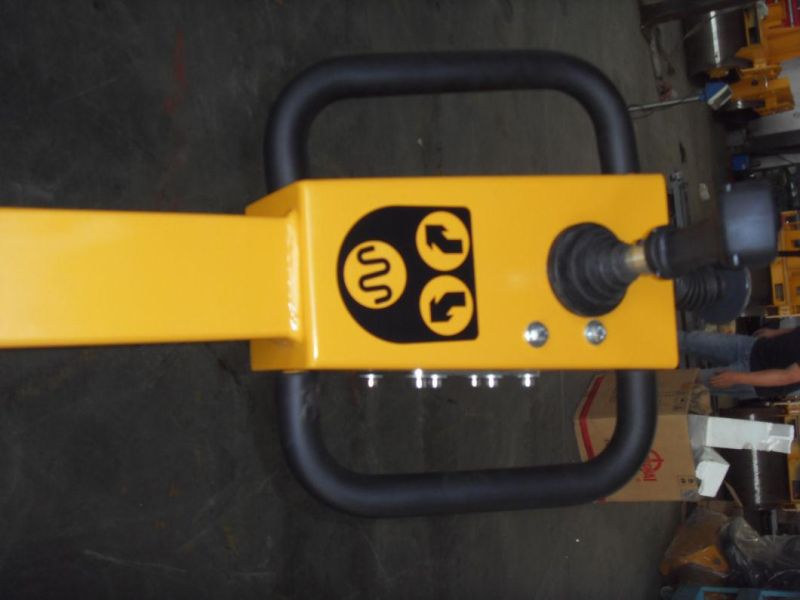

2.Handled by joystick,effort saving and smooth opeartion
2.Custom made water-cooled diesel engine,with good heat dissipation and great power comparing to gasoline engine,especially fits for running in burning hot areas.
3 Drum and body steel material is C45,better tensile strength than Q235,long service life.
4.Steel cutting by lazer,no deformation from twisting and bending,high demension accuracy comparing to flame cutting
5.The rollers can wokr long time with high capacity water tank

Model	RL900DZ
Engine	Diesel engine 186FE 9.0HP
Weight(KGS)	920
Vibratory Frequency(times/min)	3600
Centrifugal Force(KN)	30
Max.Travelling Speed(KM/H)	2.5
Gradeability(%)	30
water tank capacity(L)	35
fuel tank capacity(L)	25
Vibratory Wheel Dia(mm)	426
Vibratory Wheel Width(mm)	750
packing size(cm)	131*82*122
