• Model NO.：HBT5008K
• Pressure of Hydraulic：32MPa
• Max. Horizontal Conveying Distance：400m
• Weight：5035kg
• Hopper Capacity/Fillin：0.6m3,1370mm
• Specification：5623*1884*2606mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：10000,Year

itemparametersunitShape size5623×1884×2606mmWhole machine quality5035kgConcrete conveying capacity50m3/hMaximum output pressure8MpaConveying distance (vertical / horizontal)100/400mHopper volume / feeding height0.6/1320m3/mmConcrete slump80-230mmConcrete delivery bore diameter / stroke180/1400mmActive engine-diesel engine  ModelWP4G110E220 Rated power82kwRated speed2200r/minHydraulic system  typeopen Hydraulic system pressure32MpaMain oil pump  Model typeA11VLO130 Rated working flow224L/minPump cylinder diameter / stroke 90/1400 mm Hydraulic tank volume250  L

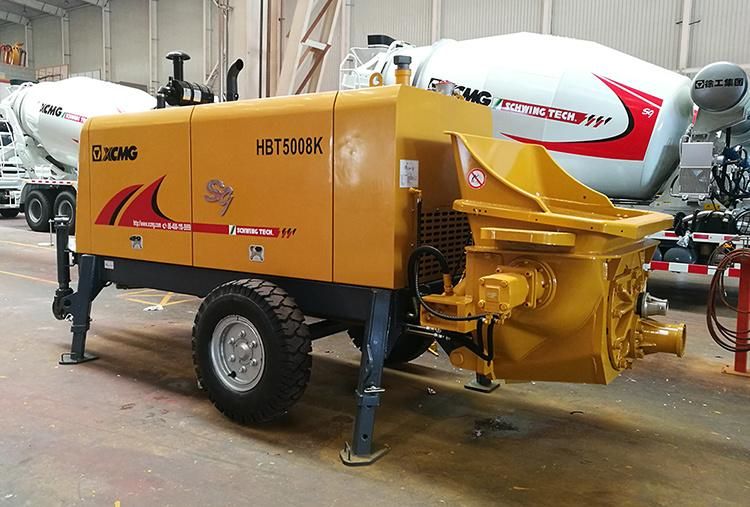

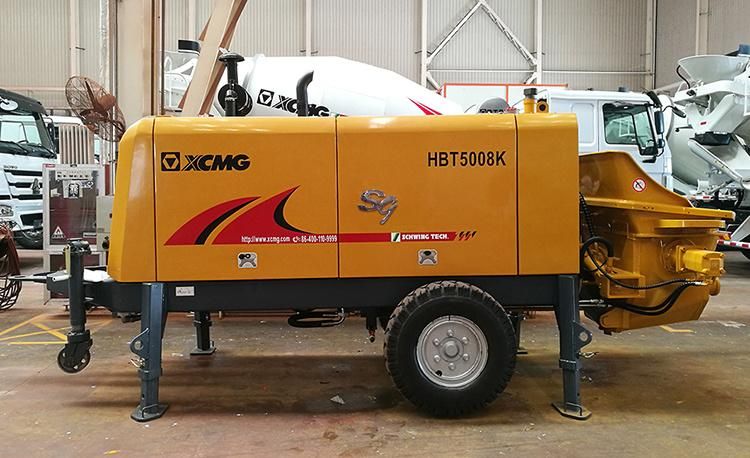

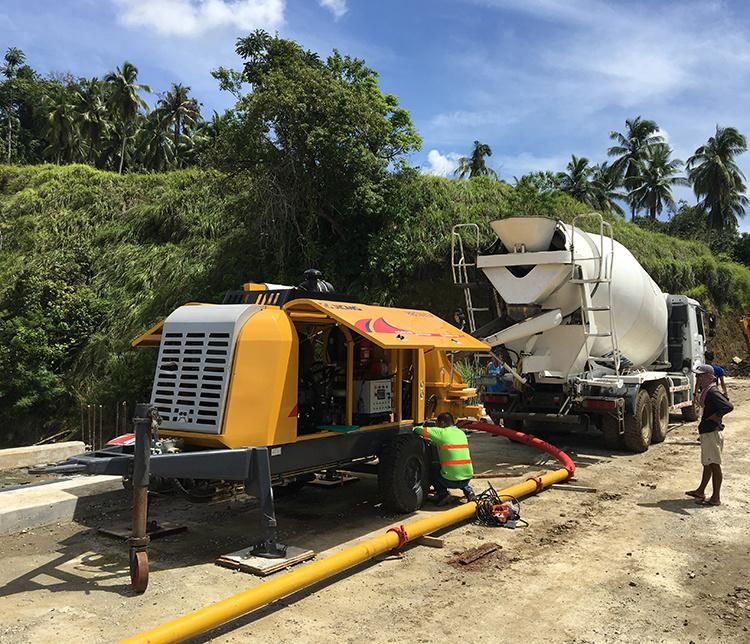

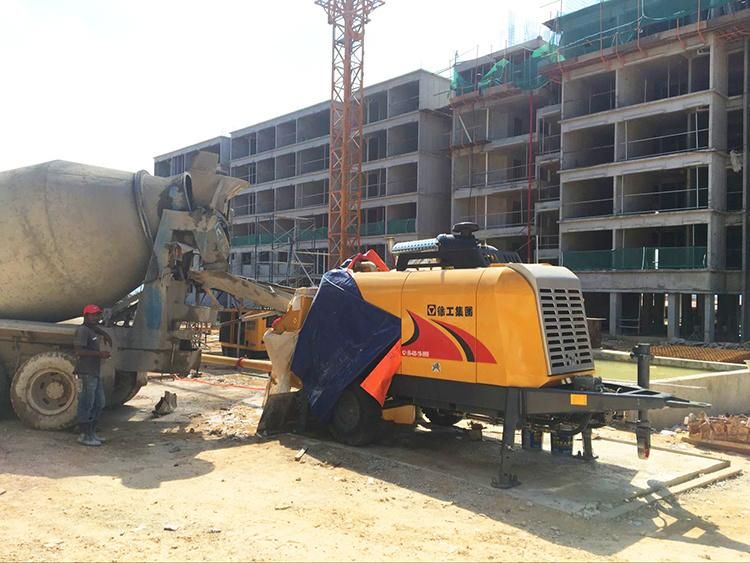

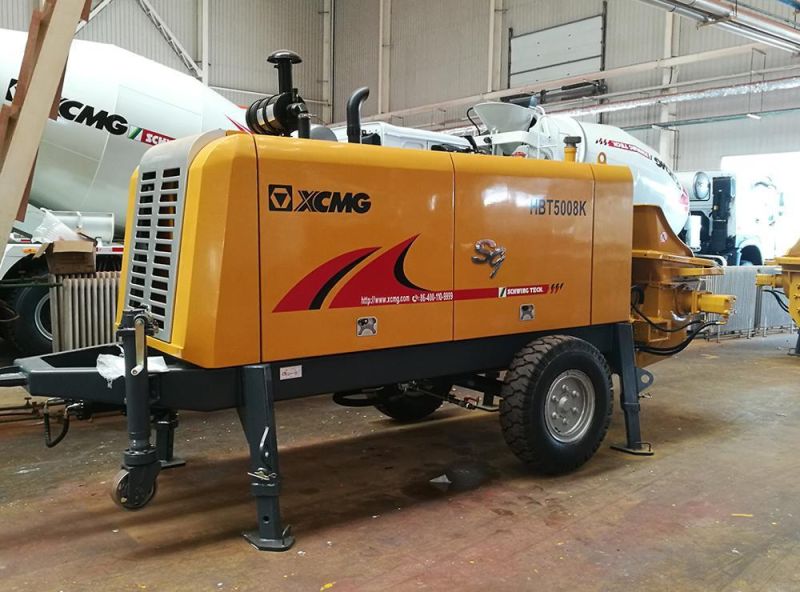

product show
