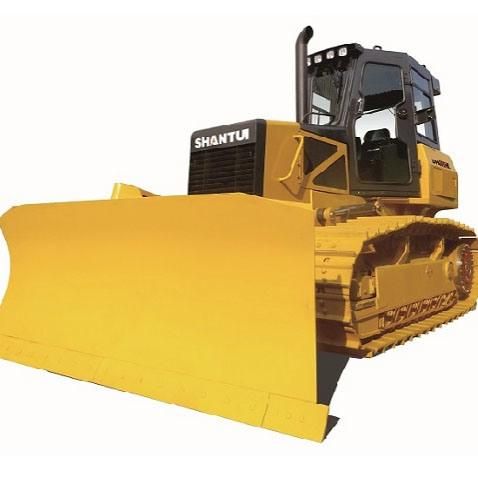

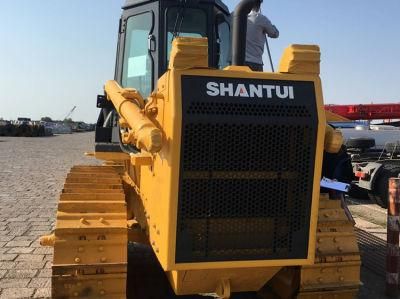

Good Performance Shantui Crawler Bulldozer (SD26) with Low Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：SD26
- Engine Power：74~147kw
- Certification：CE
- Condition：New
- Color：Yellow
- Transport Package：Nude
- Specification：As below
- Trademark：Shantui
- Origin：Hunan
- HS Code：8429119000
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. SD26 Engine Power 74~147kw Certification CE Condition New Color Yellow Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 8429119000 Production Capacity 1000 Pieces/MonthProduct Description
Various brands and prices available, just send me inquiry, product list will be offered!!!Good Performance Shantui Crawler Bulldozer (SD26) with Low Price Power System
Strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 105kW, featuring high torque reserve coefficient.
The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.
| Parameter name | SD26 | SD26E(LONG TRACK) | SD26F(FOREST LOGGING) | SD26S(LGP) |
| Performance parameters | ||||
| Operating weight (Kg) | 23400 | 24600 | 24700 | 25700 |
| Ground pressure (kPa) | 77 | 72 | 66 | 41 |
| Engine | ||||
| Engine model | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 |
| Rated power/rated speed (kW/rpm) | 206/1800 | 206/1800 | 206/1800 | 206/1800 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 5495*3725*3402 | 5495*3725*3402 | 6225*4365*3402 |
| Driving performance | ||||
| Forward speed (km/h) | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
| Reversing speed (km/h) | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 |
| Chassis System | ||||
| Center distance of track (mm) | 2000 | 2000 | 2000 | 2250 |
| Width of track shoes (mm) | 560 | 560 | 560 | 910 |
| Ground length(mm) | 2730 | 3050 | 2730 | 3480 |
| Tank capacity | ||||
| Fuel tank (L) | 450 | 450 | 450 | 450 |
| Working device | ||||
| Blade type | Straight-tilt | Straight-tilt | Straight-tilt | Straight-tilt |
| Ripper type | Single shank/3 shanks | Single shank/3 shanks | Single shank/3 shanks | -- |
| Ripping depth (mm) | 695/666 | 695/666 | 695/666 | -- |
