• Model NO.：SWMH500K
• Size：Large-Scale
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Max. Lifting Height：17 M
• Max. Working Radius：15.5 M
• Max. Travel Speed：15 Km,H
• Engine Power：570HP
• Operating Weight：50 Ton
• Warranty：One Year
• Brand：Sinoway
• Model：Swmh500K
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84292090
• Production Capacity：100 PCS , Year

Basic Info.

Model NO. SWMH500K Size Large-Scale Certification ISO9001: 2000, ISO14001 Condition New Max. Lifting Height 17 M Max. Working Radius 15.5 M Max. Travel Speed 15 Km/H Engine Power 570HP Operating Weight 50 Ton Warranty One Year Brand Sinoway Model Swmh500K Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84292090 Production Capacity 100 PCS / Year

Product Description

Highlights of SINOWAY Material Handling Euqipment

Our Material handler has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; it can quickly replace different hydraulic grabs.The electric operation has over-current and heat-discharge protection devices; Phase sequence automatic identification to prevent oil pump reversal device;Hydraulic system power failure, oil self-locking protection device;There are a number of complex movements during the operation to improve efficiency;The hydraulic system is equipped with an air-cooled radiator;The gripper can automatically turn and reversing 360 degrees; Both Rigid cab elevation andcHydraulic cab elevation are available.
Also, timber grab, bulk material grab, orange peel grab, sorting grab, hydraulic grab, lifting magnet can be choosed.

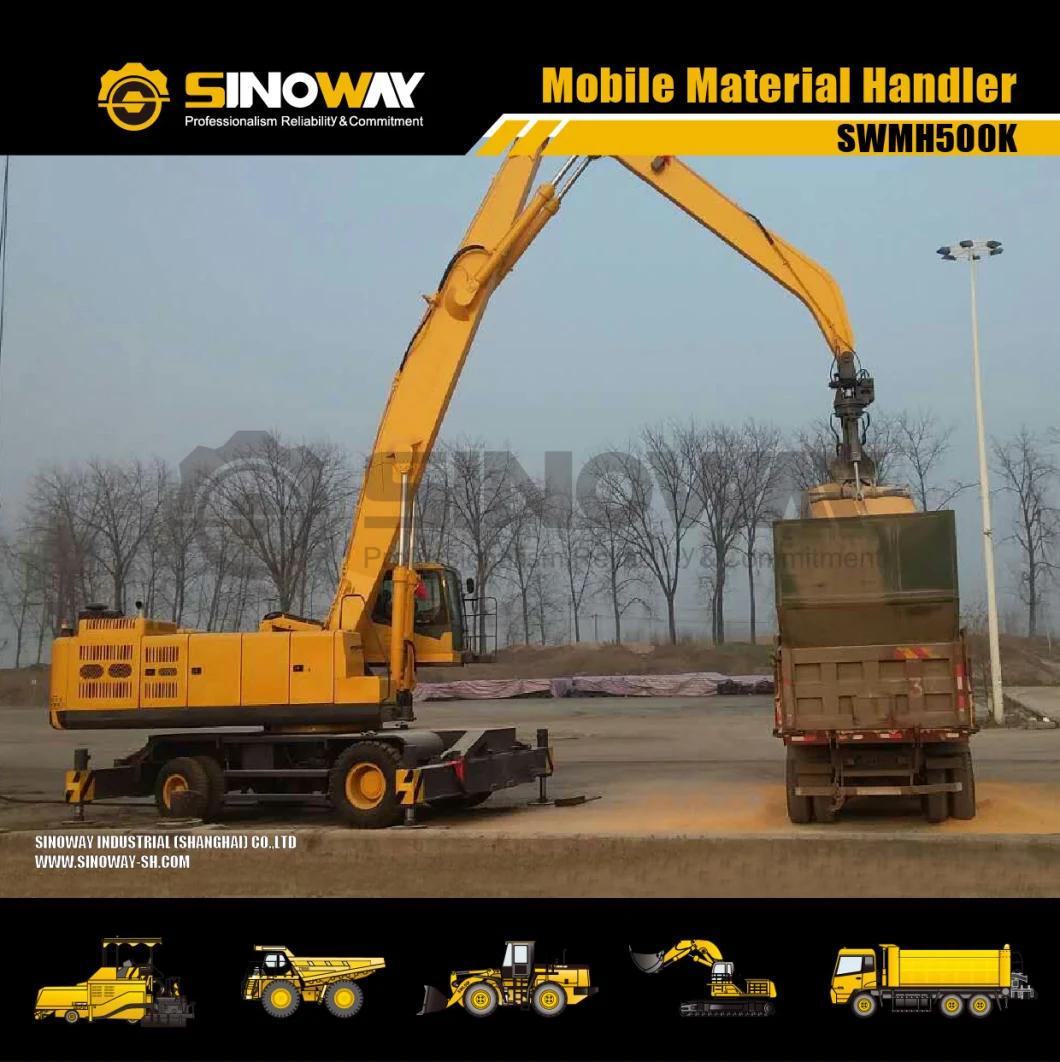

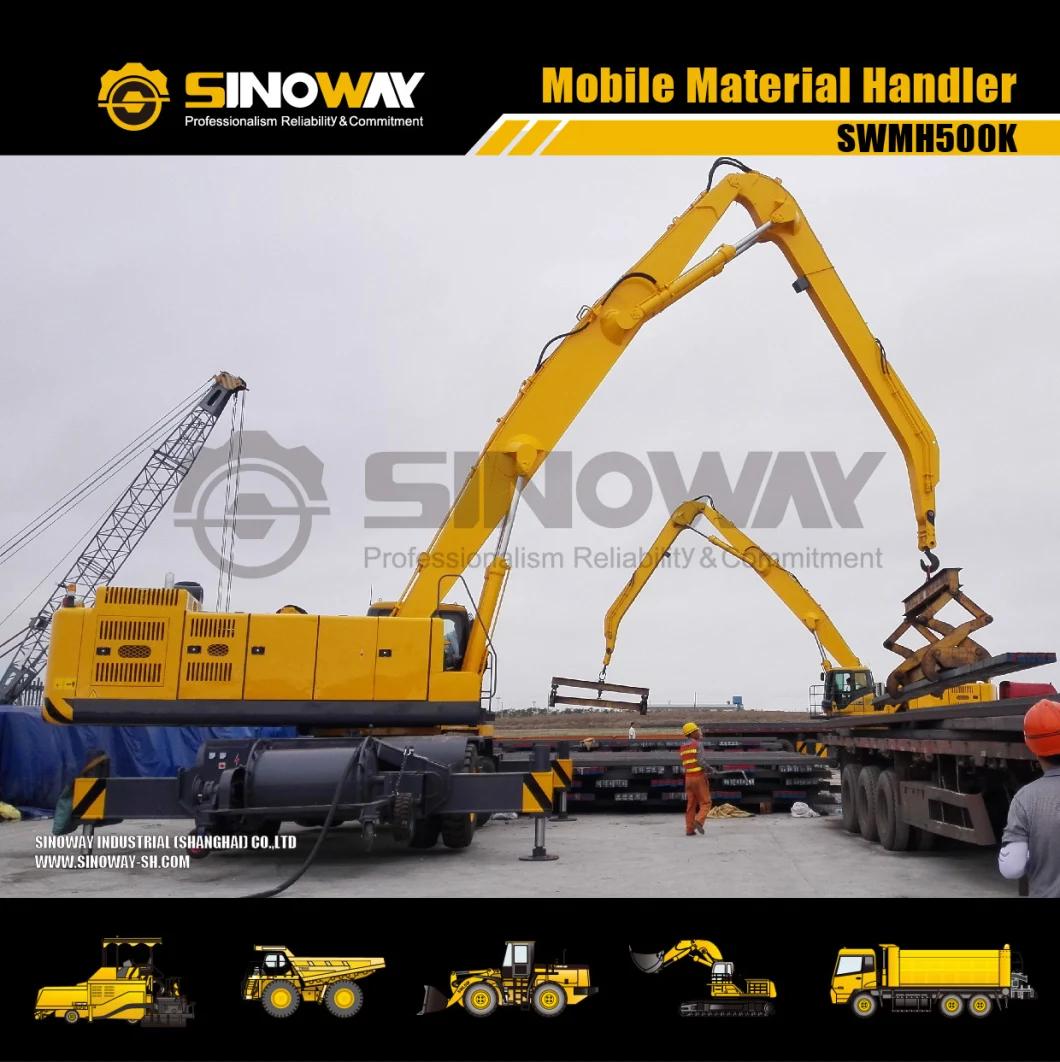

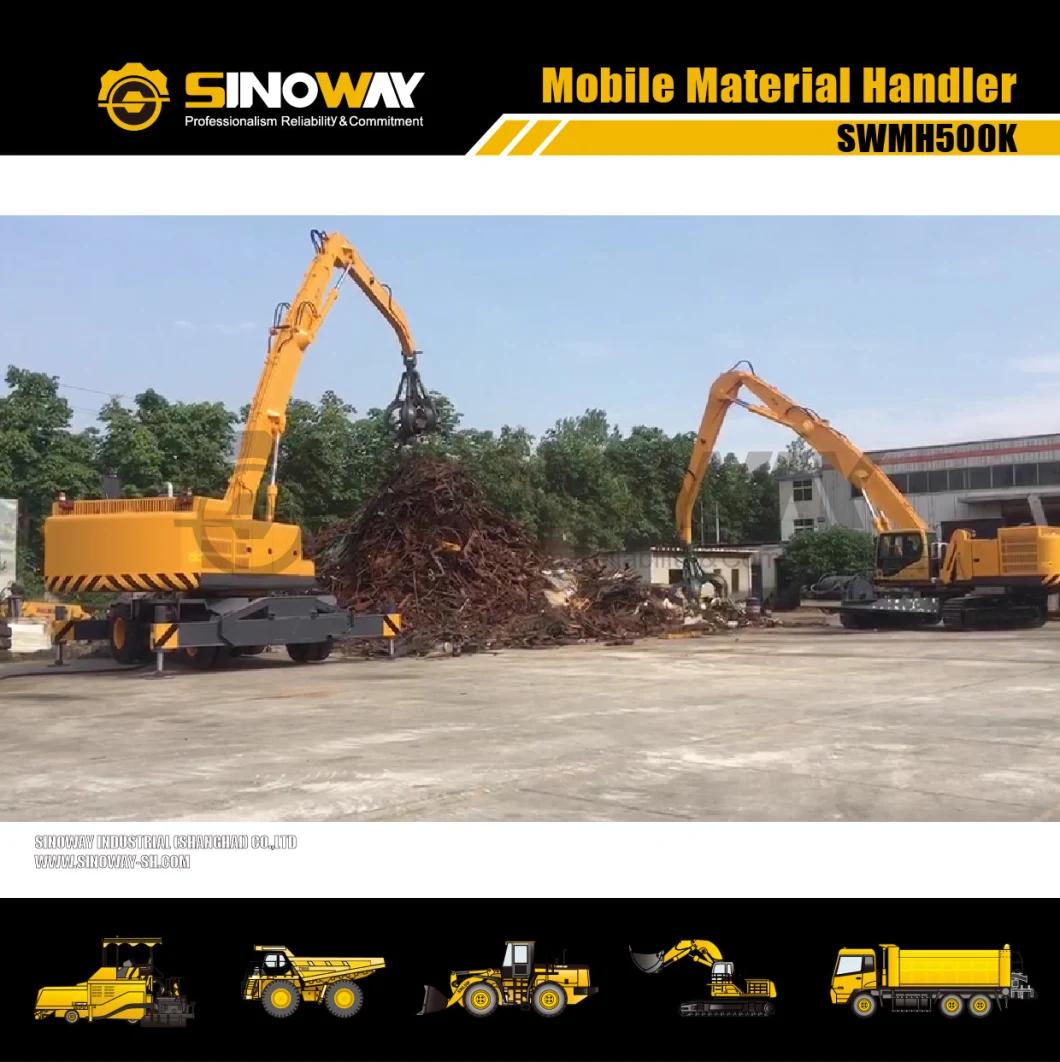

Product Show

Specifications

Power
Electrical motor	200KW
Rated speed	1480rpm
Max. swing speed(Electrical motor)	5r/min
Diesel engine	266KW
Rated speed	2200rpm
Max. swing speed(Diesel engine)	7r/min
Fuel tank capacity	450L
Main Technical Specification
Max. lifting moment	80t.m
Max. swing torque	140kN.m
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤17s/≤11s
-Rise boom(Electrical/Diesel)	≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤20s/≤11s
-Rise boom(Electrical/Diesel)	≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel)	≤16s/≤11s
-Full retracting(Electrical/Diesel)	≤12s/≤10s
Outrigger distance
-Lengthways	4500mm
-Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	8.6m
Max. gradeability	15%
Min. ground clearance	250mm
Max. traction force	115kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance(Speed:15km/h)	≤6.5m
Operating weight	50000kg(Including clam shell)

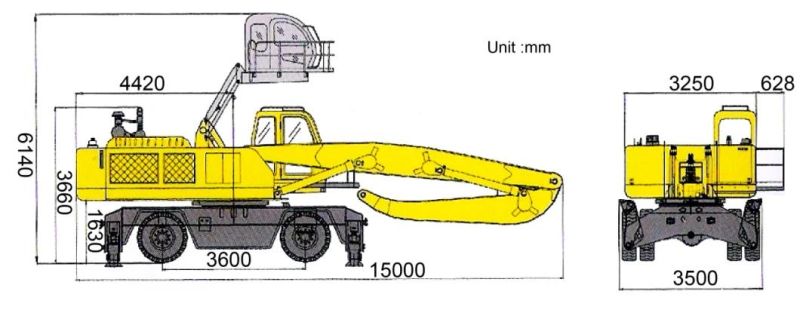

Dimension
Overall length	15000mm
Overall width	3500mm
Overall height	3660mm
Wheelbase	3600mm
Max.lifting height of cab	6140mm
Rear-end length/Slewing radius	4420mm
Counterweight clearance	1630mm
Upperstructure width	3250mm
