• Model NO.：ex200-1 EX200-3
• Technique：Forging&Casting
• MOQ：1 Track Link,Track Chain
• Use：Construction
• Name：PC100 PC200 PC300 Excavator Track Shoes Group
• Finish：Smooth
• Delivery Time：Within 25 Days After Contract Established
• Key Words：Track Link Group
• Transport Package：Standard Export Wooden Pallet
• Specification：ex200-1 EX200-3
• Trademark：Dingtai
• Origin：Fujian
• HS Code：84314999
• Production Capacity：5000 PCS Per Month

Product   Name

Track   Link/Track Chain Assy

Product   Information

Undercarriage   Parts

Color

Black,Yellow,Grey

Application

Excavator

Material

35Mn/40Mn

Certification

ISO9001:2008

Technique

Forging   & casting

Warranty   Time

2000   hour (Normal life 4000hours )

Surface   Hardness

HRC50-58

Delivery   Time

Within   15-20 days after contract established

Hardness   Deepth

4mm-10mm

MOQ

2   Price Track Link/Track Chain Assy

Model   Number

Track   Link/Track Chain Assy

Service

After-market   and OEM

USE

Construction

Port

Xiamen

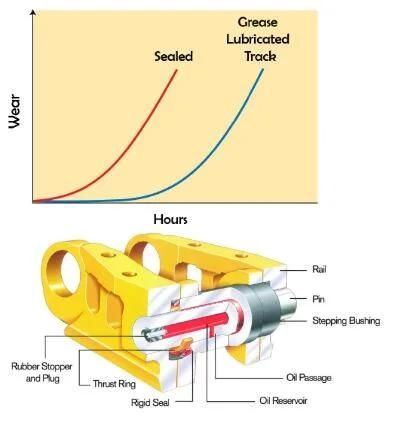

• Increases external wear life by 20% or more. See the graph.

• Link life, normally limited by bushing wear, is better utilized because internal and external bushing wear life is extended.

• Overall system wear life is enhanced by 25% or more due to the combined improvements of internal wear, external wear, and sprocket wear.



  Models

  A

  B

  C

  D

  E

  F

  G

  H

  I

  J

  K

  Q

  O

  EX60

  154

  55

  47.5

  40.45

  42

  80

  90

  90

  155

  127

  58

  14.8

  30.5

  EX100-1/2/3/5

  171.45

  60.32

  55.56

  50.75

  51.8

  95

  107.95

  107.95

  178

  138.95

  75.24

  16.8

  33.4

  EX100M-3

  171.45

  60.32

  55.56

  50.75

  51.8

  95

  107.95

  107.95

  178

  138.95

  75.24

  16.8

  33.4

  EX200-1

  175

  58.7

  57.2

  58.8

  60.3

  103.2

  125.4

  144.5

  218

  176.8

  90.8

  18.8

  36.5

  EX300-5

  216

  76.2

  63

  71.2

  70

  129

  140.4

  178.4

  244

  197.6

  102

  22.8

  47

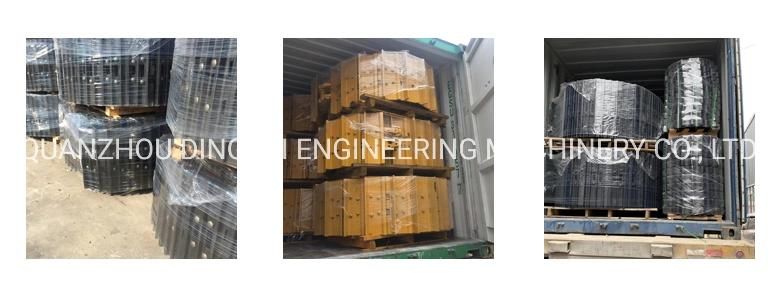

Packing&Shipping:



Company Information:

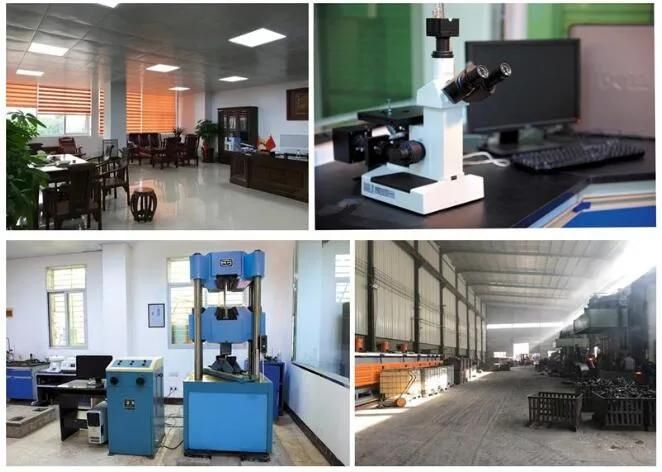

Founded in 2008, Quanzhou Dingtai Engineering Machinery Co., Ltd. is located in Quanzhou city, Fujian province, near to Xiamen port with convenient transportation. Our company is a professional manufacturer and exporter of undercarriage parts for excavators and bulldozers in China.

Our main products include track roller, top roller, idler, sprocket, track shoe, track links, track group, track bolt with nut, bucket, bucket link, teeth, and cylinder ect. These parts are applied for Cat, Hitachi, Kato, Daewoo, Hyundai, Sumitomo, Samsung, Kobelco, and Mitsubishi. With more than 12 years' development, our company have all kinds of production lines, professional technicians and skillful workers, making sure our products with high quality and competitive price. We passed the certification of ISO9001-2000, quality management procedures are conducted in accordance with international standards.

Now all our products are exported to Southeast Asia, the Middle East, Europe, North and South America, Australia, and Africa and so on. We are enhancing the market share. "Mutual benefit" is our promise and value. We'd like to supply you with high quality products and professional after-sales service. We sincerely welcome you to join us for mutual development and a prosperous future!
