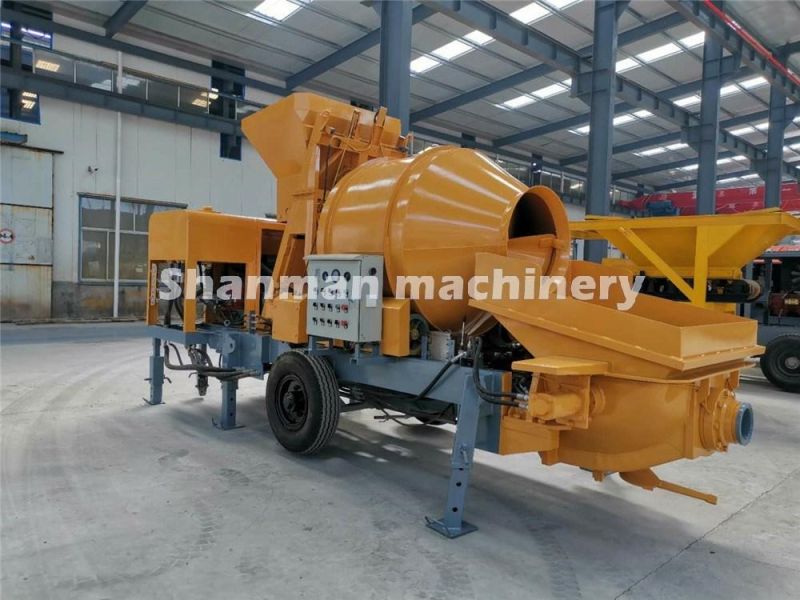

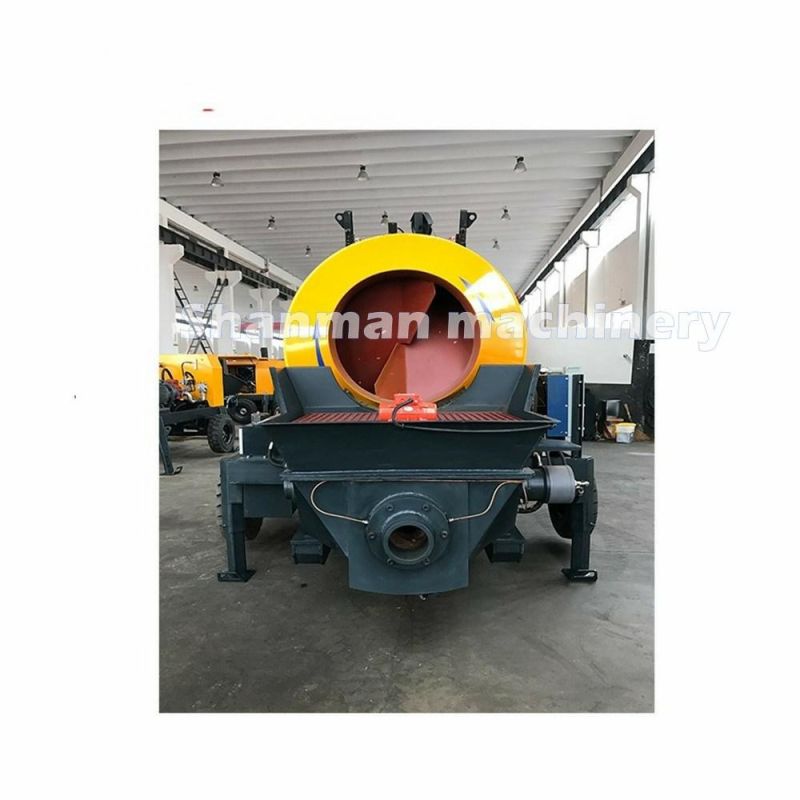

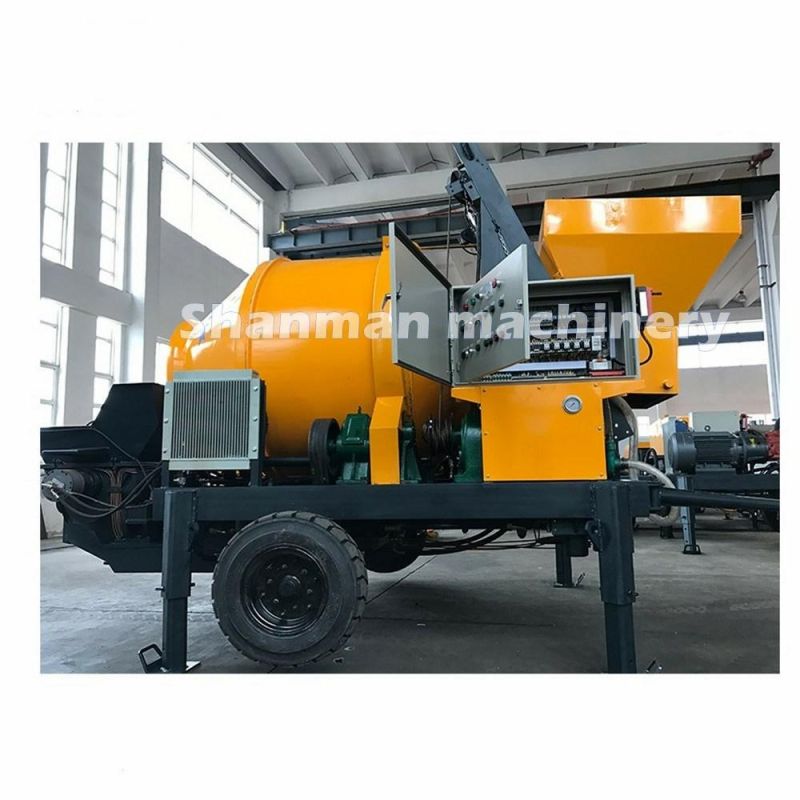

Concrete Mixer Machine with Pump
SHANMAN (LINYI) MACHINERY CO., LTD.- Type:Concrete Pump
- Shotcrete Type:Semi-Dry
- Machining Process:Hydraulic
- Structure:Cylinder Type
- Productivity:15cbm,H
- Feeding Height:1370mm
Base Info
- Model NO.:450l mixer with pump
- Vibrating Amplitude:1.0mm
- Certification:ISO9001: 2000, SGS
- Condition:New
- Color:According to Your Request
- Motor Power:49kw
- Mixing Power:5kw
- Charging Capacity:560L
- Reclaiming Capacity:450L
- Speed of Mixing Drum:2800r,Min
- Water Supply Mode:Self
- Working Cycle Period:45min
- Outline Dimension:4800*2150*3000
- Transport Package:Wood Box, Container
- Specification:450l with pump
- Trademark:shanman
- Origin:China
- HS Code:8474310000
- Production Capacity:50000,Year
Description
Basic Info.
Model NO. 450l mixer with pump Vibrating Amplitude 1.0mm Certification ISO9001: 2000, SGS Condition New Color According to Your Request Motor Power 49kw Mixing Power 5kw Charging Capacity 560L Reclaiming Capacity 450L Speed of Mixing Drum 2800r/Min Water Supply Mode Self Working Cycle Period 45min Outline Dimension 4800*2150*3000 Transport Package Wood Box, Container Specification 450l with pump Trademark shanman Origin China HS Code 8474310000 Production Capacity 50000/YearProduct Description
1. IntroductionShanman mixer with pump: electric and engine power concrete mixer pump has both mixing and pumping function , it is suitable for countryside construction and small building construction , it save much more workers and cost
concrete mixer and pumping machine is the newest products patented by our company, it is combined by the traditional concrete pump and the mixer together, it is the most suitable for use in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.
2. concrete mixer and pumping machine performance
The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.

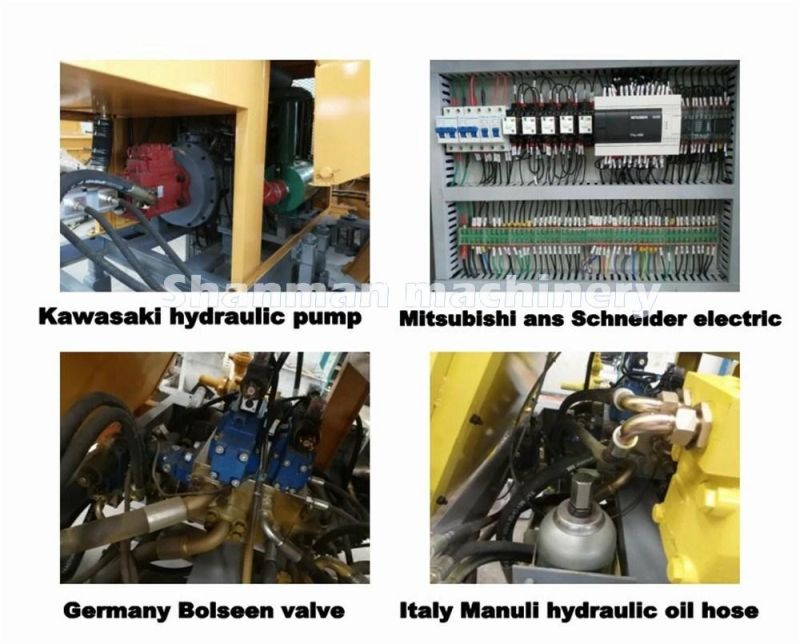

3. The spare part we use are all World famous brand
4. Features
1. Leading professional design and manufacture;
2. Excellent skills assured the accuracy between blades and cylinder;
3. Noise reduction;
4. Prolong the life of blades and scale board;
5. High quality and reliable performance;
6. Safe and long service life.
5. Parameters
No. | 450L concrete mixer with pump | Unit | Parameters |
1 | Max Theoretical Concrete Output | m³/h | 30 |
2 | Concrete Outlet Pressure | Mpa | 6 |
3 | Concrete Slump | mm | 120-230 |
4 | Aggregate Size | mm | Fine stone≤30 |
5 | Main Oil Pump | Gear Pump 50ml/r | |
6 | Valve Style | S | |
7 | Delivery Pipe Diameter | mm | 125 |
8 | Hydraulic Valve | Beijing Huade | |
9 | Diesel Drum Power | KW | 41 |
10 | Voltage/phase | V/HZ | |
11 | Mixer Machine Model | JZC450 | |
12 | Mixer Drum Capacity | L | 500 |
13 | Mixer discharging capacity | L | 350 |
17 | Rotation Rate | r/min | 2300 |
18 | Concrete Cylinder | mm | φ180/1000 |
19 | Main hydro-cylinder | mm | φ100/1000 |
20 | Fuel Tank Capacity | L | 400 |
21 | Hopper Capacity | m³ | 0.4 |
22 | Feeding Height | mm | 1100 |
23 | Conveying Distance(vertical height/horizontal distance) | m | 130/300 |
24 | Pipe Washing Way | Water washing | |
25 | Dimension (L*W*H) | mm | 4500*2200*2600 |
26 | Total weight | Kg | 4000 |
27 | Chassis Model | Trail | |
28 | Support Way | The fixed support leg | |
29 | hydraulic fluid radiation ways | Water cooling radiator | |
30 | Tyre | 7.00-12 |

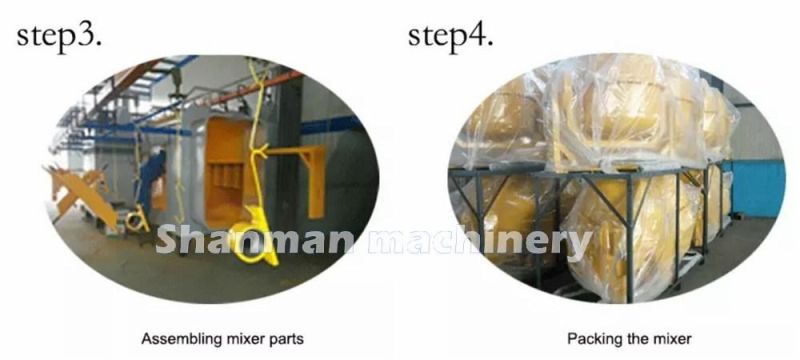

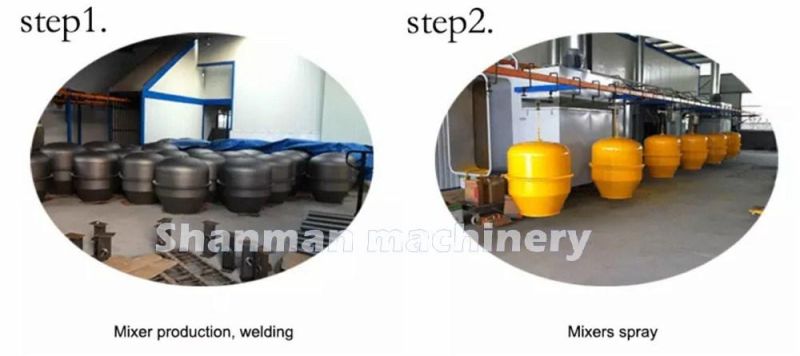

6. Manufacturing process
7. Service
The production will be completed within 30 days of receipt of the deposit. Normally we work on EXW, FOB, CFR or CIF Incoterms 2010. Under FOB or CIF we ship the goods to Qingdao Port through containers. Products are well fixed in the containers and anti-collision packaging is used.
Both Online & At Site
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
8. Questions you may have
1: How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
2: How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
3: Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River port, the logistics company will infrom you.
4: Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Warranty time is one year.
Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
5: Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
