• Model NO.：3M
• Motor Power：85kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2008
• Condition：New
• Model：Hwl-300r
• Hammer Impact：780j
• Pile Length：3000mm
• Press Pile Diameter：0-600mm
• Drilling Depth：0-3000mm
• Track Shoe：350mm
• Engine Brand：Yuchai
• Rated Power/Speed：85kw,2400 Rpm
• Effective Press Pile Stroke：0-3000mm
• Operating Speed (M/Min)：90s,Per Pile
• Maximum Length of Piles to Be Rammed：3m
• Walking Speed：5-10km,Hr
• Gradeability：0-35 Degree
• Walking Motor Rated Pressure：18MPa
• Dimension(Lxwxh)：4600*2150*2800mm
• Transport Package：Standard Export Package
• Specification：6000kg
• Trademark：Hengwang
• Origin：Shandong
• HS Code：8430100000
• Production Capacity：1000pieces,Year

Drilling diameter(DTH hammer)(mm)

90-400

Drilling depth(m)

1-100

Air consumption (m3/min)

10-26

Working wind pressure (Mpa)

0.7-1.6 (medium-pressure) /1.6-2.46 (high pressure)

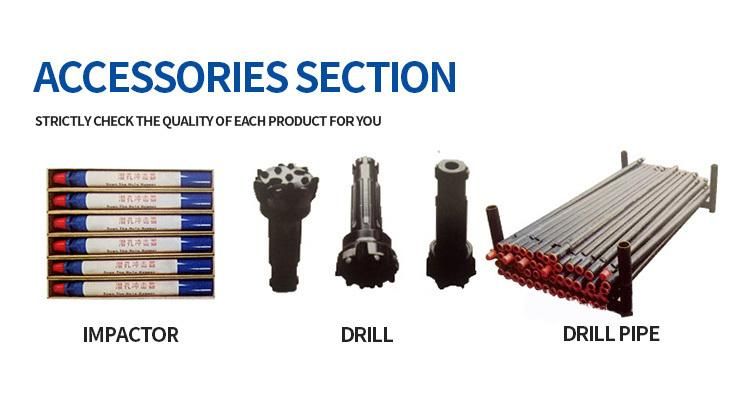

Drill Pipe Diameter(mm)

76/89

Rock hardness(F)

6-20

Drilling diameter(auger)(mm)

Maximum 400

Drilling depth(m)

20

Auger diameter(mm)

130-400

One thrust stroke (mm)

2600

Pitch Angle of slide frame (°)

120

Slide frame swing Angle(°)

left and right total 40

The Angle of the drill arm swing (°)

left and right total 50

rotating speed(r/min)

0-110

Slope working angle (°)

45

Working dimension (L*W*H)(mm)

3500*2200*4500

Shipping dimensions

4500*2500*2800

Weight (Kg)

7300

Traveling speed (km/h)

0-2.5

Rated power (kw)

85

Max.width (mm)

2800

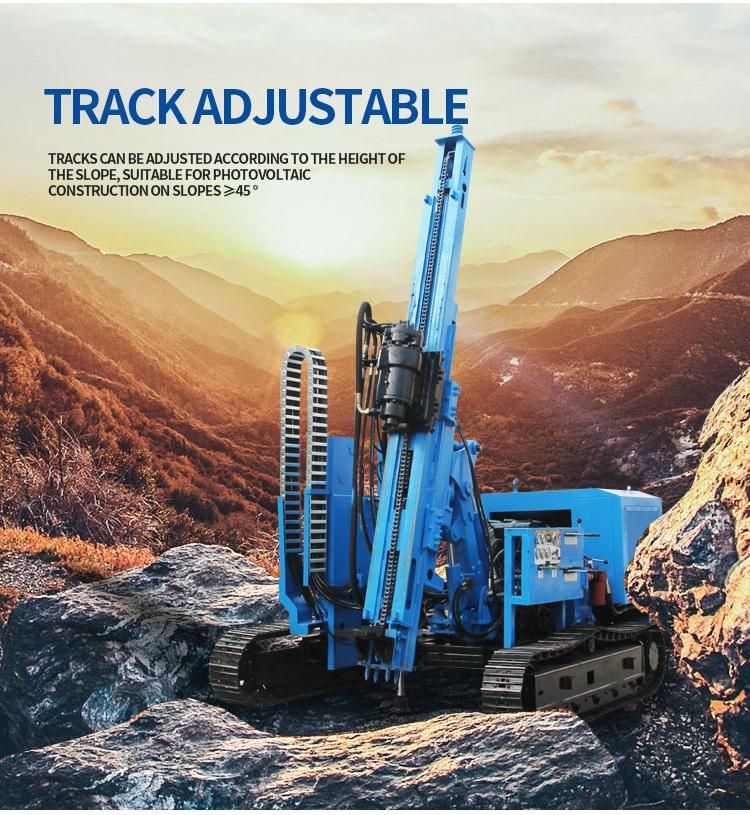

Expansion height of one side track (mm)

1200
