Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type：Crawler Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator
  • Bucket：Backhoe
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：1.0~1.5m³

Base Info

  • Model NO.：SWEA220
  • Size：Large-Scale
  • Certification：ISO9001: 2000, ISO14001
  • Condition：New
  • Product Name：Amphibious Excavator
  • Brand：Sinoway
  • Engine：Isuzu
  • Hydraulic System：Doosan
  • Operating Weight：41.5 Ton
  • Chain Number：Three
  • Color：Yellow
  • Warranty：One Year
  • Transport Package：Nude
  • Specification：ISO2008
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84294090
  • Production Capacity：15000 PCS Per Year

Description

Basic Info.

Model NO. SWEA220 Size Large-Scale Certification ISO9001: 2000, ISO14001 Condition New Product Name Amphibious Excavator Brand Sinoway Engine Isuzu Hydraulic System Doosan Operating Weight 41.5 Ton Chain Number Three Color Yellow Warranty One Year Transport Package Nude Specification ISO2008 Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 15000 PCS Per Year

Product Description

SINOWAY Wetland Excavator
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland

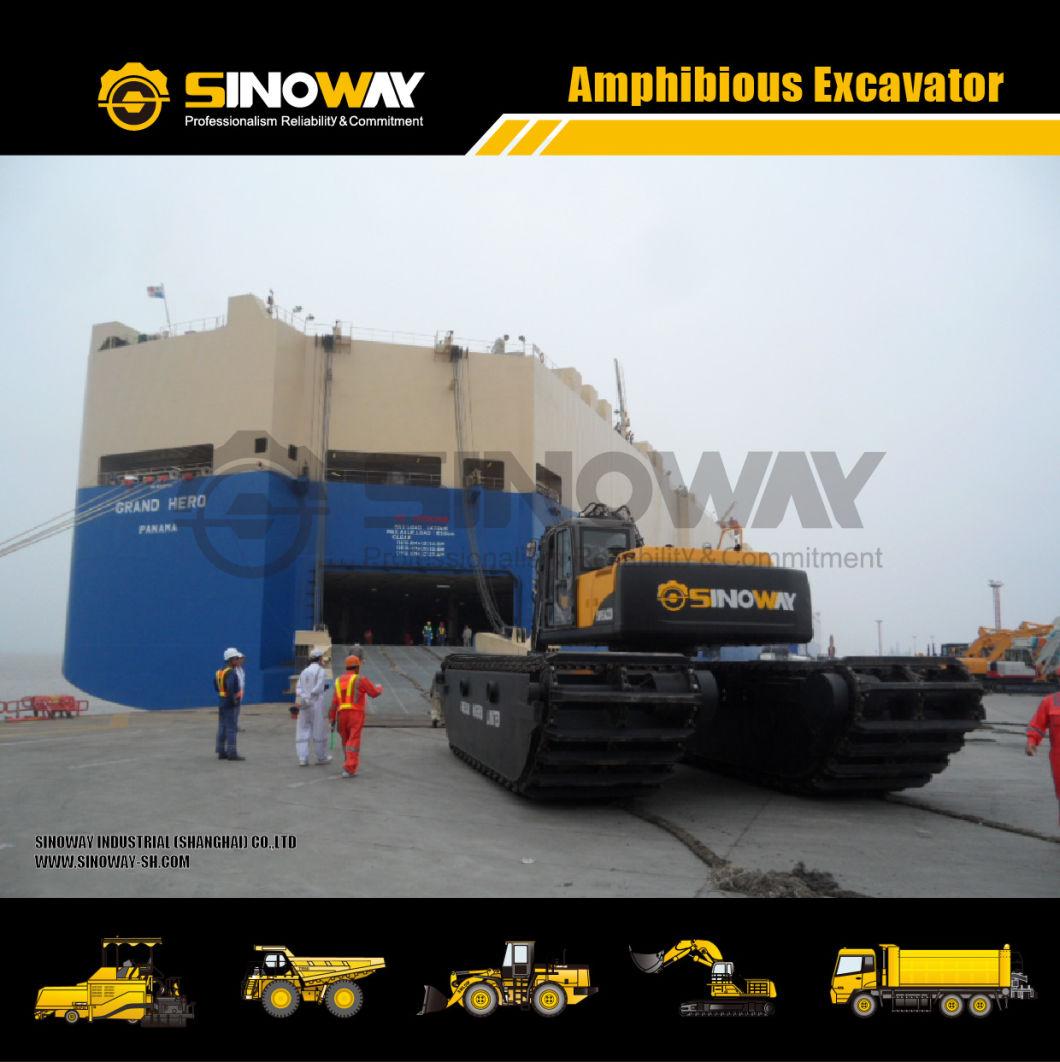

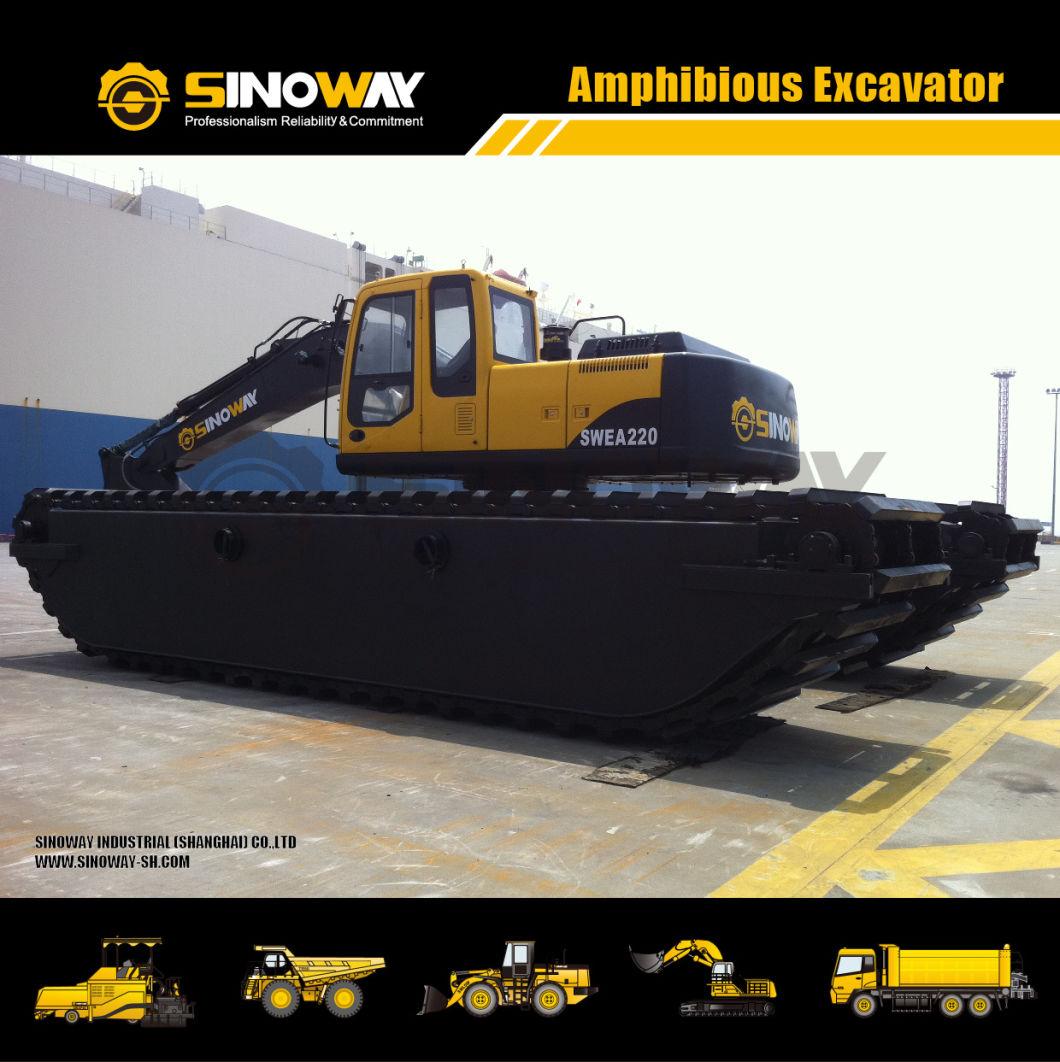

Machine Show
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland
Crawler Amphibious Swamp Buggy Excavator Swea220 Dredging Excavator with Floating Pontoon for Marsh and Wetland
Specifications
Engine
ModelIsuzu/Cummins/Doosan
TypeSix-cylinder,water-cooled turbocharged,mechanical injection
Rated power115KW
Main Technical Specification
Operating weight30000Kg
Standard bucket capacity0.9m3
Slewing speed11rpm
Stick digging force97.64KN
Bucket digging force122.85KN
Travelling speed0~5.4km/h
Grade ability65%
Ground pressure0.014MPa
No. of chains3
Dimensions
Overall length11200mm
Overall width5350mm
Overall height3900mm
Ground clearance1192mm
Length of pontoon8000mm
Width of pontoon1500mm
Height of pontoon1500mm
Stick length2900mm
A: Max. cutting height10577mm
B: Max. dumping height7810mm
C: Max. digging depth5704mm
D: Max. reach10000mm
