Hot Sale Shantui 5ton Cheap Wheel Loader with Best Price SL50W-2
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
Base Info
- Model NO.：SL50W-2
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Power：162kw
- Rated Operating Load：5000kg
- Bucket Capacities (M3)：3
- Operating Weight(Kg)：17100
- Wheelbase (mm)：3250mm
- Maximum Lifting Force：105kn
- Specification：8025*3026*3410mm
- Origin：China
- HS Code：8501109190
- Production Capacity：200
Description

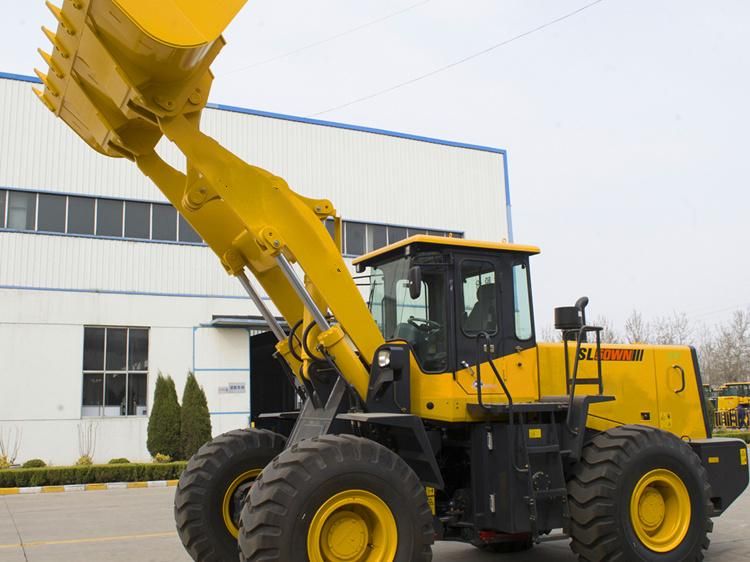

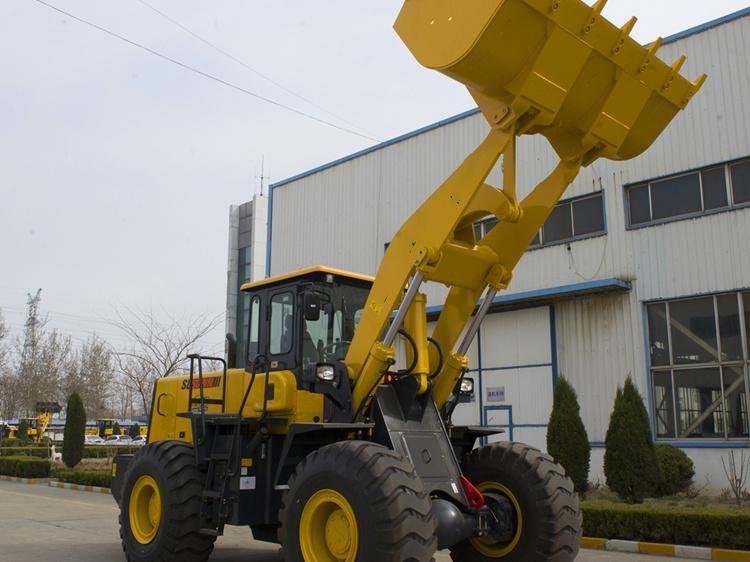

SHANTUI 3M3 BUCKET 5T 4WD WHEEL LOADER SL50W-2
DIMENSIONS
Wheel base
3250mm
Tread
2250mm
Length*Width*Height(mm)
7940x3072x3430mm
Width(outside of tyre)
2840mm
OPERATION SPECIFICATIONS
Rated capcity
3m3
Rated load
5000kg
Operation weight
17000kg
Max breakout force
185kN
Max traction force
162kN
Max. Dumping height
3178mm
Max.dumping reach
1160mm
Static tipping load
100kN
ENGINE
Model
WD615
Type
Straight,six cylinder, four stroke,(Afer cooled),turbocharged,direct injection
Cylinder bore*stroke
6 x 114 x 135mm
Rated power
160kw
Max torque
908N.m
Rated speed
2200rpm
Total displacement
8300ml
Min consumption
220g/kw.h
