• Model NO.：SY215.9
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：21500kg
• Engine Model：Qsb7.0
• Rated Power：124kw
• Fuel Tank：350L
• Travel Speed：5.2,3.5km,H
• Rotation Speed：11.5r,Min
• Gradeability：70 %
• Bucket Digging Force：145kn
• Ground Pressure：46.5kpa
• Hydraulic Pump Model：V90n130
• Maximum Flow：250*2,211*2 L,Mini
• Working Pressure：37MPa.
• Total Lenght：9560mm
• Total Width：2780mm
• Total Hight (Top of Boom)：3040mm
• Transport Package：Nude
• Specification：21.5 Tons
• Trademark：SUNYO
• Origin：Linyi, China
• HS Code：8429521200
• Production Capacity：5000,Year

Basic Info.

Model NO. SY215.9 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Operating Weight 21500kg Engine Model Qsb7.0 Rated Power 124kw Fuel Tank 350L Travel Speed 5.2/3.5km/H Rotation Speed 11.5r/Min Gradeability 70 % Bucket Digging Force 145kn Ground Pressure 46.5kpa Hydraulic Pump Model V90n130 Maximum Flow 250*2/211*2 L/Mini Working Pressure 37MPa. Total Lenght 9560mm Total Width 2780mm Total Hight (Top of Boom) 3040mm Transport Package Nude Specification 21.5 Tons Trademark SUNYO Origin Linyi, China HS Code 8429521200 Production Capacity 5000/Year

Product Description

SUNYO Mini Excavator SY215.9  model with CUMMINS  Engine, V90N130 pump, very Popular model for Customers

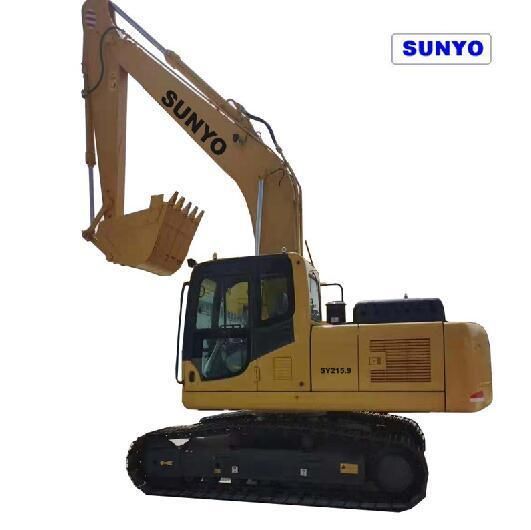

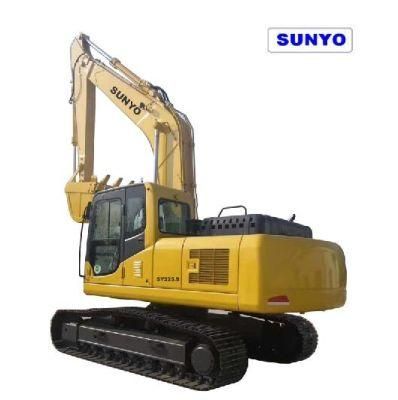

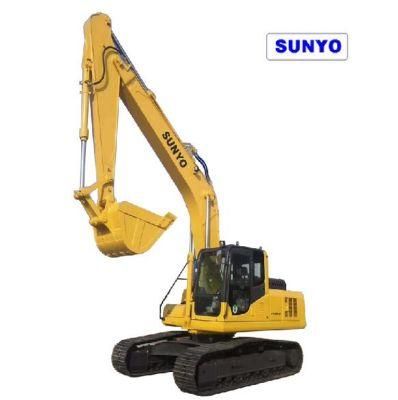

SY215.9 Excavator:
SY215.9 Excavator with Cummin Engine, Operating weight 21500kg, bucket capacity 0.93 cubic meter, Air condion, full hydraulic pilot control operation.

The main configuration details are as follows:
The excavator is the modst popular model for customers,
with special benefit of being able to work in many kinds area.

SY215.9 Excavator Specification:

model	SY215.9
Weight (T)	21.5
Bucket capacity (m3)	0.93
engine model	QSB7.0
Power (kw/r/min)	124/1780
Fuel tank volume (L)	350
travel speed (km/h)	5.2/3.5
Rotation speed (r/min)	11.5
Gradeability(%)	70
Bucket Digging Force (KN) ISO	145
Ground pressure (KPa)	46.5
Hydraulic pump model	V90N130
Maximum flow (L/min)	250*2/211*2
Working pressure (MPa)	37
Hydraulic oil tank volume (L)	246
A-total length (mm)	9560
B-total width (mm)	2780
C-total height (top of boom) (mm)	3040
D-total height (driving top) (mm)	3120
E-Ground clearance of counterweight (mm)	1065
F-Minimum ground clearance (mm)	466
G-tail radius of gyration (mm)	2720
H-Crawler grounding length (mm)	3445
J-track length (mm)	4260
K-gauge (mm)	2180
L-Crawler width (mm)	2780
M-track shoe width (mm)	600
N-Turntable width (mm)	2700
O-Max digging height (mm)	9275
P-Max unloading height (mm)	6560
Q-Maximum digging depth (mm)	6515
R-Maximum vertical wall digging depth (mm)	5915
S-Maximum digging depth when digging 2.5m horizontal plane (mm)	6380
T-Max digging distance	9865
U-Maximum digging distance at ground level (mm)	9680
V-minimum radius of gyration (mm)	3630
W-Maximum height at minimum turning radius (mm)	7670
X-distance from center of rotation to rear end (mm)	2720
Z-counterweight height (mm)	2120
A1-Ground length (during transportation) (mm)	4850
Stick length (mm)	2900
Boom length (mm)	5700

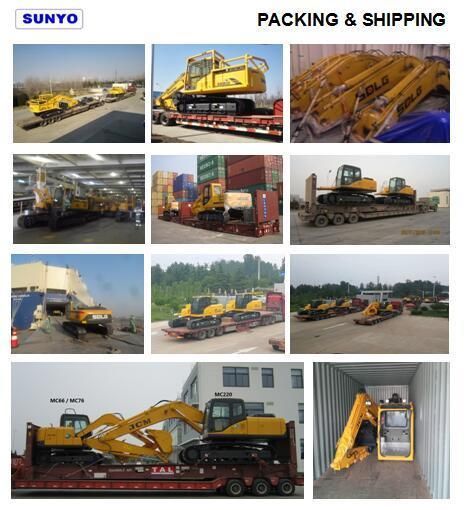

  Packing & Shipping:
We have been engaged in foreign trade for more than 18 years and have very rich experience in shipping. According to the past situation, each of our products is complete and delivered to customers as planned.
Generally, For the SY215.9 Excavator , it also can load in the bulk ship, or Ro-on/Ro-off ship. it according your requirements

Attachments:
Our backhoe loader can be with some more attachements excapt the standard bucket. for exmple the Quick Change, Ripper,  Hamer,  net bucket, And so on. Our Service :
Pre-sale service:
To our customers, before you buy the equipments, we hope to understand your needs, according to your machine requirements and your budget; choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in LINYI, China; we will book hotels, air tickets and take you up from air port.After-sale service:
After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

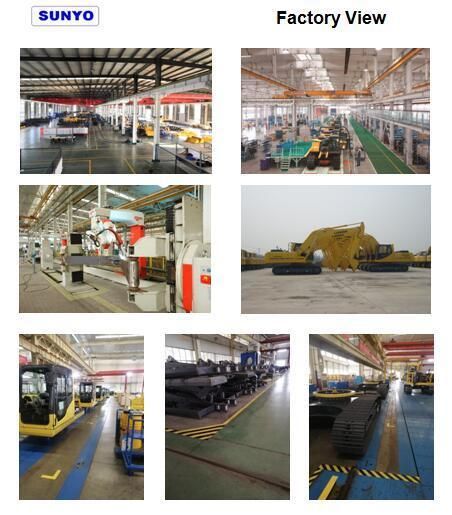

Factory View:

Here show some factory pictures to help you understand our company.  Exhibition:
Here show you some exhibition pictures .   Certificate :

 FAQ:
Q1: Which country do you export to?
Asia: Pakistan, Philippines, Thailand, Myanmar, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.
Middle East: Iran, UAE, Jordan, Oman, Saudi Arabia, Syria, etc.
Europe: Poland, Russia, Ukraine, Belarus, Bulgaria, etc.
Africa: South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America: Paraguay, Colombia, Brazil, Peru, Chile, Cuba, Venezuela, etc.
Oceania: Australia, etc.

Q2: What is the proportion of your products export?
90% of our products are exported to all over the world.

Q3: What is the payment term?
We can discuss with you. Consider for long-term customers we are favorable payment terms TT, L/C, west union. It depends on the cooperation time, country and contract value.

Q4: What kind of logistic service do you supply?
FOB, CIF, C&F

Q5: What spare parts can you supply?
All kinds of spare parts of SUNYO JCM, SDLG, SHACMAN,  SHANTUI, YTO,  etc.
