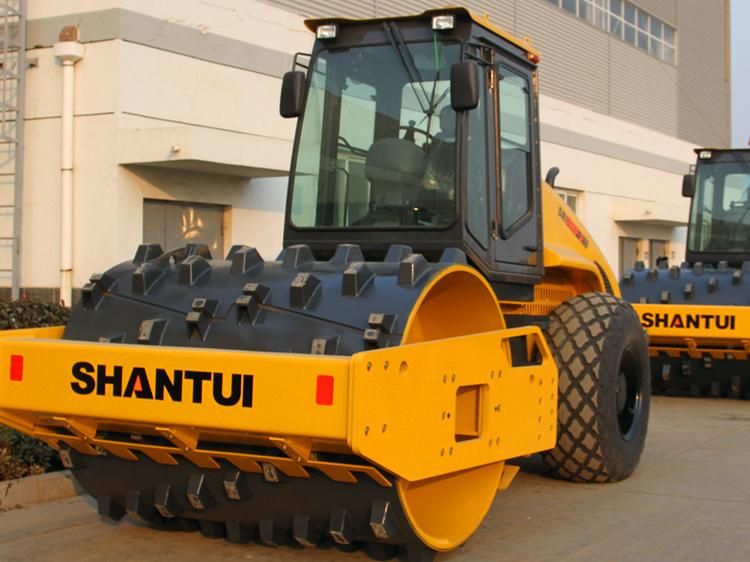

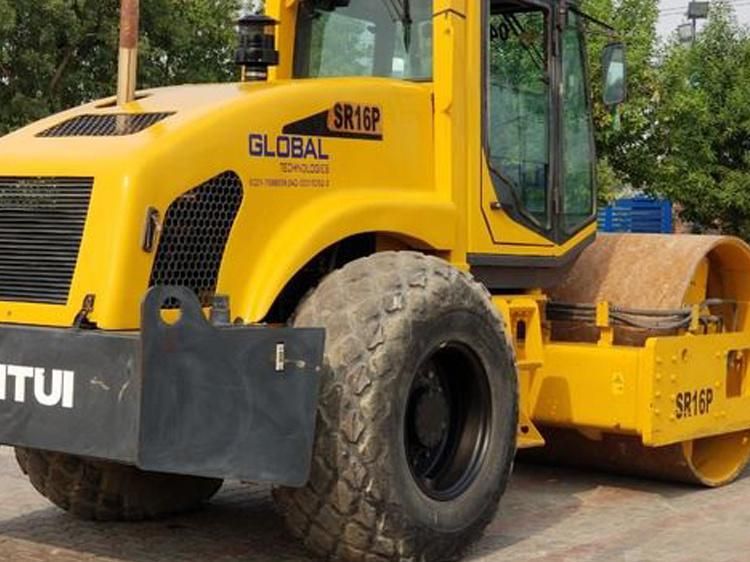

16 Ton Single Drum Mobile Road Roller Construction Machine for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Provide
- Warranty：Provide
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SR16
- Compaction Depth：25cm
- Engine Type：Top
- Travel Speed：25cm,s
- Centrifugal Force：40KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Transport Package：Nude
- Specification：16ton
- Trademark：SHANTUI
- Origin：China
- Production Capacity：5000unit,Year
Description
Parameters
| Parameter name | SR16 |
| Performance parameters | |
| Operating weight (Kg) | 16000 |
| Exciting force (KN) | 335/220 |
| Vibration frequency (Hz) | 28/32 |
| Nominal amplitude (mm) | 1.60/0.65 |
| Gradeability (%) | 45 |
| Engine | |
| Engine model | Weichai WP6G175E22 |
| Rated power/rated speed (kW/rpm) | 129kw/2200rpm |
| Overall dimensions | |
| Overall dimensions of machine (mm) | |
| Driving performance | 6240*2300*3100 |
| Forward speed (km/h) | F1: 0-5.5, F2: 0-10 |
| Reversing speed (km/h) | R1: 0-5.5, R2: 0-10 |
| Chassis System | |
| Wheelbase (mm) | 3150 |
| Tank capacity | |
| Fuel tank (L) | 280 |
| Working device | |
| Compacting width(mm) | 2130 |
