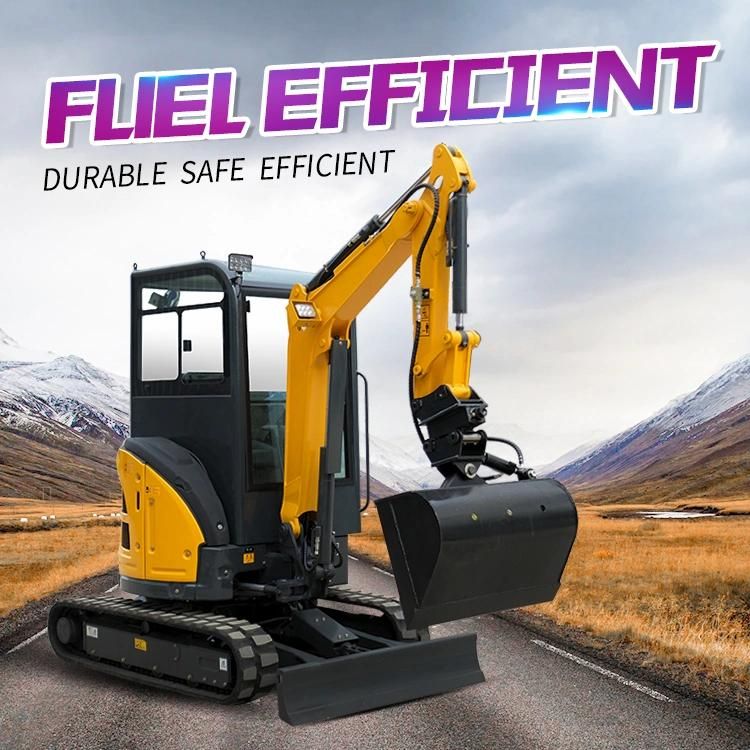

• Model NO.：SD25U
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1m3
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Perkins
• Main Pump：Taifeng
• Model No：SD25u
• Cylinder：Three Cylinder, Water Cooling
• Power：14.7kw
• Walking Motor：Eaton
• Walking Speed：2.5-3.5km,H
• Operating Weight：2420kg
• Bucket Width：450mm(Any Size Can Be Customized)
• Rotary Motor：Eaton Sw2K-195 (USA)
• Transport Package：Wooden Packing

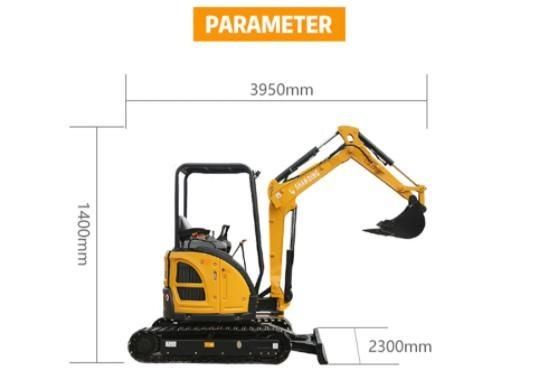

• Specification：3980*1400*2300mm
• Trademark：SHANDING
• Origin：Shandong, China
• HS Code：84295212
• Production Capacity：500sets,Month

Basic Info.

Model NO. SD25U Drive Type Internal Combustion Drive Bucket Capacity 0.1m3 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Model Perkins Main Pump Taifeng Model No SD25u Cylinder Three Cylinder, Water Cooling Power 14.7kw Walking Motor Eaton Walking Speed 2.5-3.5km/H Operating Weight 2420kg Bucket Width 450mm(Any Size Can Be Customized) Rotary Motor Eaton Sw2K-195 (USA) Transport Package Wooden Packing Specification 3980*1400*2300mm Trademark SHANDING Origin Shandong, China HS Code 84295212 Production Capacity 500sets/Month

Product Description

1. Equipped with imported Perkins engine, in line with Euro V emission.

2. The hydraulic system is imported with original packaging and adopts load-sensing technology, which has good operating performance and work efficiency.

3. The tailless small slewing structure is adopted, the tail of the car body will not exceed the track in any state, and the boom has a deflection function, which can be flexibly operated in a narrow area.

4. The chassis is a retractable structure with good passing performance.
We are looking for agents and partners.

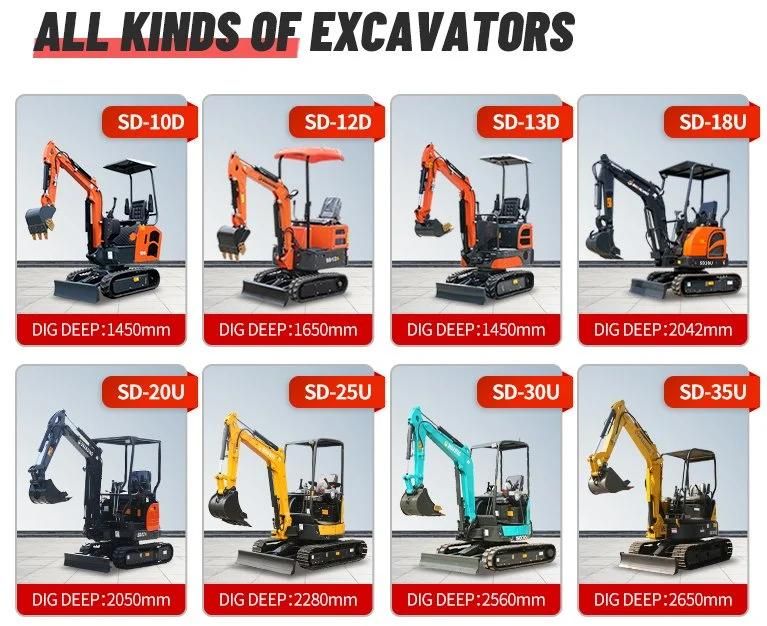

Model	SD10S	SD12S(HOT)	SD15D(HOT)	SD20U
Total Weight	760 kg	1000kg	1013/1035 kg	2000 kg
Rated Power	7.6KW	8.6KW	10.2kw	14.7kw
Engine	Koop192F	Koop 192FA	Koop 192FA	Laidong LD385
Bucket Capacity	0.02 m³	0.028 m³	0.025 m³	0.06 m³
Maximum digging distance	2280 mm	2950 mm	3072mm	3600mm
Max. Digging Depth	1300 mm	1650 mm	1336 mm	1800 mm
Max. Digging Height	2350 mm	2650 mm	2637mm	3400mm
Gradeability	35°	25/30°	35°	35°
Overall Width	860 mm	925mm	930 mm	1100-1300 mm



Model	SD17B	SD25U(HOT)	SD30U(HOT)	SD40B
Total Weight	1600 kg	2500kg	2870kg	3650 kg
Rated Power	14.8KW	14.7KW	14.7kw	34w
Engine	laidong/yanmar	perKins403d-11	yanmar3Tnv88	changchai490
Bucket Capacity	0.06 m³	0.1 m³	0.075 m³	0.2 m³
Maximum digging distance	3600 mm	4150 mm	4375mm	4730mm
Max. Digging Depth	1950 mm	2550mm	2560mm	3100 mm
Max. Digging Height	3300 mm	2530 mm	3856mm	4500mm
Gradeability	35°	35°	35°	35°
Overall Width	860 mm	925mm	1540 mm	1700 mm

Features:
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical, and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

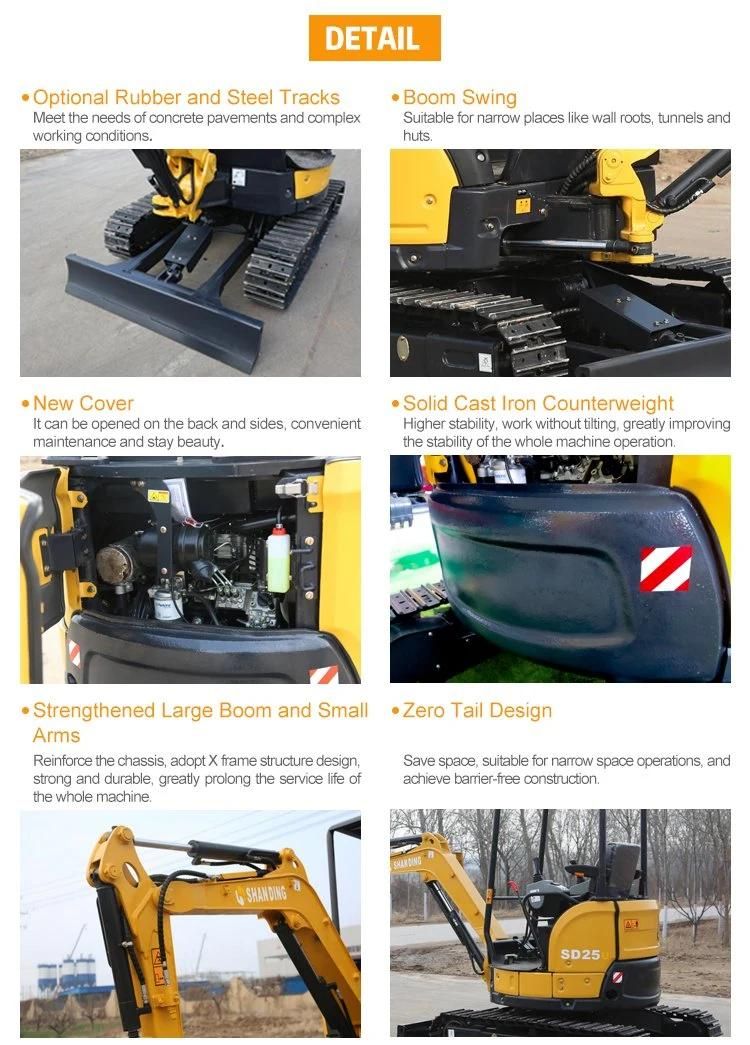

We Pay More Attention To Details, Details Are Our Quality
1. It has excellent work efficiency and cost performance.
2. The standard bulldozer can level the site and backfill the earth to increase the stability of the machine.
3. Simple, small and flexible, easy to transport, can work in small sites, especially suitable for orchards, such as kiwi, vineyards, oranges, navel oranges, digging trenches, fertilizing, and weeding.
4. It has multiple functions of mining, crushing, removing hooks, drilling, and earthwork, and can quickly replace accessories, greatly improving the utilization rate of the machine.
Options:

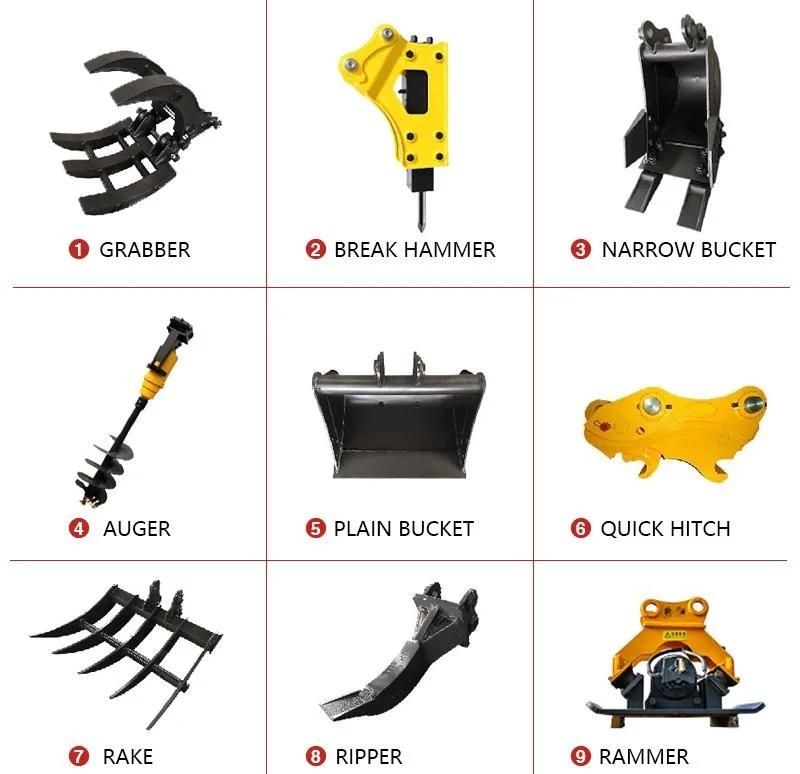

1. In addition to the standard bucket, we also provide more auxiliary tools for you to choose from, including Hydraulic Breaker, Toothless Bucket from 50cm to 120cm, Auger. . . . . .
2. Color and style can be customized

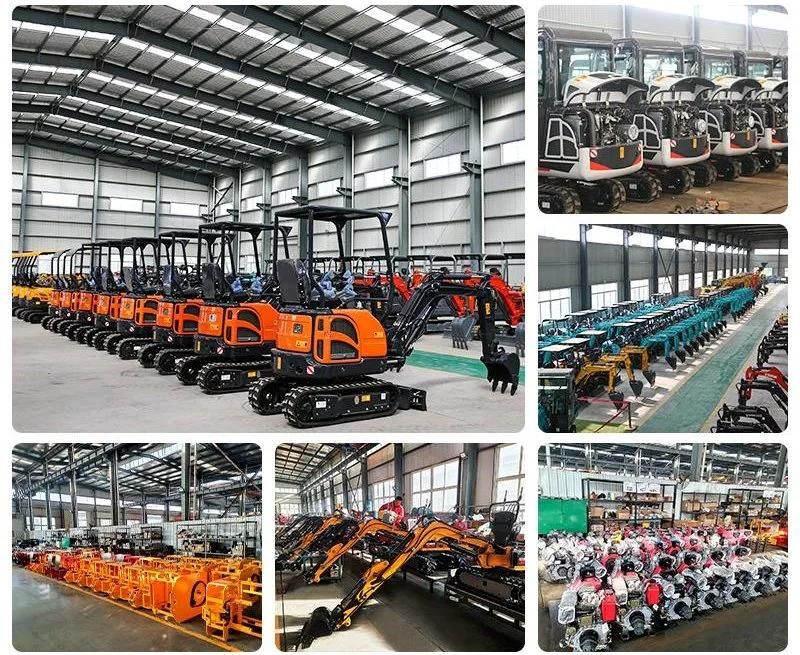

Factory introduction:
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of shanding Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest.

We are a trustworthy company
Our company always pays attention to customer evaluation. The picture below is the unanimous praise of our customers worldwide.
Committed to creating high-quality services, becoming an enterprise trusted by customers, proud of employees, and respected by society.
Realize customer dreams and continue to create maximum value for customers.
