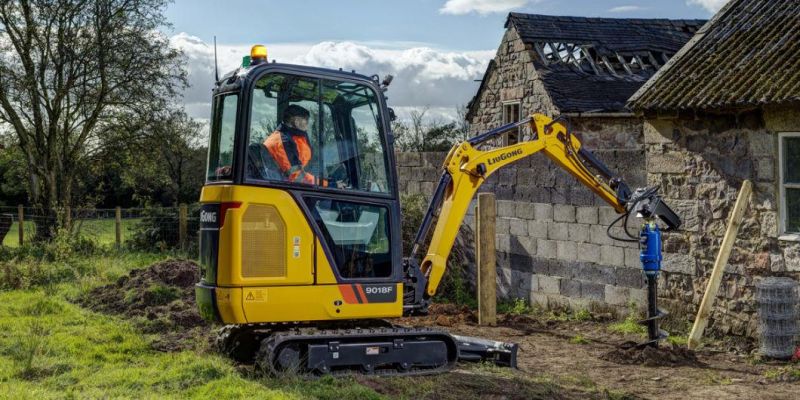

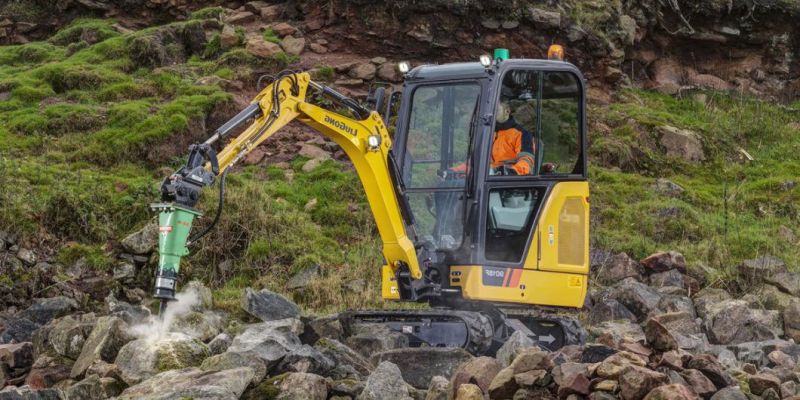

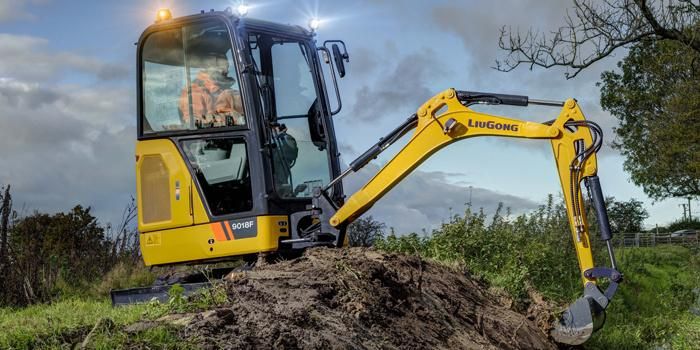

China Brand Mini Excavator 9018f with 13.4 Kw/2200rpm Power
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：9018F
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.015-0.056 Cbm
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight with Cab：1900 Kg
- Operating Weight with Canopy：1800 Kg
- Engine Power：13.4 Kw (18 HP) @ 2,200 Rpm
- Maximum Travel Speed (High)：4.5 Km,H
- Maximum Travel Speed (Low)：2.7 Km,H
- Maximum Swing Speed：9.5 Rpm
- Arm Breakout Force：20kn
- Arm Breakout Force Power Boost：9 , 8 Kn
- Bucket Breakout Force：16 Kn
- Track Shoe Width (Std)：230 mm
- Boom：1685 mm
- Digging Depth：2290 mm
- Emission：EU Stage V , Tier 4f
- System Maximum Flow55 L/Min ( 14.5 Gal/M：55 L,Min ( 14.5 Gal,M)
- System Pressure：21 MPa
- Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
- Specification：3707 mm*980 , 1290 mm*2350 mm
- Origin：China
- Production Capacity：300piece,Month
Description
