• Model NO.：K500x146x35
• Material：Rubber and Steel
• Width：500mm
• Pitch：146mm
• Links：35(Can Be Customized)
• Length：5110mm
• Weight：350kg
• Color：Black
• Transport Package：Bare Packing or Wooden Pallet
• Specification：K500x146x35
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. K500x146x35 Material Rubber and Steel Width 500mm Pitch 146mm Links 35(Can Be Customized) Length 5110mm Weight 350kg Color Black Transport Package Bare Packing or Wooden Pallet Specification K500x146x35 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 Pieces/Month

Product Description

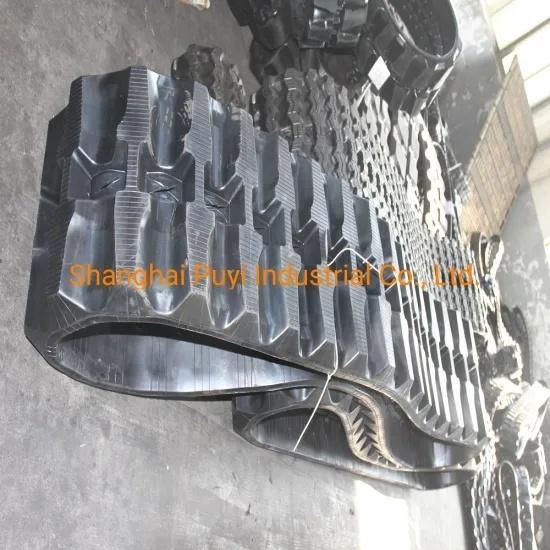

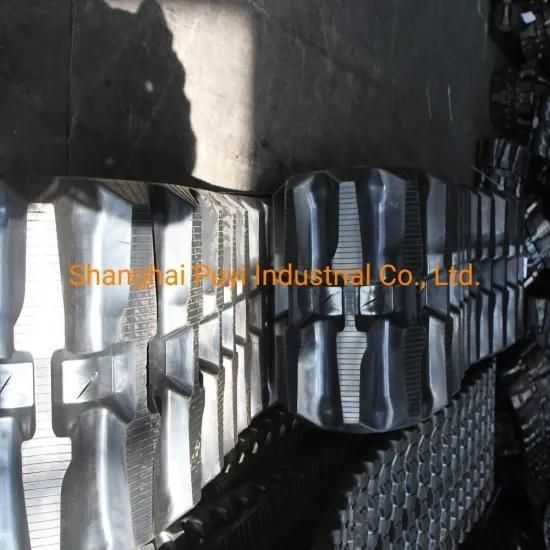

Rubber Tracks K500x146x35 fits for Komatsu D21A-7 D20P



Applicable machines	various kinds of Excavators
Material	rubber and steel
Specification	K500x146x35
Installation position	Installed on the bulldozer   Komatsu D21A-7 D20P

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks .

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks .

3. Rubber tracks permit machines to travel at a higher speed than steel tracks .

4. Rubber tracks insulated machine and operator from vibraion, extedin the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.



The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

Parameters:

Width*Pitch length(mm)

Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

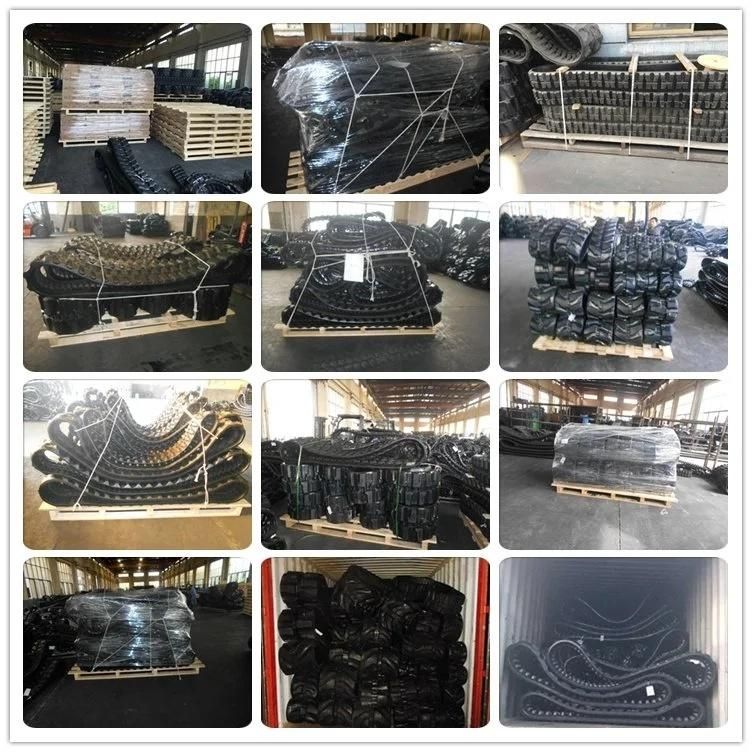

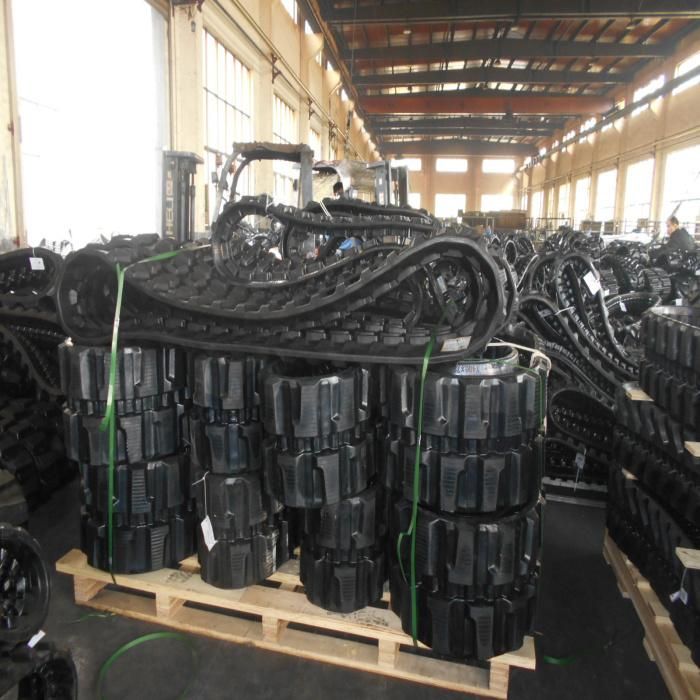

Warehouse:
