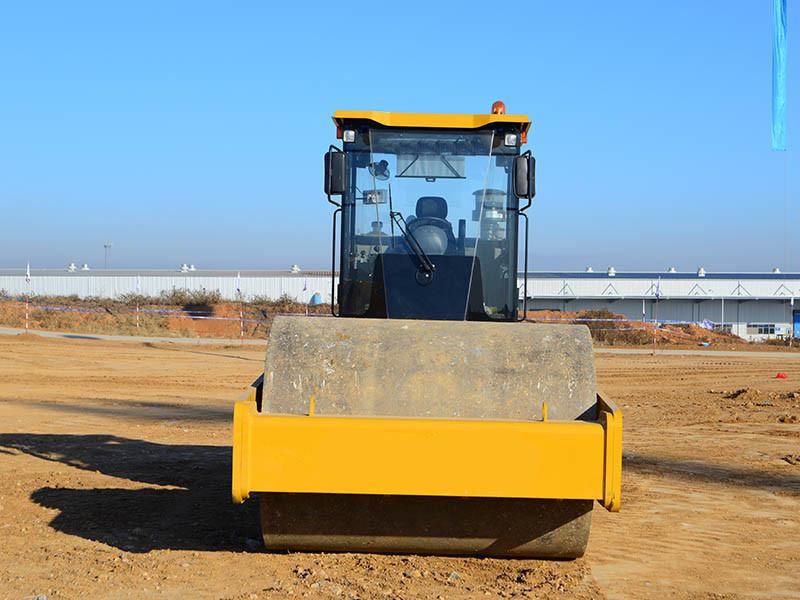

New Lutong Full Hydraulic Single Drum Vibratory Road Roller for Sale 10 Ton Ltd210h
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Road Roller
- Working Method：Steel Wheel
- Axle：Single Drum
- Grinding Wheel Type：Light Grind
Base Info
- Model NO.：LTD210H
- Compaction Depth：30cm
- Engine Type：Diesel Engine
- Travel Speed：30cm,s
- Centrifugal Force：15KN
- Certification：CS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Operating Weight：10000kg
- Static Pressure (N/Cm)：461
- Rated Power：110kw
- Speed (R/Min)：2000
- Drum Width (mm)：2130mm
- Max. Travel Speed：12km,H
- Specification：5900*2280*3050 mm
- Origin：China
- HS Code：8501109190
- Production Capacity：200
Description
MODEL
LTD210H
Operating mass
Kg
10000
Static linear load
N/cm
285
Vibrating amplitude
Mm
1.8/0.9
Vibrating frequency
Hz
29/35
Centrifugal force
KN
240/120
Max. Travel speed
Km/h
12
Grade ability
%
35
Turning radius
mm
6500
Overall dimension
mm
5820x2278x3050
Ground clearance
mm
472
Vibration drum width
mm
2100
Drum rim thickness
mm
24
Wheelbase
mm
3160
Diesel model
6BT5.9
Diesel power
Kw
110
