Hot Sale High Quality Digger Small Excavator 9018f
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.5~1.0m³
Base Info
- Model NO.：9018F
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight with Cab：1900 Kg
- Engine Power：13.4 Kw
- Bucket Breakout Force：16 Kn
- Transport Package：Nude
- Specification：3707x1290x2350
- Trademark：Oriemac
- Origin：China
- Production Capacity：350units,Month
Description
Basic Info.
Model NO. 9018F Size Small-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight with Cab 1900 Kg Engine Power 13.4 Kw Bucket Breakout Force 16 Kn Transport Package Nude Specification 3707x1290x2350 Trademark Oriemac Origin China Production Capacity 350units/MonthProduct Description
Hot Sale High Quality Digger Small Excavator 9018FContact Person: Vicky Zhu
Product Specifications
With high-visibility cabs, protected by ROPS & TOPS
Save more with the optional AUTO-IDLE speed function
When space is tight, the neat compact design with short tail swing gets you to work
Control is everything. Load sensing hydraulics deliver precise and smooth operation for excellent grading performance
The fuel efficient, low noise and low emission Stage V certified Yanmar 3TNV80F-SSLY engine gives the operator the power to perform
Product Parameters
Operating weight with cab
1900 kg
Operating weight with canopy
1800 kg
Engine power
13.4 kW (18 hp) @ 2,200 rpm
Bucket capacity
0.015-0.056 m³
Maximum travel speed (High)
4.5 km/h
Maximum travel speed (Low)
2.7 km/h
Maximum swing speed
9.5 rpm
Arm breakout force
20 kN
Arm breakout force Power boost
9 / 8 kN
Bucket breakout force
16 kN
Shipping length
3707 mm
Shipping width
980 / 1290 mm
Shipping height
2350 mm
Track shoe width (std)
230 mm
Boom
1685 mm
Arm
1070 mm
Digging reach
3910 mm
Digging reach on ground
3850 mm
Digging depth
2290 mm
Vertical wall digging depth
1820 mm
Cutting height
3385 mm
Dumping height
2370 mm
Minimum front swing radius
1660 mm
Dozer-up
240 mm
Dozer-down
240 mm
Swing boom left rotation
72 °
Swing boom right rotation
58 °
Model
Yanmar 3TNV80F-SSLY
Emission
EU Stage V / Tier 4f
System maximum flow
55 L/min ( 14.5 gal/min)
System pressure
21 MPa

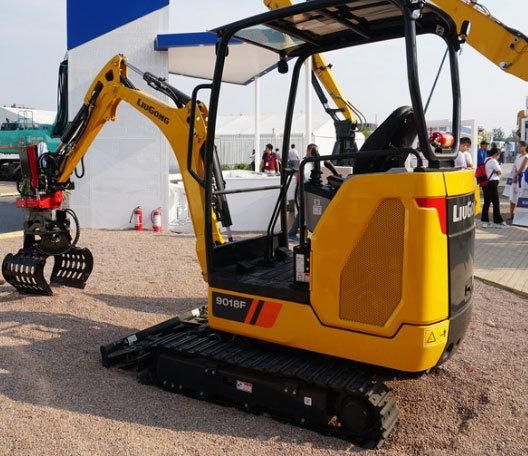

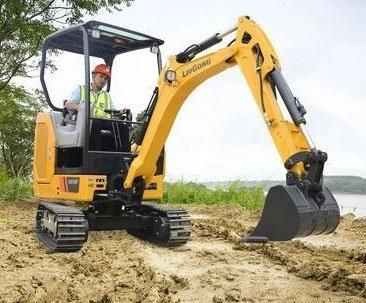

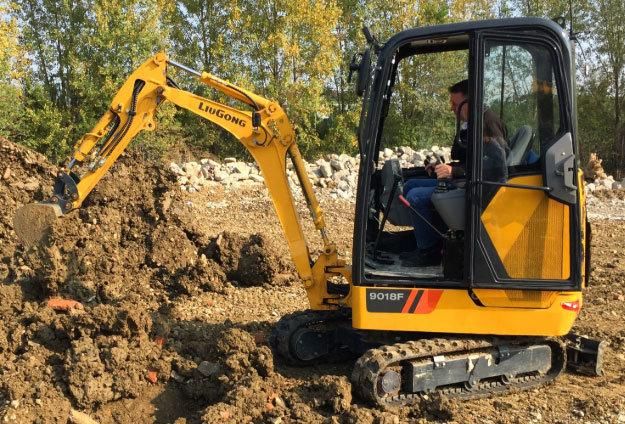

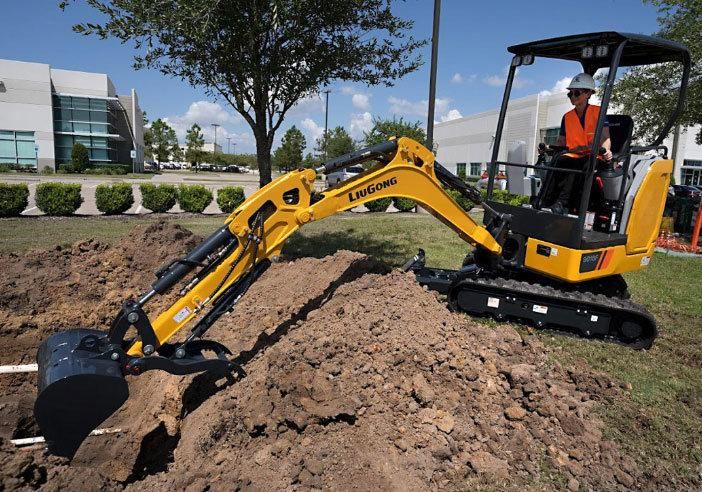

Product Show
