• Model NO.：RP803
• Certification：ISO9001: 2000, CE
• Condition：New
• Transport Package：Nude
• Specification：140kw
• Origin：Jiangsu China
• HS Code：84292090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. RP803 Certification ISO9001: 2000, CE Condition New Transport Package Nude Specification 140kw Origin Jiangsu China HS Code 84292090 Production Capacity 1000 Units Per Month

Product Description

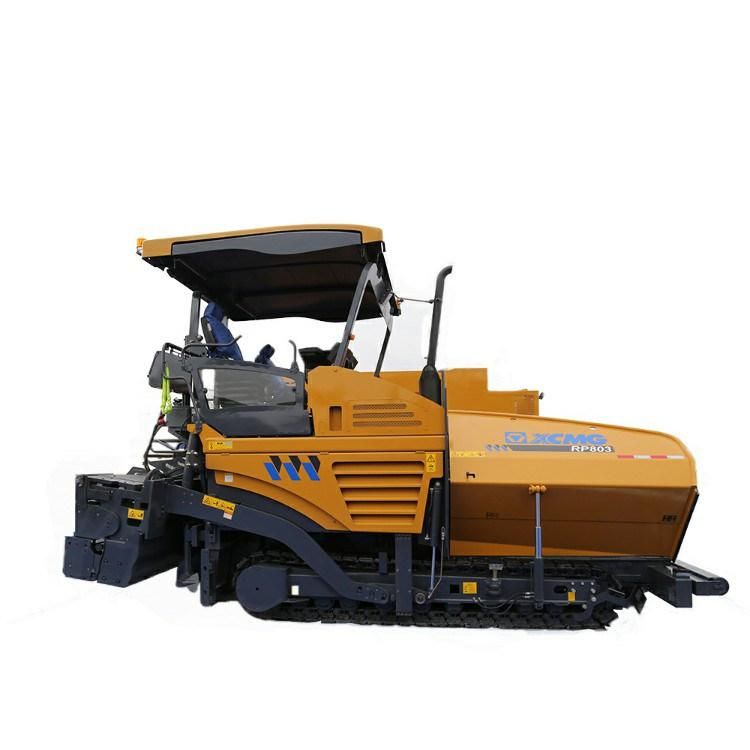

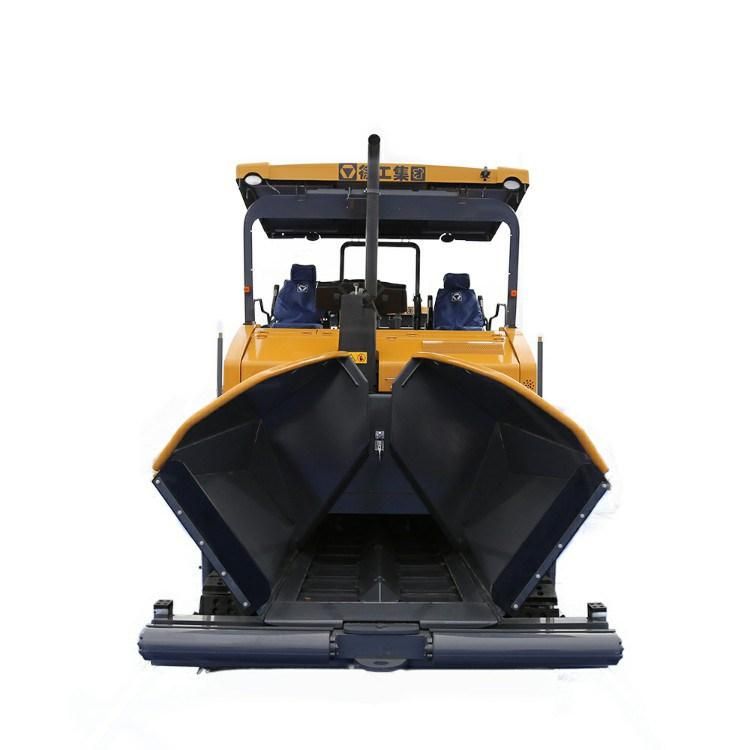

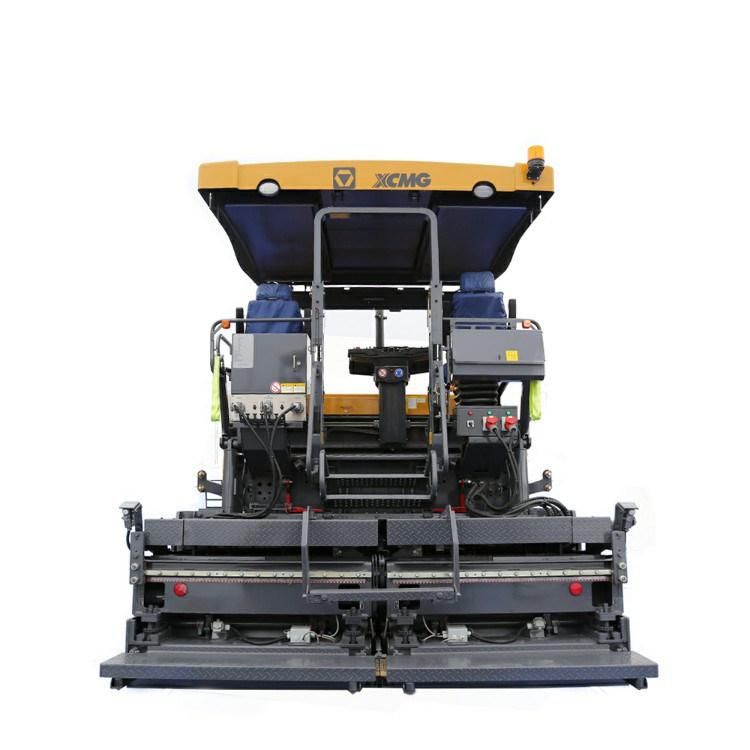

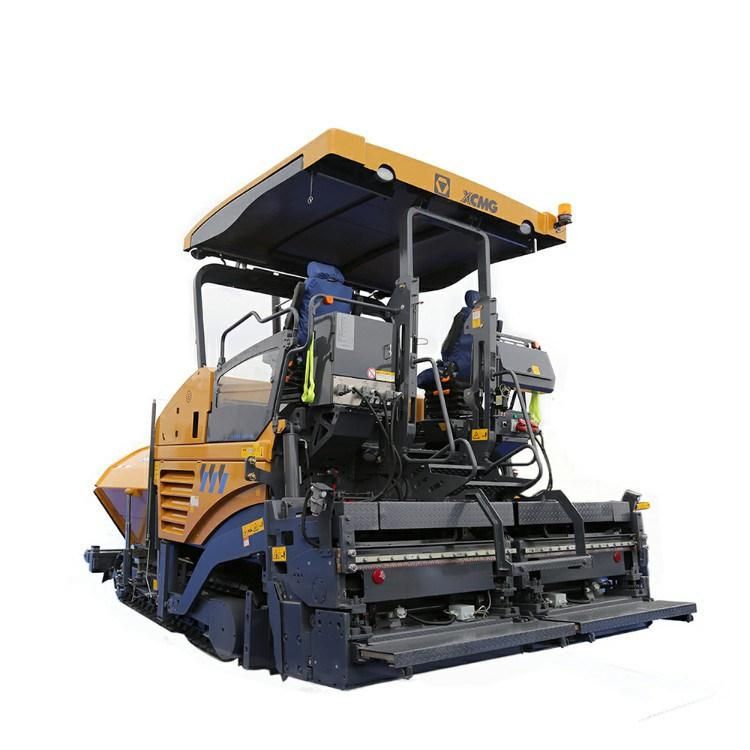

China 8m Asphalt Concrete Paver RP803 Road Paver in Promotion
Product description

 Driving left and right independent drive, microcomputer control, left andright input and output using ultrasonic sensor control technology. The levelingsystem uses electronic leveling technology. The hydraulic telescoping screeduses single vibration, pulse vibration and electric heating technology toprotect the environment and improve the life of the screed bottom plate. ,Centralized lubrication system.The use of advanced mature and reliableShangchai new generation of four-valve SC7H water-cooled engine, powerfulpower, low fuel consumption. Dividing blades use highly wear-resistant alloymaterial. The console can intuitively display various work functions, paving,driving speed, and can be installed around. The machine has a high degree ofautomation, simple and convenient operation, high operating efficiency.

Parameter

Item	Unit	RP803
Basic paving width	m	3
Max. paving width	m	8.15
Max. paving thickness	mm	400
Paving speed	m/min	0~20
Travel speed	km/h	0~3.0
Theoretical productivity	t/h	700
Hopper capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Cross slope error	%	±0.03
Crown adjustment range	%	0~3
Diesel engine model		SC7H190
Diesel engine power	kw	140
Diesel engine speed	r/min	2000
Diesel oil tank capacity	L	230
Overall weight	t	23.3-27.8
Dimension	mm	7040×3000×3160
Vibration frequency	Hz	68~71
