• Model NO.：L930
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Nude Cargo
• Specification：5460*1900*2800mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. L930 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Cargo Specification 5460*1900*2800mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description


The Parameters of L series


	L920	L928	L930	L938	L928 low shed	L930 low shed
bucket capacity	0.60m³	0.80m³	0.90m³	1.0m³	0.80m³	0.90m³
rated load	1500kg	1600kg	1800kg	2200kg	1800kg	1800kg
operating weight	2700kg	3200kg	3350kg	4950kg	3400kg	3500kg
overall dimension	4960X1700X2700mm	5460X1700X2800mm	5460X1900X2800mm	5900X2050X2950mm	5460X1700X2250mm	5460X1900X2250mm
bucket width	1700mm	1700mm	1900mm	2000mm	1800mm	1900mm
Max. dumping height	2900mm	3200mm	3200mm	3500mm	3000mm	3000mm
Max. dumping distance	740mm	700mm	700mm	750mm	700mm	700mm
turning radius	4500mm	4500mm	4500mm	4750mm	4500mm	4500mm
Engine Model	Sida490	Sida490	Huafeng 4102	sida 4102 turbo	Sida490	Sida493 turbo
rated power	42KW	42KW	65KW	76KW	42KW	58KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265 split	automatic 265 split	automatic 265 split	automatic 265	automatic 265
axle	AWD, Isuzu	AWD, Isuzu	AWD, small hub reduction	AWD, medium hub reduction	AWD, Isuzu	AWD, small hub reduction
tyre size	8.25-16	20.5-16	20.5-16	16/70-20	20.5-16	20.5-16

The Product Advantages


1.High Efficiency
Double main speed shifts power on demand

2.Easy Operation
Mature mechanical hydraulic control adjustment, easy and accurate operation

3.Durafble and Reliable
Electrophoresis paint treament,robot welding

4.Safety and Energy-saving
The overall design ensures that the balance and coordination of various components and safe working.

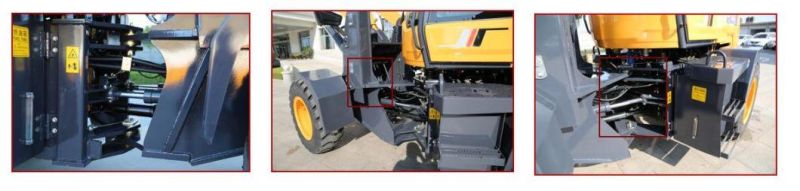

5.Durable and Newly-design Articulation
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small

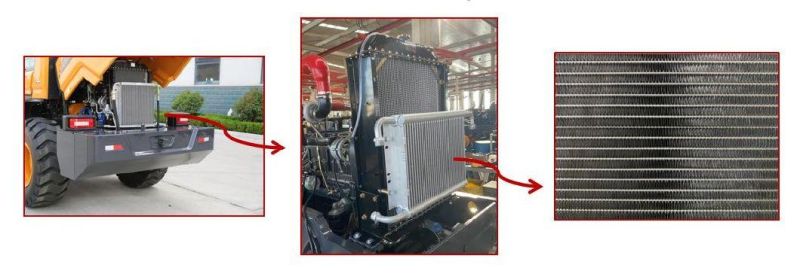

6.Cooling systerm
•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

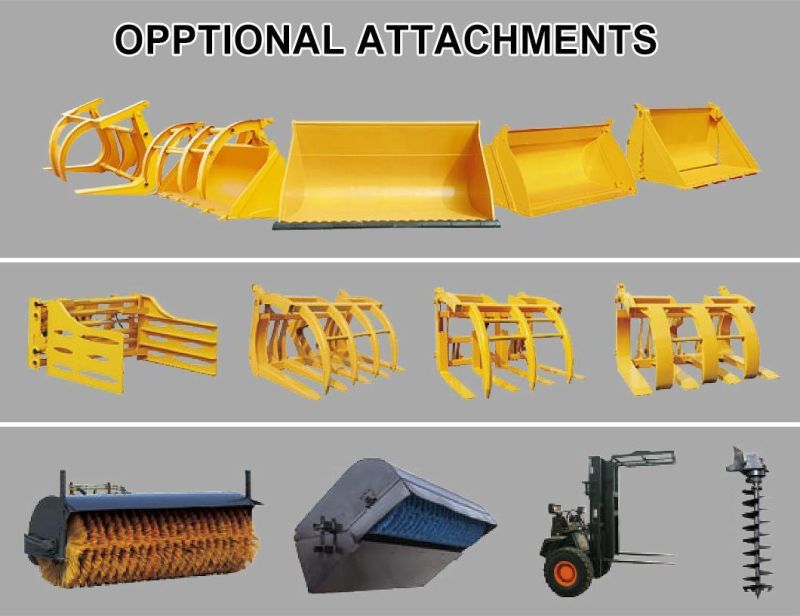

Optional Attachments

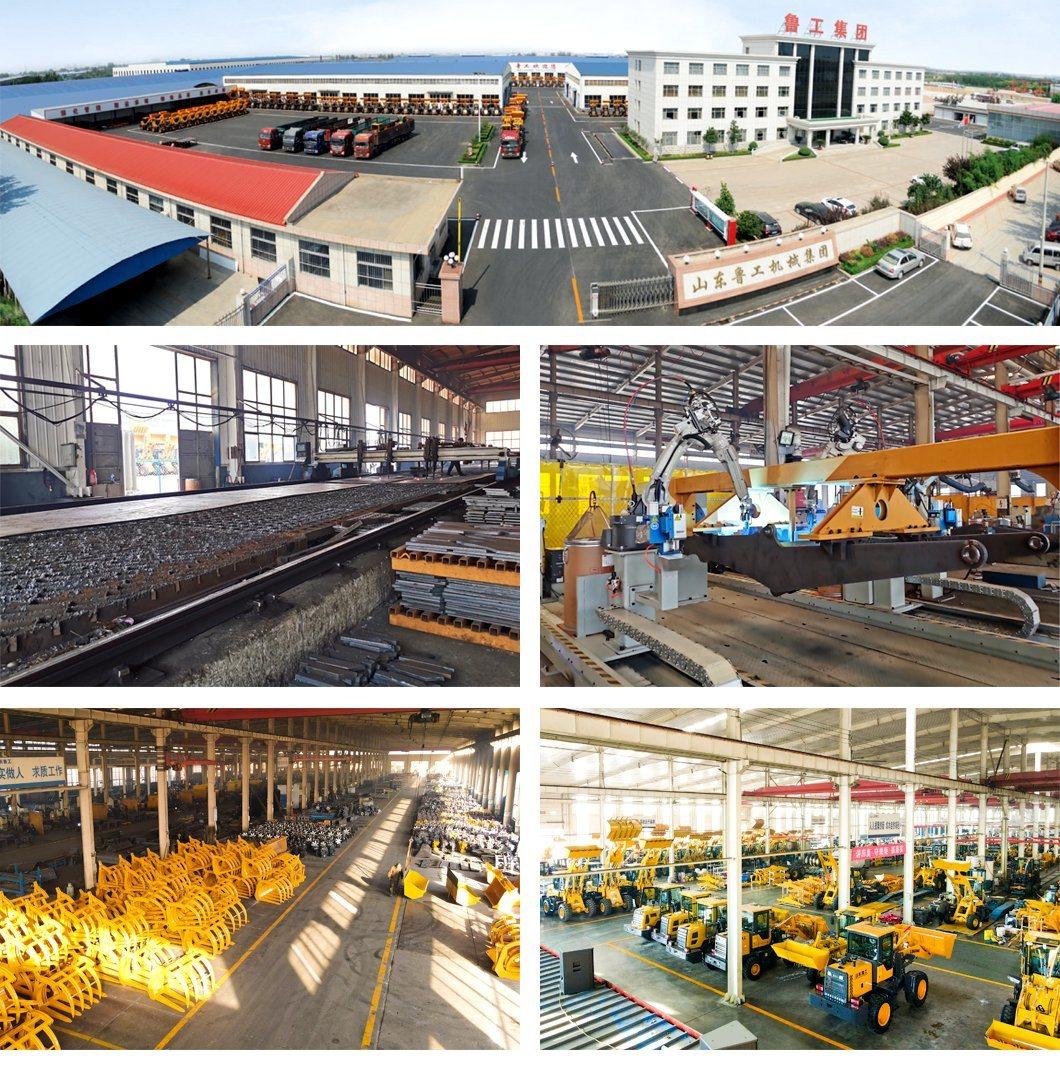

The Company Profile
•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year


The Basic Qualification

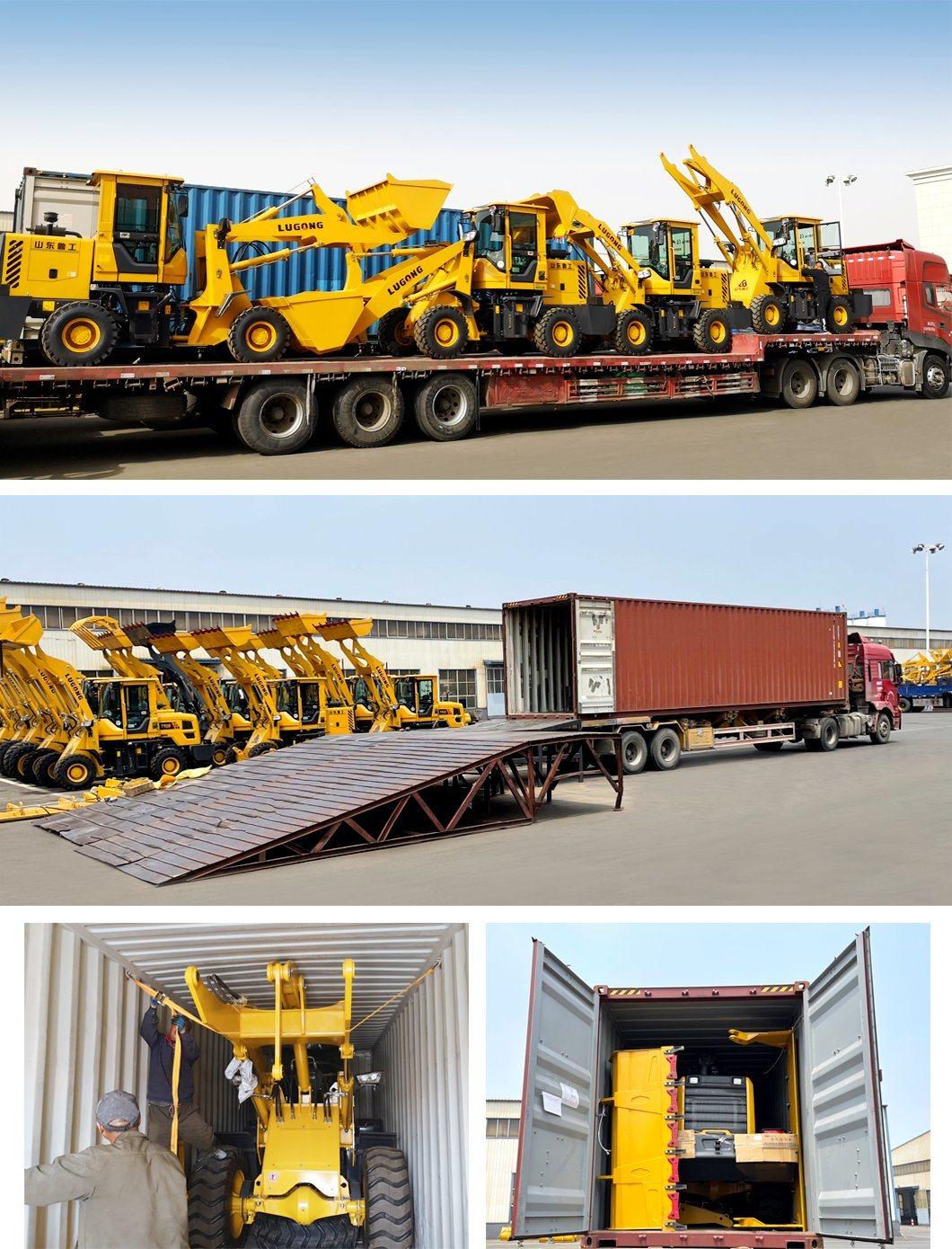

Packing & Delivery
