• Model NO.：LG940
• Type：Small Loader
• OEM：Available
• Tire：16,70-24
• Operating Weight：5750kg
• Bucket Capactiry：1.0cbm
• Transport Package：Nude Cargo
• Specification：6250*2150*2950mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. LG940 Type Small Loader OEM Available Tire 16/70-24 Operating Weight 5750kg Bucket Capactiry 1.0cbm Transport Package Nude Cargo Specification 6250*2150*2950mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

 LUGONG Small Turning Radius Construction Equipment Mini Wheel Loader with Ce


The parameter of LG series


	LG930	LG938	LG939	LG940	LG946
bucket capacity	0.90m³	1.0m³	1.0m³	1.0m³	1.3m³
rated load	1800kg	2000kg	2200kg	2200kg	2500kg
operating weight	3500kg	4500kg	4950KG	5750kg	7200kg
overall dimension	5340X1900X2750mm	6000X2050X2950mm	6200X2150X2950mm	6250X2150X2950mm	6540X2150X3100mm
bucket width	1900mm	2000mm	2200mm	2200mm	2400mm
Max. dumping height	3200mm	3500mm	3500mm	3800mm	3800mm
Max. dumping distance	650mm	750mm	800mm	800mm	650mm
turning radius	4900mm	4500mm	4500mm	6000mm	6000mm
Engine Model	Huafeng 4102	sida 4102 turbo	Yuchai 4105 turbo	Yuchai 4105 turbo	Yuchai 6105 turbo
rated power	65KW	76KW	85KW	85KW	92KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265 split	automatic 265 split	automatic 280 split	automatic 280 split	automatic 300 split
axle	AWD, small hub reduction	AWD,LG2.5T big hub reduction 2.5T	AWD, LG2.5T big hub reduction 2.5T	AWD, LG2.5T big hub reduction 2.5T	AWD,LG 2.8T big hub reduction 2.8T
tyre size	16/70-16	16/70-20	16/70-24	16/70-24	17.5-25

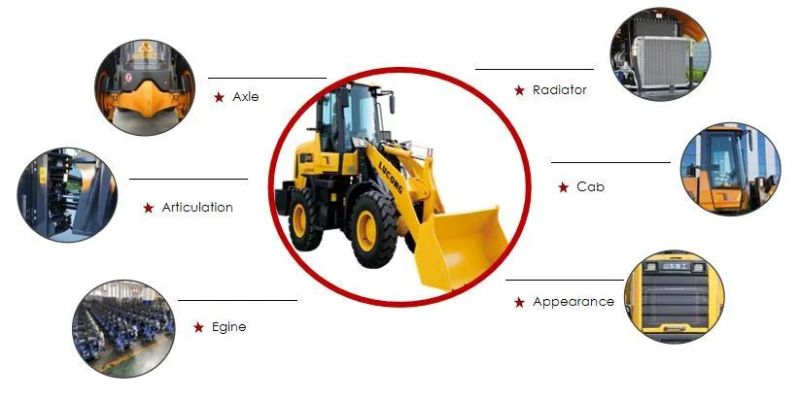

Advantages of LG940


1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

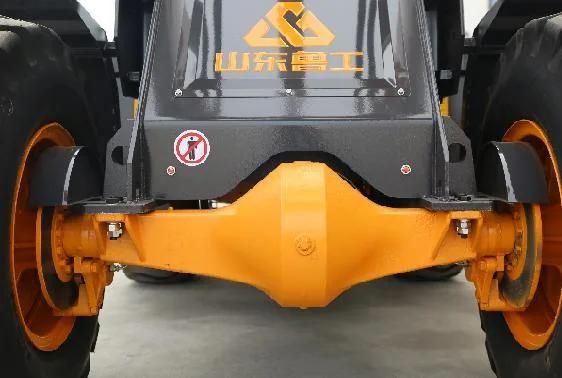

2.Axle

•Special patented axle with big hub reduction.
•Speed ratio 7:41, large torque and more power, speed acceleration fast.
•Casting steel, 200kg heavier than other brands. Stronger and more durable.
•Used on light-heahy trucks, high precision and low failure rate.

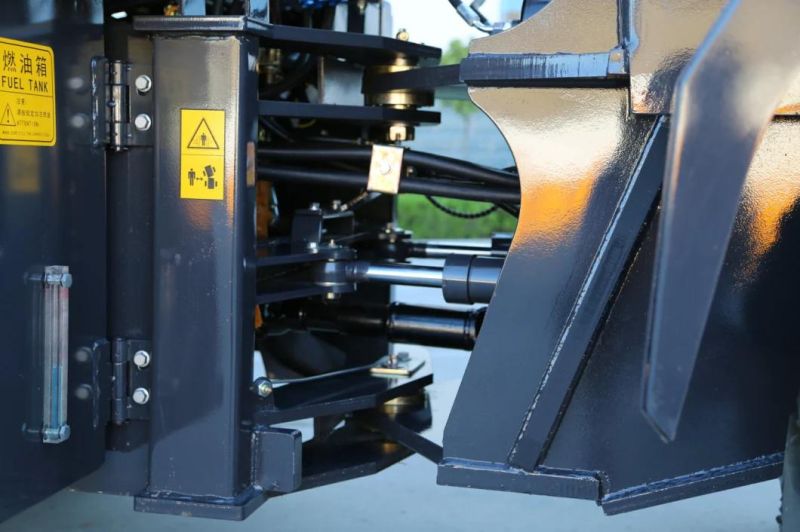

3.Articulaiton

•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

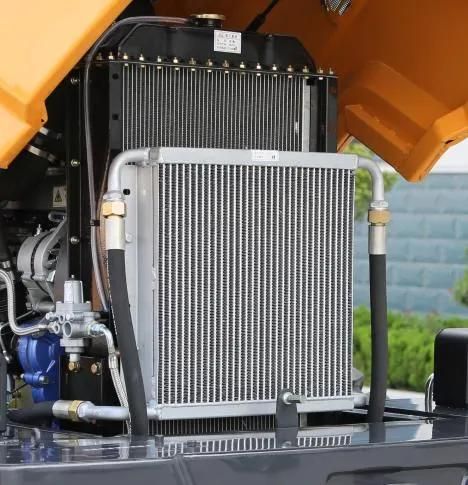

4.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

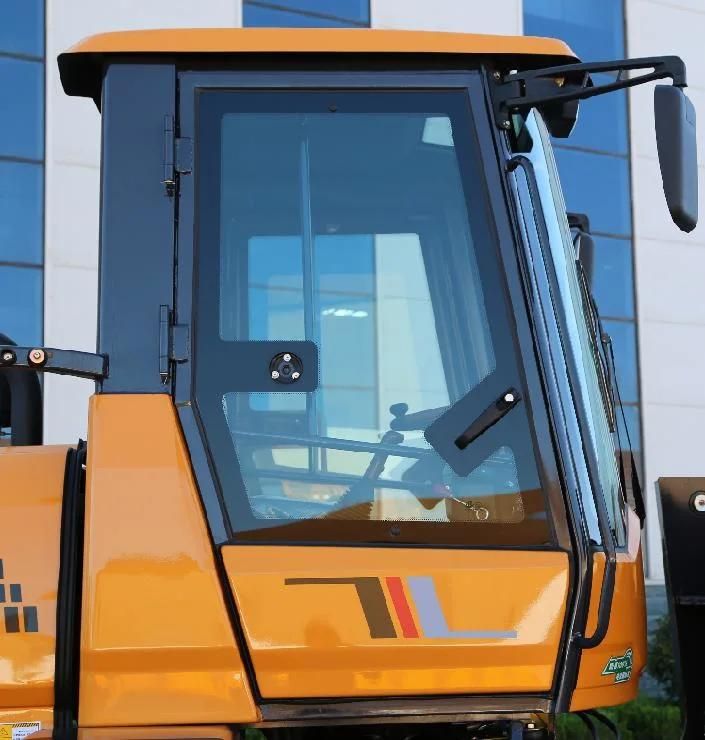

5.Cab

•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.



6.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;

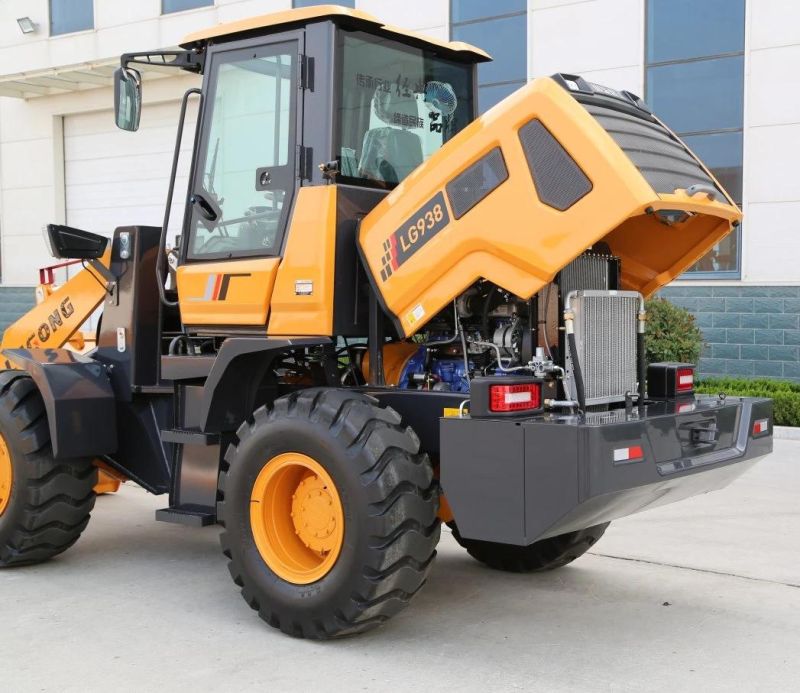

•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.



Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life;

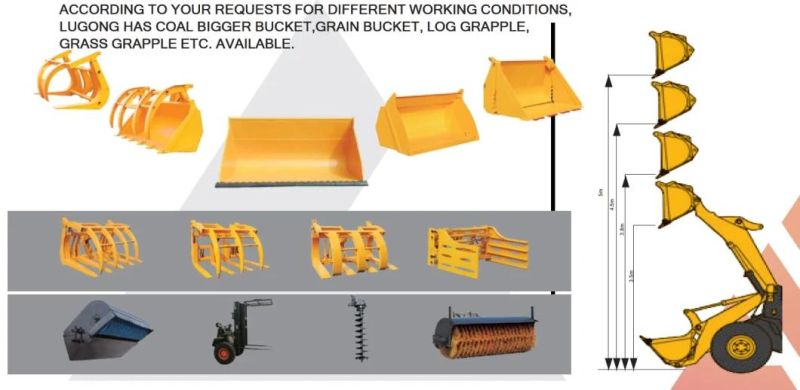

Attachements



Basic Qualification

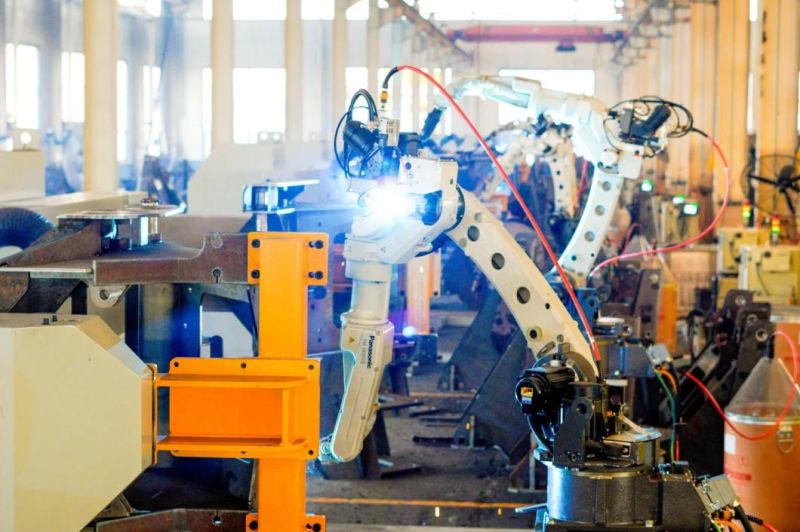

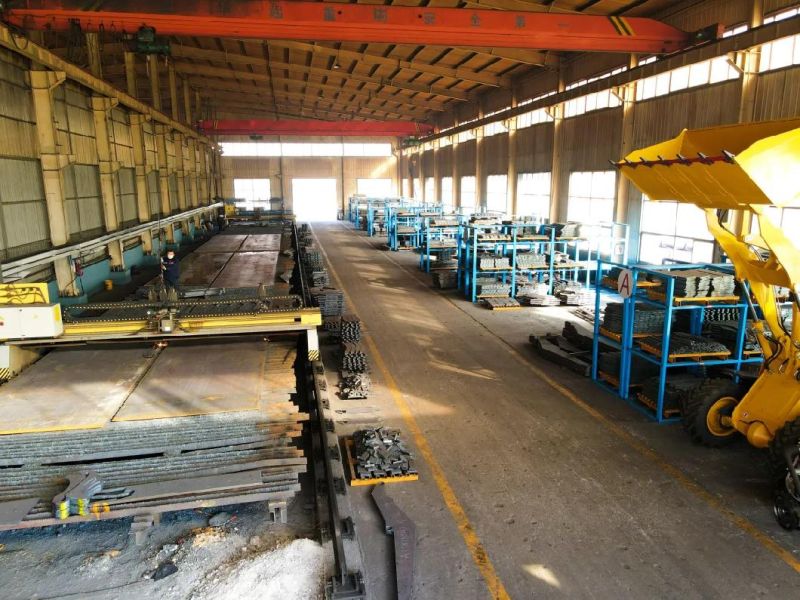

Production Line



The Company Profile

  Shandong Lugong Machinery CO.,Ltd was founded in 2000.which is located at Yantai Shandong City.It's the backbone enterprise of construction machinery national wide with fixed asset 500 million Yuan.It covers a land of 200 thousand square meter and 1100 employees,88 of whom are engineers and technicians.
Our company mainly produces wheel loaders.Products are mainly sold to over to 20 provinces in China and exported to dozens of countries and regions in Africa,South Asia,South America and Russia.The quality and performance of our small farm-use loaders and construction trippers are in leading position of the industry throughout the nation and well received by users.
