- Model NO.:320*55*88
- Link:88(Can Be Customized)
- Warranty:12 Months Under Normal Use
- Transport Package:Bare Packing or Wooden Pallets
- Specification:320X55X88
- Trademark:No Mark or As Buyer′s Requests
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:5000PCS,Month
Skid Steer Loader

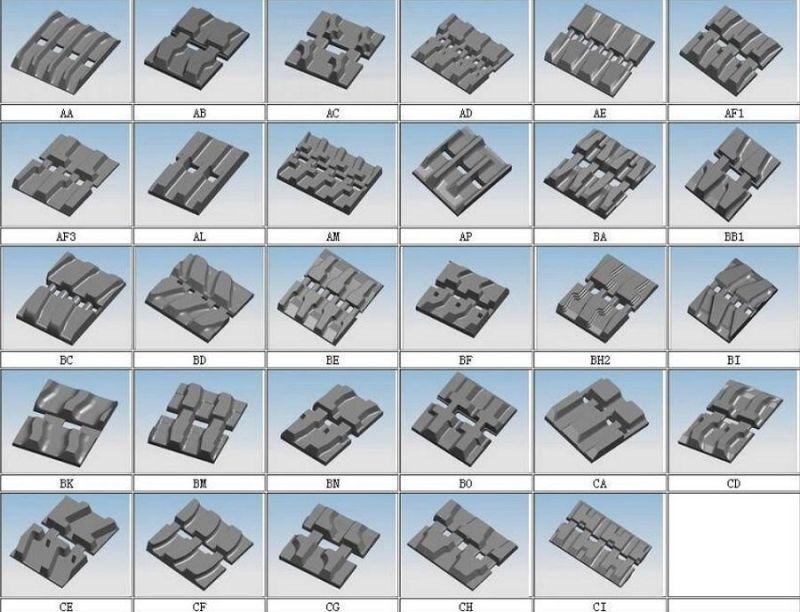

Width*Pitch length(mm) | Link | A | B | C | D | F | PATTERN | GUIDING |
B182*72A | 31-43 | 23 | 63 | 29 | 22 | 10 | AE | A2 |
B250*72A | 34-60 | 23 | 63 | 29 | 22 | 10 | AE | A2 |
B250*72CT | 34-60 | 29 | 76 | 38 | 30 | 21 | | A2 |
E250*72 | 34-60 | 29 | 76 | 36 | 27 | 22.5 | CH | A2 |
B300*84 | 48-52 | 48 | 95 | 48 | 36 | 25 | AE | A2 |
T300*86K | 48-52 | 36 | 84 | 43.5 | 31.5 | 22 | AA | A2 |
B320*84 | 50-53 | 46 | 96 | 48 | 34 | 25 | AE | A2 |
T320*86K | 48-52 | 36 | 84 | 43.5 | 31.5 | 25 | CH | A2 |
B320*86 | 49-52 | 48 | 95 | 48 | 36 | 25 | AE | A2 |
B400*86 | 52-55 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
T400*86K | | 38 | 84 | 44 | 32.5 | 29 | AE | A2 |
B450*84 | 53-56 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
B450*86 | 52-55 | 48 | 97 | 48 | 36 | 25 | AE | A2 |
T450*100K | 48-65 | 50 | 104 | 47 | 44 | 30 | CH | A2 |
DUMPER TRACK
Size width*pitch | link | A | B | C | D | F | pattern | guiding |
320*90 | 52-56 | 32 | 86 | 50 | 35 | 28 | AA | A2 |
U320*90 | 56-76 | 37 | 85 | 47 | 32 | 29 | AA | A2 |
320*100 | 38-54 | 29 | 74 | 30 | 25 | 23 | BN | A2 |
320*100W | 37-65 | 38 | 80 | 34 | 25 | 22 | CD | A2 |
350*100 | 49-60 | 45 | 112 | 45 | 48 | 27 | AA | A2 |
U380*90 | 56-76 | 34 | 85 | 48 | 34 | 30 | AA | A2 |
420*100 | 50-58 | 49 | 99 | 50.5 | 36 | 25 | AA | A2 |
450*110 | 74 | 45 | 120 | 64 | 55 | 21 | AL | A2 |
500*90 | 76-82 | 42 | 94 | 51 | 36 | 30 | AA | A2 |
500*100 | 71 | 45 | 112 | 57 | 54 | 45 | AL | A2 |
600*100 | 76-80 | 44 | 113 | 60 | 49 | 36 | AL | A2 |
600*125 | 56-64 | 43 | 124 | 76 | 61 | 30 | AL | A2 |
650*110 | 88 | 48 | 114 | 76 | 60 | 34 | AL | A2 |
650*120 | 78 | 44 | 130 | 91 | 69 | 38 | AL | A2 |
700*100 | 80-98 | 48 | 125 | 75 | 58 | 50 | AL | A2 |
700*125 | 56-64 | 55 | 144 | 68 | 56 | 32 | AL | A2 |
750*150 | 66 | 62 | 176 | 94 | 68 | 38 | AL | A2 |
800*125 | 80 | 62 | 175 | 95 | 88 | 32 | AL | A2 |
M800*150 | 66-68 | 60 | 148 | 73 | 71 | 35 | AL | A2 |
K800*150 | 67-70 | 80 | 189 | 108 | 78 | 35 | AL | A2 |
900*150 | 68-80 | 80 | 200 | 101 | 66 | 48 | AL | A2 |
1000*150 | 86 | 78 | 210 | 101 | 58 | 37 | AL | A2 |
Excavator Rubber Track
Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) |
130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW |
150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 |
150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K |
170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 |
180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 |
180*72 | 30-58 | 300*53K | 80-84 | Y400*142 |
180*72K | 30-37 | 300*55 | 70-86 | 400*144 |
B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K |
B180*72A | 30-51 | 300*71K | 72-55 | 420*100 |
H180*72 | 30-50 | 300*109N | 25-42 | 450*71 |
190*60 | 30-40 | K300*109 | 37-41 | DW450*71 |
190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 |
200*72 | 34-47 | B300*84 | 78-52 | 450*76 |
200-*72K | 37-47 | T300*86K | 48-52 | 450*81N |
230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W |
230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 |
230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 |
230*72K | 42-56 | B320*86 | 49-52 | B450*84 |
230*96 | 30-48 | 320*90 | 52-56 | B450*86 |
230*101 | 30-36 | 320*100 | 38-54 | 450*90 |
250*47K | 84 | 320*100W | 37-65 | KU450*90 |
250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K |
250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 |
250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W |
B250*72 | 34-60 | B350*55K | 77-98 | 500*90 |
B250*72B | 42-58 | 350*56 | 80-86 | 500-92 |
E250*72 | 37-58 | 350*75.5K | 74 | 500*92W |
250*96 | 35-38 | 350*90 | 42-56 | 500*100 |
250*109 | 35-38 | 350*100 | 46-60 | K500*146 |
260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 |
Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 |
260*109 | 35-39 | Y370*107K | 39-41 | 700*100 |
280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 |
Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 |
300*52.5N | 72-98 | Y400*72.5K | 72-74 | |
300*52.5W | 72-92 | KB400*72.5K | 68-76 | |
Agriculture Rubber Track
Width/Pitch | Width/Pitch |
110/84 | 450/90DS |
180/84W | 450/90DT |
200/84W | 450/90JW |
250/84N8S | 450/90JWH |
280/79 | 450/90KP |
280/90 | 450/90KU |
280/90KP | 450/90L |
300/52.5P(LKH) | 450/90N |
300/52.5P(LKS) | 450/90NA |
300/84N | 450/90NAS |
300/84NS | 450/90NER |
300/84YC | 450/90NK |
300/90D | 450/90NKS |
320/45(BC) | 450/90NS |
320/45(TK) | 450/90NW |
330/101.6 | 460/90 |
330/72N7 | 460/90C |
330/72N7S | 460/90HK |
330/79N | 460/90NK |
330/79NER | 460/90NKS |
330/79NK | 470/90NER |
330/79NKS | 500/100 |
330/79NS | 500/90CS |
330/84N | 500/90D |
330/84NC | 500/90DS |
330/84NS | 500/90JK |
330/84YC | 500/90JW |
330/90 | 500/90JWH |
330/90N90S | 500/90N |
330/90N9I | 500/90NA |
330/90N9IS | 500/90NAS |
330/90NS | 500/90NER |
350/84N | 500/90NK |
350/84NS | 500/90NK1 |
350/90D | 500/90NKE |
350/90L | 500/90NKH |
350/90S | 500/90NKS |
360/79N | 500/90NS |
360/79NK | 550/90A |
360/79NKS | 550/90B |
360/79NS | 550/90KA2 |
360/90N | 550/90N |
360/90NER | 550/90NA |
360/90NKS | 550/90NAS |
360/90NS | 550/90NER |
400/72 | 550/90NIH |
400/79 | 550/90NK |
400/79NK | 550/90NK2 |
400/84 | 550/90NKS |
400/84R | 550/90NS |
400/84YC | 550/90NSY |
400/84YCH | 600/100 |
400/84YCL | 625/90 |
400/90A | C350/90 |
400/90B | C350/90H |
400/90C | C400/90 |
400/90CS | C400/90H |
400/90D | C400/90Y |
400/90D1 | C450/90 |
400/90D1S | C450/90H |
400/90DA | C500/90U |
400/90DF | D300/90 |
400/90DH | D350/90 |
400/90JG | D400/90 |
400/90JK | D400/90A |
400/90JW | D450/90 |
400/90L | D500/90 |
400/90N | D500/90U |
400/90NC | DS400/90 |
400/90NJ | DS450/90 |
400/90NJN | DT450/90 |
400/90NJNS | KB400/90 |
400/90NJS | T320/86K(C) |
400/90NK | V300/52.5(N) |
400/90NKS | V300/52.5(W) |
400/90NKW | 450/90JG |
400/90NS | 400/90P |
400/90NW | D450/90G |
400/90NWS | 500/92W |
400/90P | 450/90DF |
400/90THC | C450/90 |
410/90NER | 400/90F |
420/84 | 350/90X |
420/84DS | 400/90DC |
420/84N | 450/90DC |
420/84NS | 500/90DC |
420/90NK | 550/90DC |
420/90NKS | 400/90X |
425/90 | 400/86Q |
425/90D | 400/86T |
450/90B | 350/90XB |
450/90C | 450/90GCR |
450/90D | C450/90Z |
D450/90Z | 330/84Q |
500/90YB | |
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
9.Parameters for lug
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Quality Control:
1.Ex works Inspection
2.Products Audits/Examination(Strict inspection according to customer's request)
3.Production Procedure Audit/Examination(Entire Procedure Control)
4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)
Rubber track warranty
All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.
Company introduction:
Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.
Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
