• Model NO.：LG933L
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Max. Dumping Height：2460mm
• Dumping Reach：850mm
• Max.Breakout Force：55
• Total Cycle Time：8
• Engine Model：Lr4b3
• Rated Power：62.5kw,2200rpm
• Overall Dimensions：6120*2078*2850
• Forward Speed：F1:0-8, F2:0-11.5, F3:0-20, F4:0-28
• Reversing Speed：R1:0-10, R2:0-24
• Wheelbase：270
• Fuel Tank：105L
• Rated Bucket Capacity：1m3
• Rated Loading Capacity：2t
• Other Type：Coal Version, Ore Version, Mining Version
• Payment：T,T L,C
• Transport Package：Standard Packing
• Specification：3000kg
• Trademark：China Brand
• Origin：China
• HS Code：8429510000
• Production Capacity：100unit,Month

 1.6Ton  1.8Ton   1.8Ton 3.0Ton  3.0Ton  3.0Ton  3.0Ton  4.0Ton  5.0TonLG916LG918L918LG933LLG936LL936 LG938LLG946L LG953  5.0Ton  5.0Ton   5.0Ton5.0Ton5.0Ton5.0Ton6.0Ton7.0Ton L953FLG956L L956FL956FHLG958LL958FL968FLG978

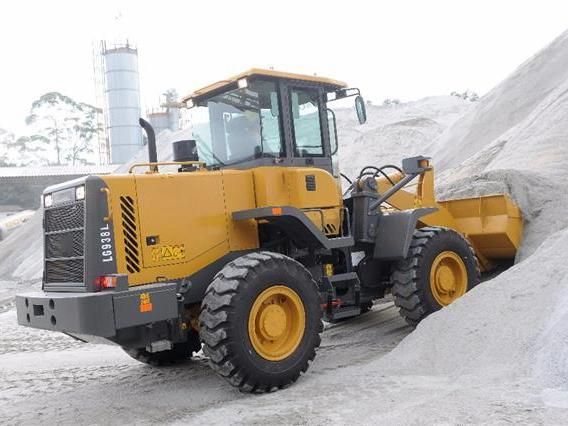

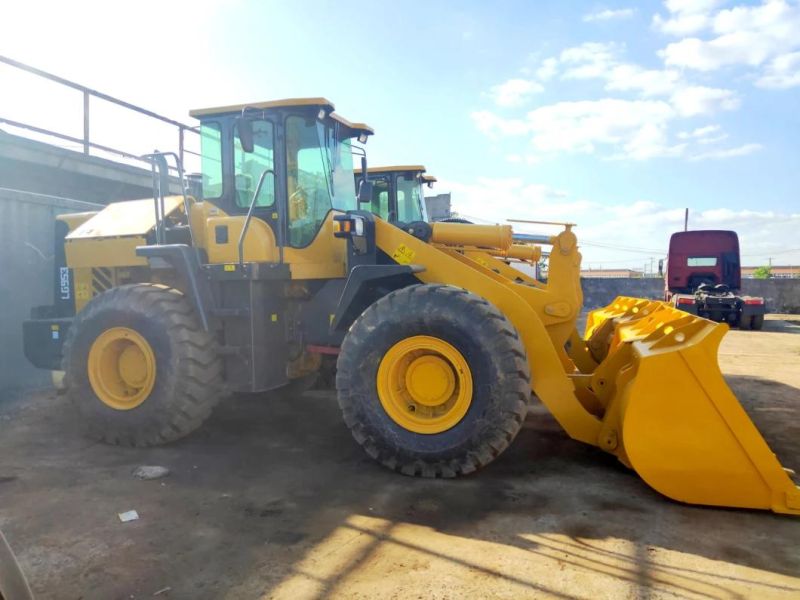

LG933 loader is a high-end product mainly for loading and unloading loose material. The entire machine is compact, flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms, timber yard and municipal construction.

 Hydraulic and TransmissionTransmission modeAxis-Fixed 4 Forward and 2 reverseType:Hydraulic pilot controlService brake systemAir over hydraulic disc typeFuel:140LHydraulic oil:128LEngine Oil:48L
Product Features:Power System

The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.

Driving/Riding Environment

The new generation cab with all-new design optimization guarantees broader vision and more fashionable appearance.

The framework structure in four sides guarantees high safety, comfort, and reliability.

The extensively adjustable seat provides the driver with the most comfortable operation;
It provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

Operating performance

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The optional pilot control system features flexible and convenient operations.

High operating efficiency

The new bucket in optimized bucket shape is applied to improve the bucket fullness rate and shoveling and loading efficiency.

High tipping load, good heavy-load stability, and high efficiency;

Weichai low-speed engine special for Shantui and Shantui's self-made low-speed high-capacity torque converter achieve optimal match performance, high traction force, high insertion force into material pile, and good startup performance (Loaded startup capability even in 3rd gear). The double pump confluence hydraulic working system and the load-sensing steering system are applied to ensure flexible operations and fast and stable steering speed. The 125 large-bore lifting cylinder is applied to increase the lifting force by 12% and the total cycle time is as low as 9s to achieve higher shoveling and loading efficiency.

Reliable performance
The structural parts, including front and rear frames and working device, are optimized and enhanced, the CAE analysis is taken for critical parts, and the main welded parts are welded by robots to ensure reliable welding quality;

The hydraulic system parts adopt domestic renowned brand products.
The radiator system adopts composite integrated radiator to enhance the heat dissipation area and achieve better heat dissipation performance. The fan diameter is enlarged to increase the airflow rate and improve the system heat dissipation performance.
The patented double locating structure (Upper and lower articulated joints) features flexible steering and stable and reliable performance, with the life more than 2 times of that of single locating structure.

Convenient maintenances

The transmission oil filler pipe is directed and the maintenance locations (Such as booster pump) are optimized to ease the routine repairs and maintenances.
