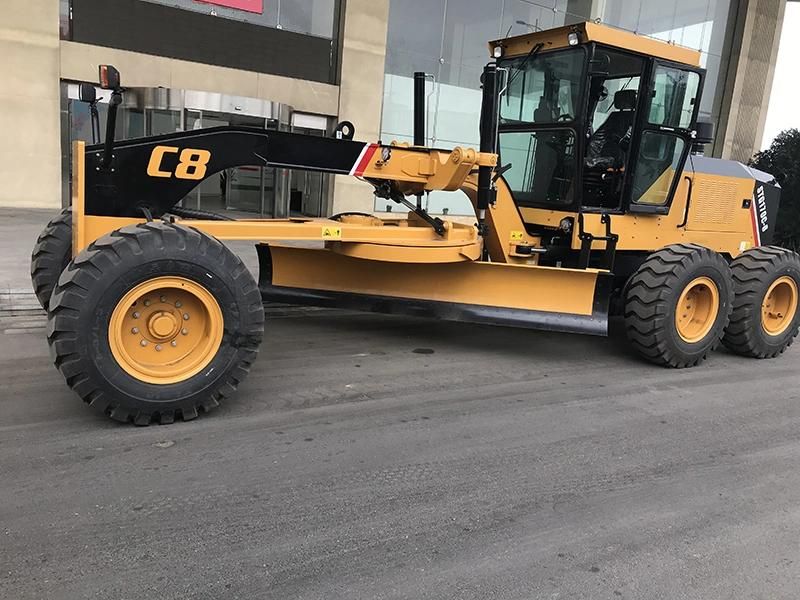

China Acntruck Stg190c Grader Motor with Front Blade and Rear Ripper

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • After-sales Service：Field Installation, Commissioning and Training
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：STG190C
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader
  • Rated Power：142 Kw
  • Rated Rotation Speed：2000 Rpm
  • Peak Torque：800 Nm
  • Front and Rear Axle Base：6310 mm
  • Middle and Rear Wheel Base：1538 mm
  • Length of Blade：3660 mm
  • Height of Blade：620 mm
  • Max. Lift Above Ground：480 mm
  • Max. Depth of Cut：630 mm
  • Max. Capacity of Fuel Tank：350 L
  • Transport Package：Nude Package
  • Specification：9265*2740*3348 mm
  • Trademark：Acntruck
  • Origin：China
  • Production Capacity：50 Unit Per Month

Description

ItemUnitSTG190CHeight to Top of Cabmm3348Height to Exhaust Pipemm2717Height to Top of Blade Lift Cylindermm2795Length - Front Axle to Moldboardmm2568Wheel Base - between Middle and Rear Wheelmm1538Width - Outside Front Tiresmm2580Ground Clearance at Rear Axlemm410

China Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperPacking Pictures

China Acntruck Stg190c Grader Motor with Front Blade and Rear RipperCompany Informaiton

China Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear RipperChina Acntruck Stg190c Grader Motor with Front Blade and Rear Ripper
