• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Operating Weight：3600 Kg
• Rated Power：65 Kw
• Max. Dump Height：3200 mm
• Max. Dump Distance：1000 mm
• Min.Turning Radius：4500 mm
• Transminssion Type：Hydraulic
• Tire：16,70-20
• Transport Package：Wooden Box & Container
• Specification：6100x1970x2860
• Trademark：TOROS
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：1000sets,Month

Basic Info.

Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Operating Weight 3600 Kg Rated Power 65 Kw Max. Dump Height 3200 mm Max. Dump Distance 1000 mm Min.Turning Radius 4500 mm Transminssion Type Hydraulic Tire 16/70-20 Transport Package Wooden Box & Container Specification 6100x1970x2860 Trademark TOROS Origin Shandong, China HS Code 8429510000 Production Capacity 1000sets/Month

Product Description

New Style Cheapest Articulated Mini Wheel Loader For Sale Telescopic China Small Wheel Loader With Euro Quick Coupler Front
1.who are we?
ShanDong TOROS Machinery  Co., Ltd. is a modern international company engaged in construction machinery.
TOROS has developed rapidly by advanced technology and modern management.CE and ISO certificates areavailable.The strict quality control system and high quality production lines have developed the high quality products and fast delivery service. We have built one professional after-sales team that can server the customer well at the first time.
2.What are the advantages of our mini excavator?

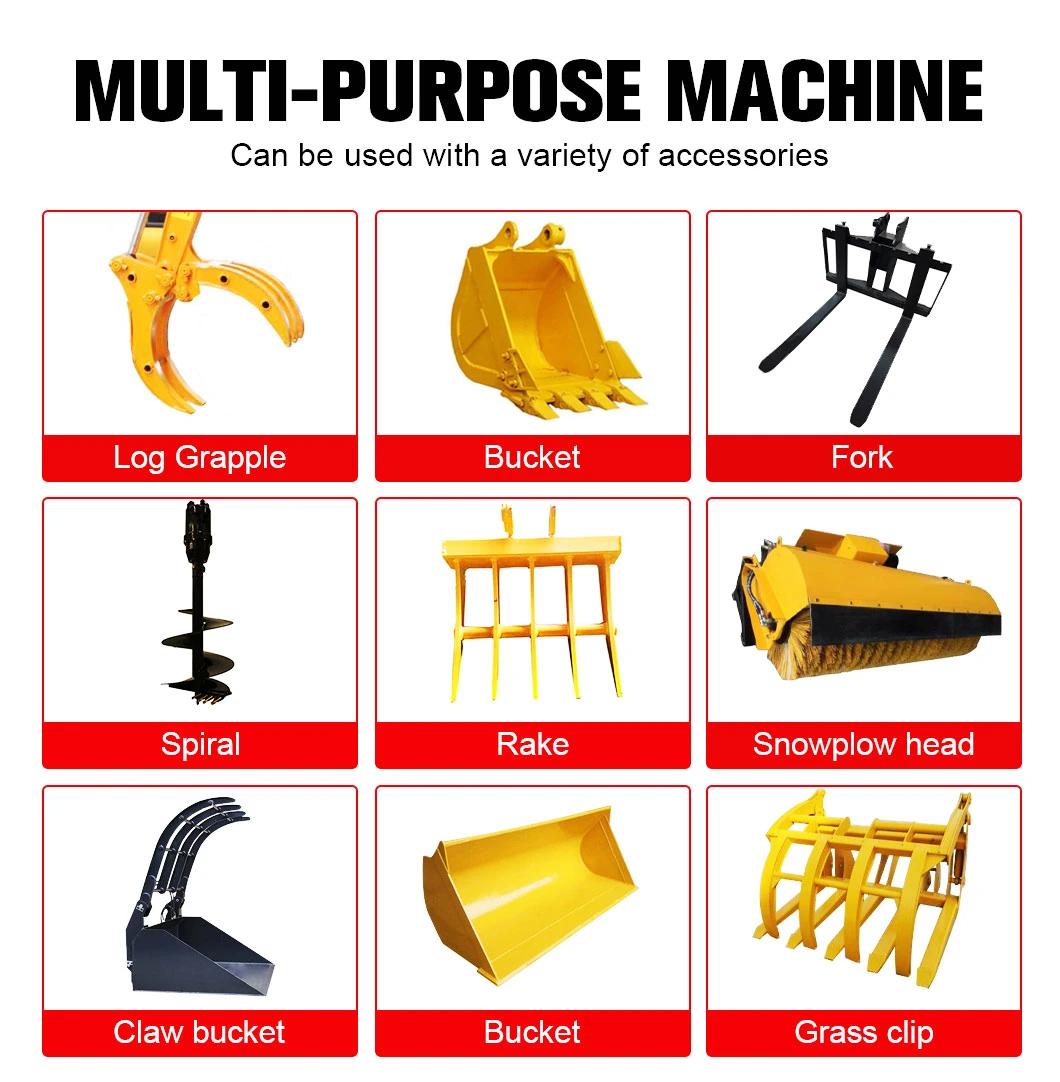

Advantages of mini excavator: support multi-function operation, fast attachment of accessories, excavation, crushing, trench cleaning, drilling and bulldozing;
Warranty period: within one year after delivery / 2000 working hours, if there is any quality problem, we will provide you with accessories for free.
The latest configuration notice: mini excavators can increase the cab and air conditioning! ! !
Provide customized services, your exclusive shopping agent, personalized purchase, you are born different from others!
3. What do you just need to do?
Click on the right side of the item to initiate an inquiry to contact us, tell us your needs, and provide your WhatsApp/email. The exclusive consultant will contact you as soon as possible to provide you with preferential prices for customized products you like, without wasting your time!
Wheel Loader
1. Small and flexible, multi-purpose, easy to operate, safe, comfortable and easy to maintain
2 .Articulated frame, high-intensity boom design, structural optimization, and stable operation.
3. Split detachable cab, panoramic view, double door design, comfort and safety.
4. The engine is powerful and meets the national three emissions.
5. The joystick can be equipped with mechanical double handles, mechanical single handles and pilot single handles, which are suitable for different operating habits.

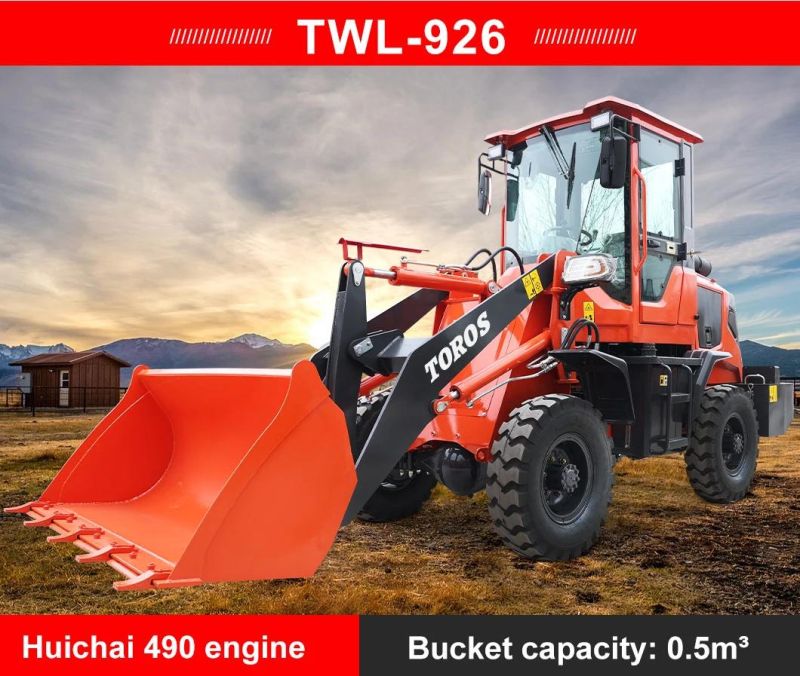

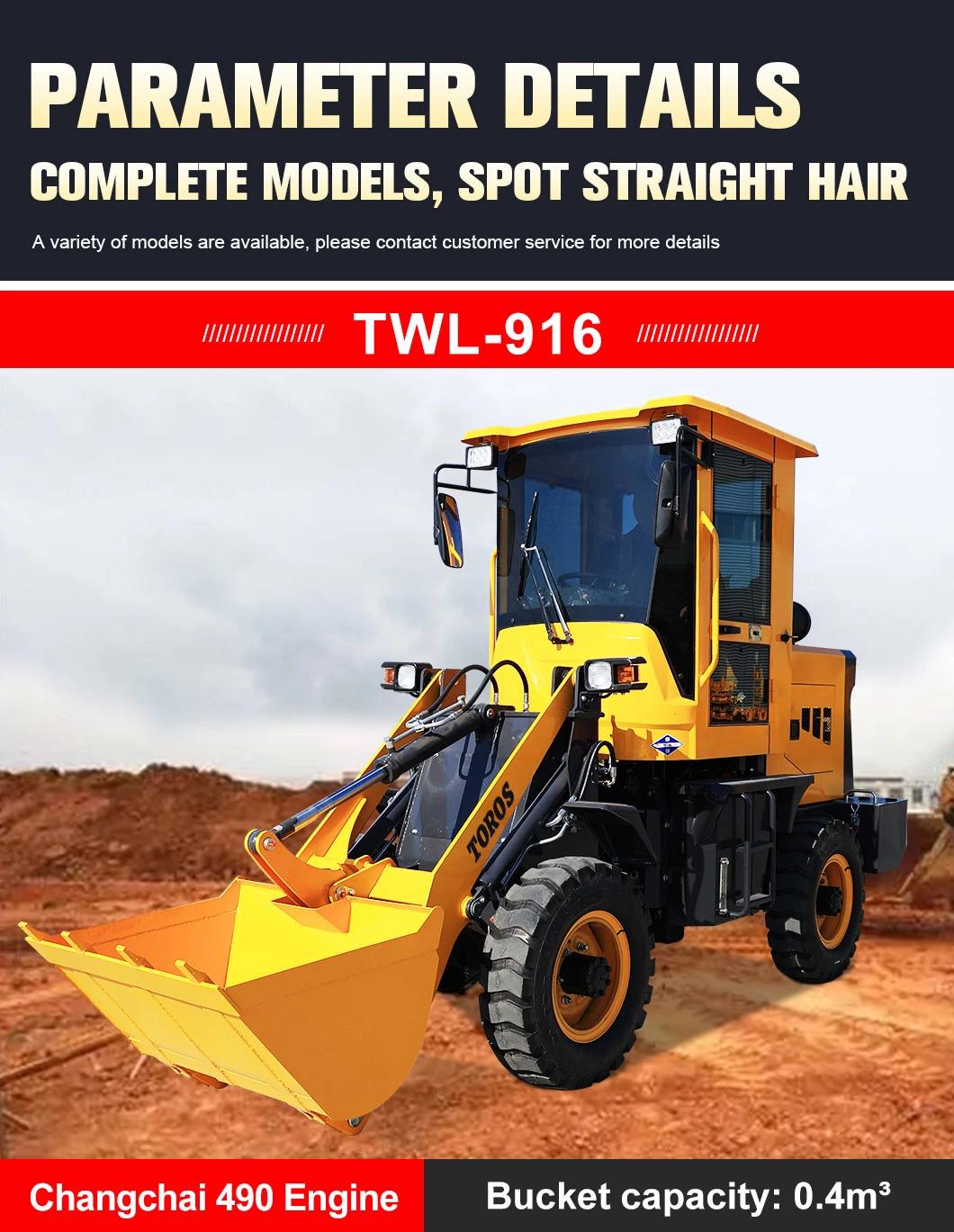

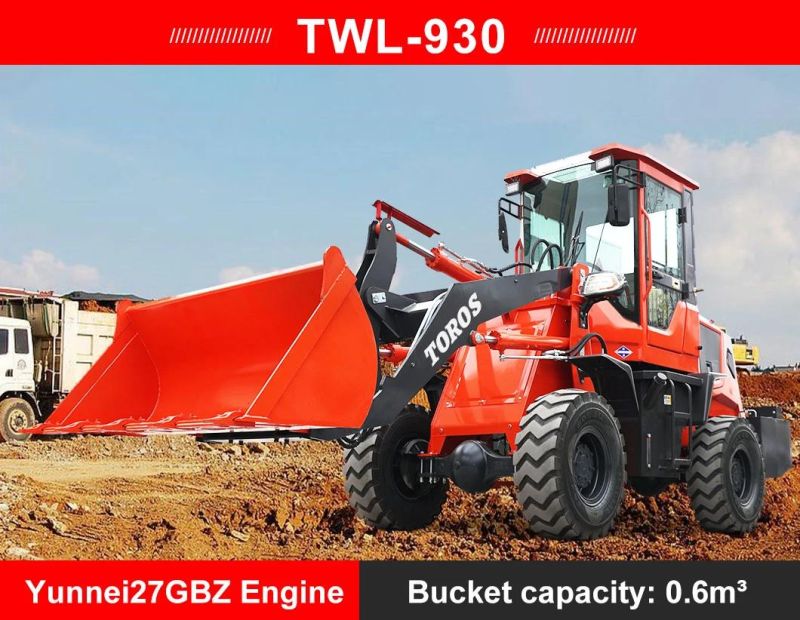

	916	926	930	930
Machine operating weight	1960kg	2900kg	3700kg	3720kg
Bucket capacity	0.4 m3	0.5m³	0.9m³	0.6M3
load weight	1000kg	1200kg	1800kg	1500KG
Largest traction		30KN	35km	33KN
maximum digging force		41KN	45km	45KN
maximum tilt angle	30°	30°	30°	30°
Maximum unloading height		3000MM	3200mm	3000mm
Maximum dumping distance		700mm	850mm	700mm
Dimensions (mm)		4700*1760*2650	5300*1850*2650mm	4750x1850x2600
battery capacity		60A*2	60A*2	60A X2
air conditioner	can choose	can choose	can choose	The standard configuration
automatic shift	The standard configuration	The standard configuration	The standard configuration	The standard configuration
engine model	changcai490	huicai490	yunnei YN27GBZ	yunnei YN27GBZ
fuel type	diesel	diesel	diesel	diesel
Bore		90MM	90mm	90mm
maximum torque		196N.M	206N.M	206N.m
rated power	39kw	40kw	42kw	42kw
Rotating speed		2400r/min	2400r/min	2400r/min
fuel consumption		4.8L/H	5L/h	5L/h

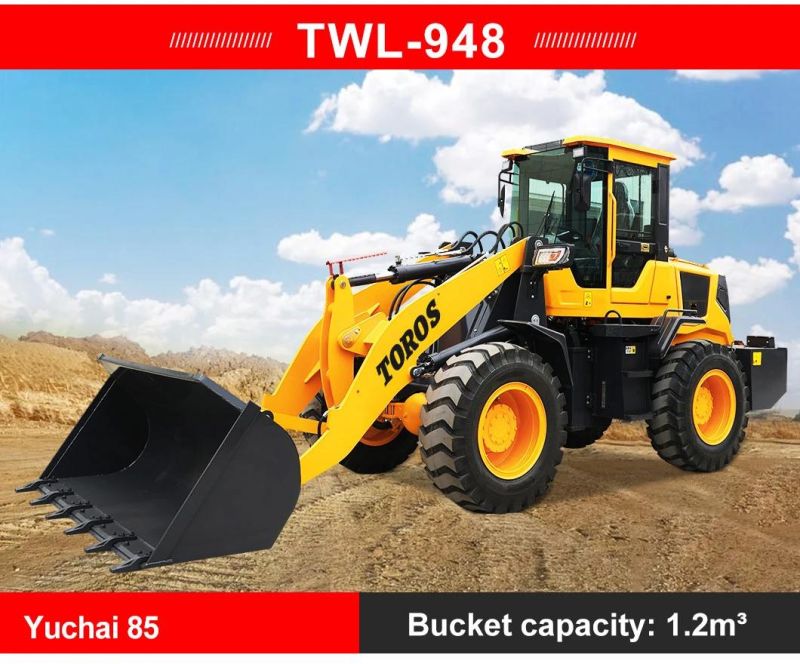

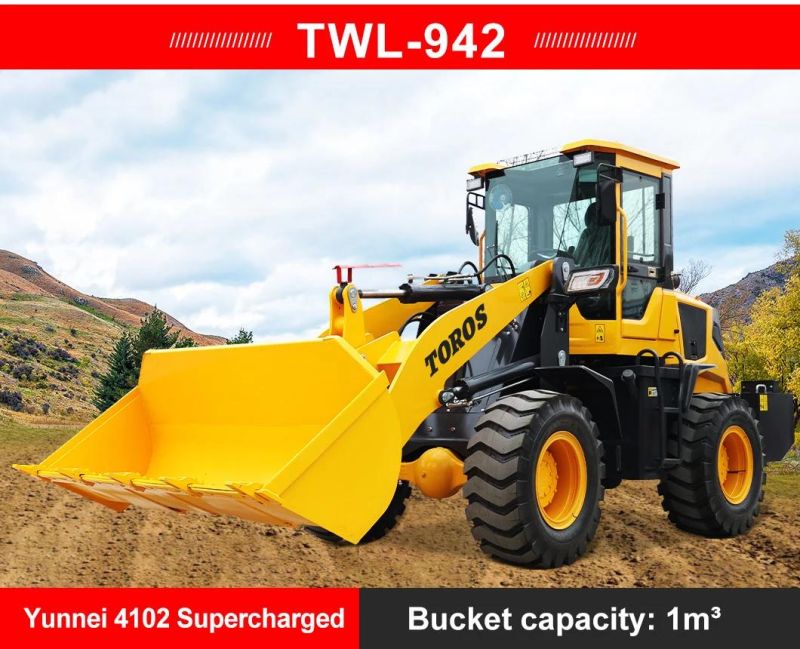

	942	948	958
Machine operating weight	5050kg	5500kg	7200kg
Bucket capacity	1m³	1.2m³	1.5m³
load weight	2000kg	2000kg	2500kg
Largest traction	45kn	45kn	93KN
maximum digging force	48kn	48kn	120KN
maximum tilt angle	30°	30°	30°
Maximum unloading height	3500mm	3500mm	3500mm
Maximum dumping distance	900mm	900mm	900mm
Dimensions (mm)	6000*2060*2900mm	6060*2100*2900mm	6890x2430x3070
battery capacity	60A*2	60A*2	100A X2
air conditioner	can choose	can choose	The standard configuration
automatic shift	The standard configuration	The standard configuration	The standard configuration
engine model	yunnei 4102	yucai85	DEUTZ WP6G125E22
fuel type	diesel	diesel	diesel
Bore	102mm	102mm	105mm
maximum torque	290N.M	290N.M	460N.m
rated power	76kw	85kw	92kw
Rotating speed	2400r/min	2400r/min	2200r/min
fuel consumption	6L/h	6L/h	9L/h

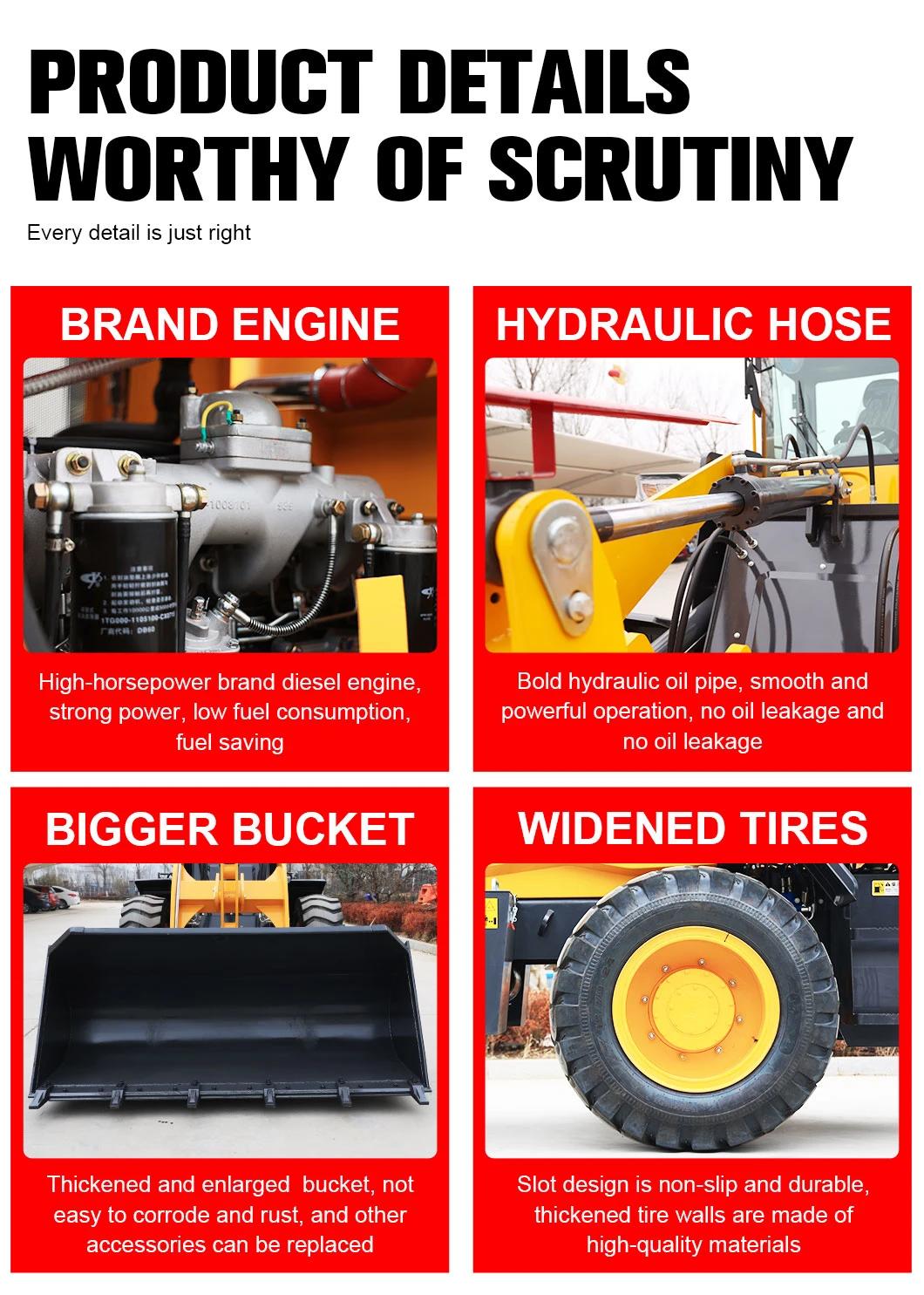

Product features

1. It adopts an articulated frame, with a small turning radius, good maneuverability, and easy operation in a narrow field.
2. Four-wheel drive system, stable performance, reliable and safe.
3. Stability,  good transmission, fast power response fast.
4. With luxurious and comfortable cab, ergonomic design, digital instrument panel and adjustable seat. Hydraulic pilot operating handle, sensitive operation.
Optional heating and cooling air-conditioning, electric control joystick, dual high and low speed and other configurations.

Wheel loader is widely used in highway, railway, hydropower, construction, port, mine and other construction works of earth and stone construction machinery, which is mainly used for loading and unloading soil, gravel, lime, coal and other bulk materials,it can also make light shovel digging operation of ore, hard soil, etc. with the advantages of fast operating speed, high efficiency, good mobility and easy operation.
