Crawer Multifunctional Solar Pile Driver Hydraulic Hammer Piling Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Type：Hydraulic Hammer
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：HW300
- Motor Power：85kw
- Certification：CE, RoHS
- Condition：New
- Model：Hwl300
- Drilling Diameter (mm)：50-400
- One-Time Advancing Stroke (mm)：300
- Adapt to Rock Hardness：F=6-20
- Pitch Angle of Carriage (°)：90
- Machine Weight (Kg)：5800
- Climbing Angle (°)：35
- Walking Speed (Kw/H)：52.5
- Air Consumption (M3/Min)：10-26
- Drilling Depth (M)：0-30
- Swing Angle of Carriage (°)：45
- Rotation Speed：0-70
- Host Frequency (Kw)：85
- Dimensions (mm)：4460*1850*2460
- Working Wind Pressure(MPa)：1.6-2.46(High Pressure)
- Specification：4460*1850*2460mm
- Trademark：HW
- Origin：Shandong
- Production Capacity：100PCS ,Month
Description
Product name

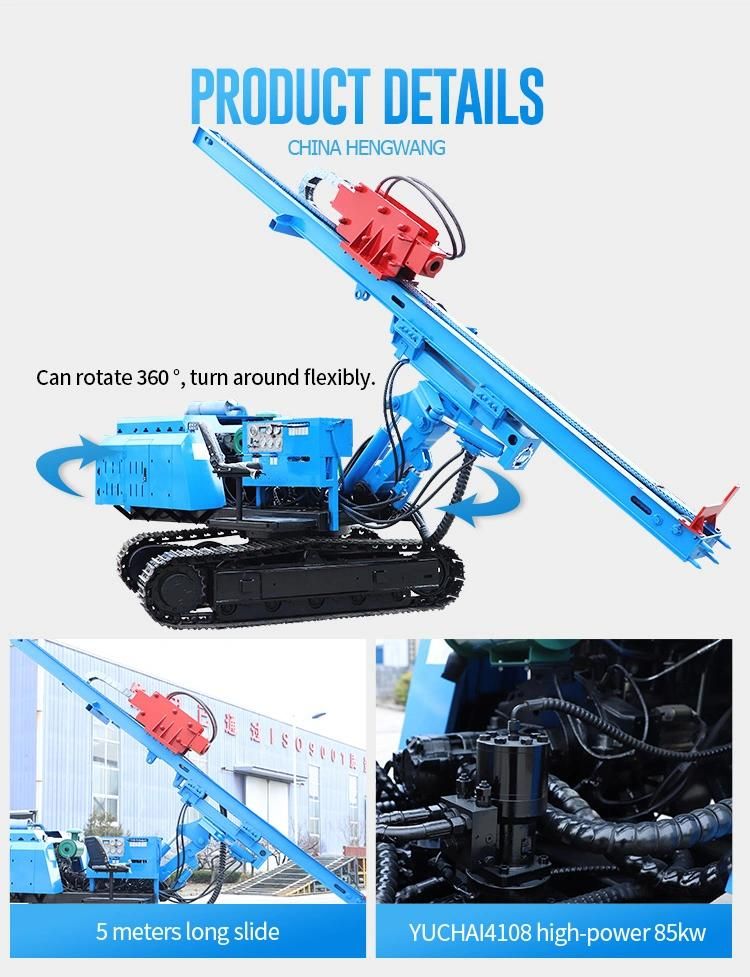

Crawler multifunctional photovoltaic pile driver
Drilling diameter (mm)
50-400
One-time advancing stroke (mm)
300
Adapt to rock hardness
F=6-20
Pitch angle of carriage (°)
90
Machine weight (kg)
5800
Climbing angle (°)
35
Walking speed (kw/h)
52.5
Air consumption (m3/min)
10-26
Drilling depth (m)
0-30
Drill rod diameter (mm)
42/50/63/76/89/104
Drilling diameter (mm)
60-800
Swing angle of carriage (°)
45
Rotation speed
0-70
Host frequency (kw)
85
Dimensions (mm)
4460*1850*2460
Working wind pressure(mpa)
0.7-1.6(medium pressure) 1.6-2.46(high pressure)
