• Model NO.：HLC212
• Travel Speed：30cm,s
• Centrifugal Force：27KN
• Certification：EPA, CE, RoHS, ISO 9001:2008
• Operation Weight (Kg)：10t,12t
• Static Linear Load,Rear(N/Cm)：286
• Static Linear Load,Front(N/Cm)：230,310
• Max. Travel Speed(Km/H)：12
• From of Frame：Fork-Type
• Crabwise Movement Distance：±170mm
• Wheelbase(mm)：3717
• Turning Speed：5605
• Overall Dimensions(mm)：5062*2250*3000
• Diesel Power：110kw
• Transport Package：Container
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Hebei
• HS Code：84294
• Production Capacity：50000 Sets,Year

Basic Info.

Model NO. HLC212 Travel Speed 30cm/s Centrifugal Force 27KN Certification EPA, CE, RoHS, ISO 9001:2008 Operation Weight (Kg) 10t/12t Static Linear Load,Rear(N/Cm) 286 Static Linear Load,Front(N/Cm) 230/310 Max. Travel Speed(Km/H) 12 From of Frame Fork-Type Crabwise Movement Distance ±170mm Wheelbase(mm) 3717 Turning Speed 5605 Overall Dimensions(mm) 5062*2250*3000 Diesel Power 110kw Transport Package Container Specification CE, Rohs, ISO9001, ISO4001 Trademark CHHGC Origin Hebei HS Code 84294 Production Capacity 50000 Sets/Year

Product Description

China 10T 12T Heavy Double Drum Roller Tandem Vibratory Roller


Main Features
 1.) Full hydraulic wheel drive, two-wheel vibration;2.) Dual-band dual vibration means;
3.) Full hydraulic central articulated steering offers unique crab bodies;4.) Spacious and comfortable air-conditioned cab, the configuration of the seat so that the rotating work more flexible and convenient to manipulate;5.) Cab with integral rollover function, easy to equipment maintenance;6.) Prongs type frame form, the pressure side of the good;7.) SAUER hydraulic components selected US companies or German REXROTH company's products.

Usage Scope of Static Tandem Rollers

HLC214 / HLC212 / HLC210 / HLC208 Heavy Double Drum Vibratory Rollers using advanced foreign technology and imported key components and the production of full hydraulic vibratory roller. The machine is heavy double drum tandem vibratory roller is suitable for compaction of road asphalt concrete, sand and gravel mixture and dry hard cement concrete roads / municipal road / parking lot and the industrial field rolling smooth general construction equipment.


Technical Data


Item	Unit	HLC212	HLC210/ HLC208
Operating mass	kg	12000	10000/8000
Static linear load	N/cm	286	238/231
From of frame		Fork-type	Fork-type
Crabwise movement distance	mm	±170	±170
Vibration amplitude	mm
High amplitude		0.8	0.8/0.67
Low amplitude		0.4	0.4/.34
Vibration frequency	Hz
High amplitude		40	40/45
Low amplitude		46	46/50
Centrifugal force	KN
High amplitude		160x2	115x2/90x2
Low amplitude		90x2	85x2/69x2
Travel speed	Km/h	0-12	0-11.1
Turning speed	mm	5605	5605
Grade ability	%	40	40
Steering angle	Degree	±35	±35
Drum diameter	mm	1350	1350/1150
Drum width	mm	2100	2100/1730
Wheelbase	mm	3717	3717/3217
Overall length		5062	5062/4558
Overall width		2250	2250/1840
Overall height		3000	3000/2674
Diesel model		6BT5.9	4BT3.9
Diesel power	KW	110/93	110/80
Diesel speed	r/min	2300	2300/2200

Our Products

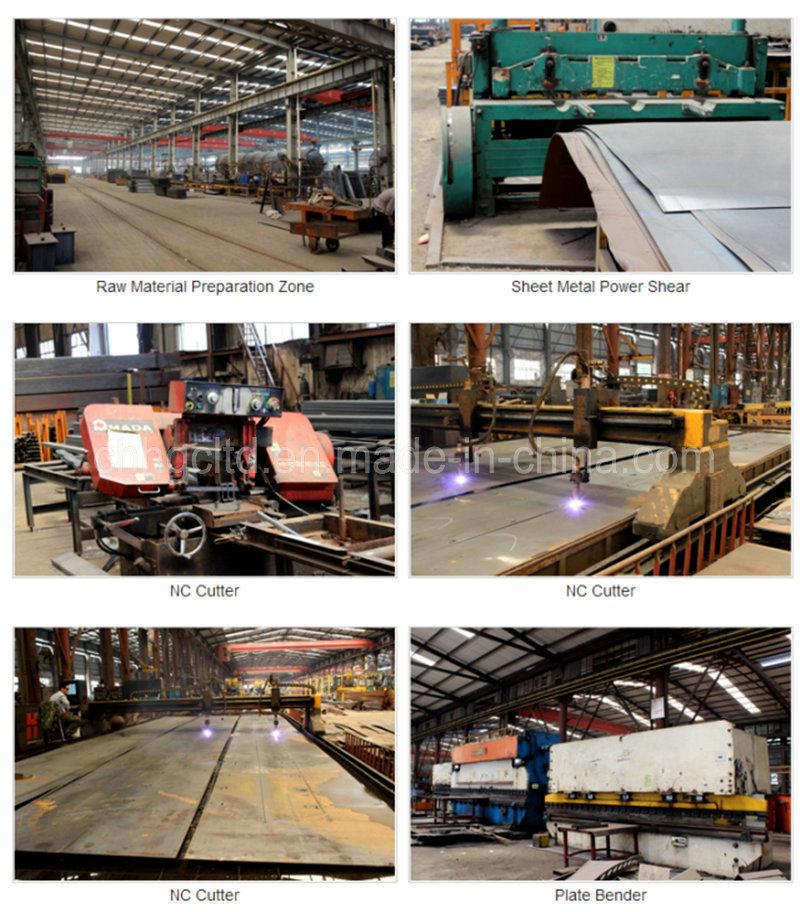

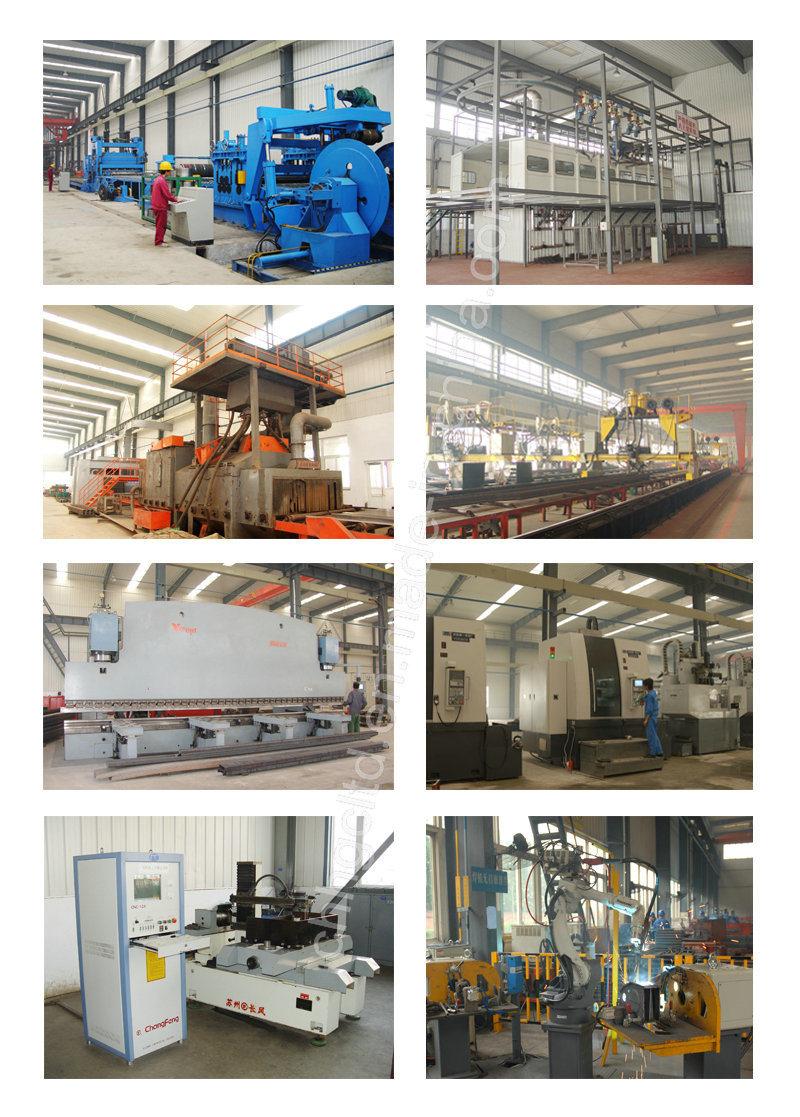

Workshop
