Used Original Wheel Loader in Excellent Condition.

Henan Tarzan Industrial Co., Ltd.
  • Condition：Used
  • Application：Railway, Highway
  • Transmission：Power
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader
  • Product Name：Used Motor Grader Construction Engineering Machine

Base Info

  • Model NO.：CAT 966H
  • Engine Model：Cat C11 Acert
  • Engine Power：195kw,1400rpm
  • Vehicle Working Weight：23698kg
  • Number of Cylinders：6
  • Shovel Blade Length：3145mm
  • Aspiration：Turbocharged
  • Bucket Capacities：5.5 Cu Yds (4 M)
  • Steering System：Piston
  • Engine Oil Fluid Capacity：35 L
  • Fuel Capacity：380 L
  • Transmission Type：Powershift
  • Tire Size：26.5-25
  • Cooling System：10.3 Gal
  • Transport Package：Nude Packing
  • Specification：6900*3400*3600mm
  • Trademark：NONE
  • Origin：China
  • HS Code：8429201000
  • Production Capacity：50 Units Per Month

Description

Basic Info.

Model NO. CAT 966H Engine Model Cat C11 Acert Engine Power 195kw/1400rpm Vehicle Working Weight 23698kg Number of Cylinders 6 Shovel Blade Length 3145mm Aspiration Turbocharged Bucket Capacities 5.5 Cu Yds (4 M) Steering System Piston Engine Oil Fluid Capacity 35 L Fuel Capacity 380 L Transmission Type Powershift Tire Size 26.5-25 Cooling System 10.3 Gal Transport Package Nude Packing Specification 6900*3400*3600mm Trademark NONE Origin China HS Code 8429201000 Production Capacity 50 Units Per Month

Product Description

Used Original Wheel Loader Construction Engineering Machinery

Suit for civil construction, road building, water conservancy project, house building, mining,  engineering work, etc.

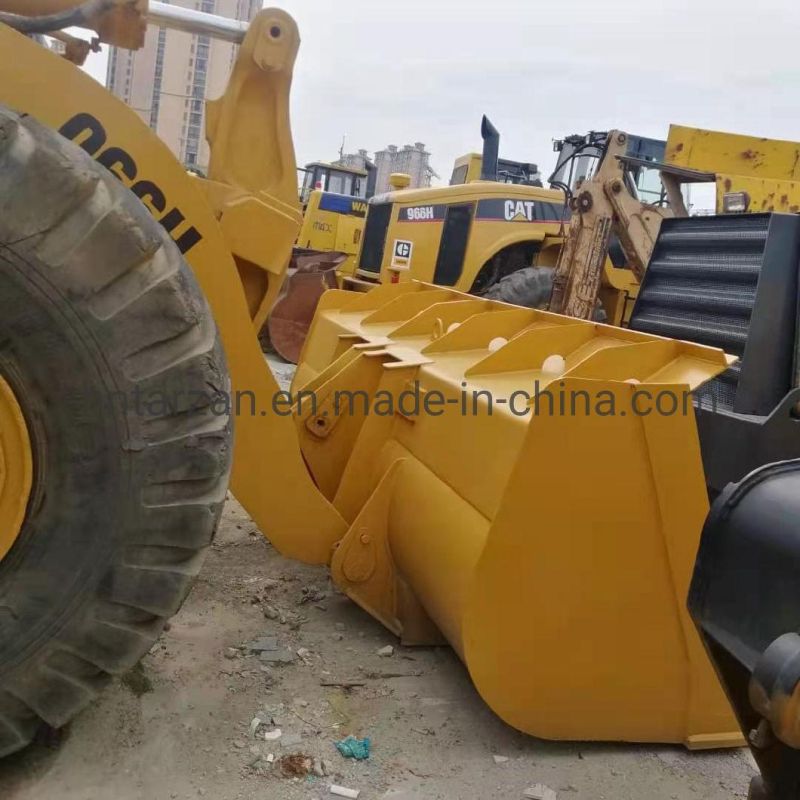

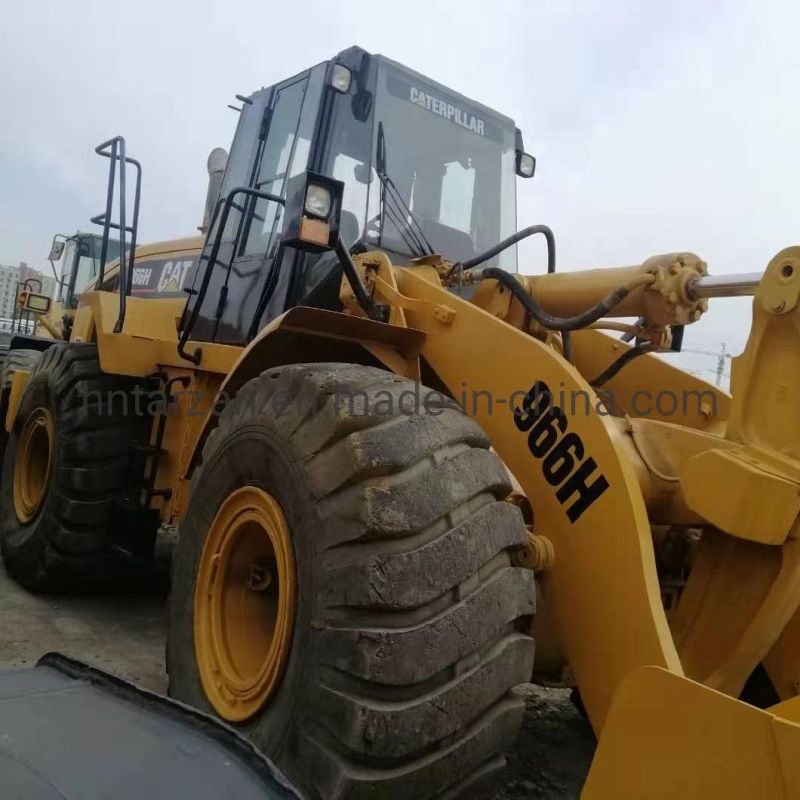

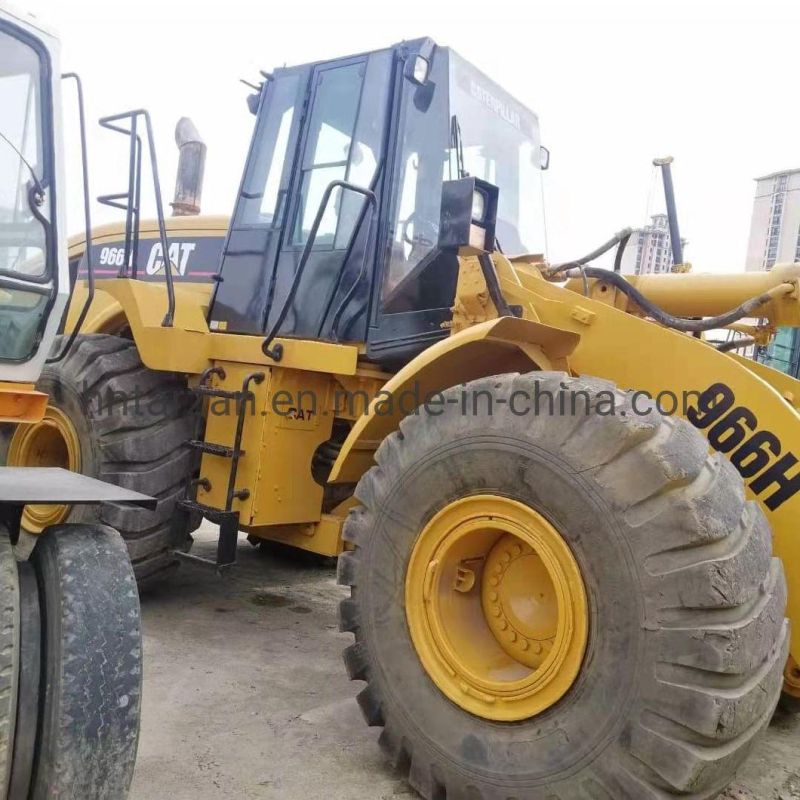

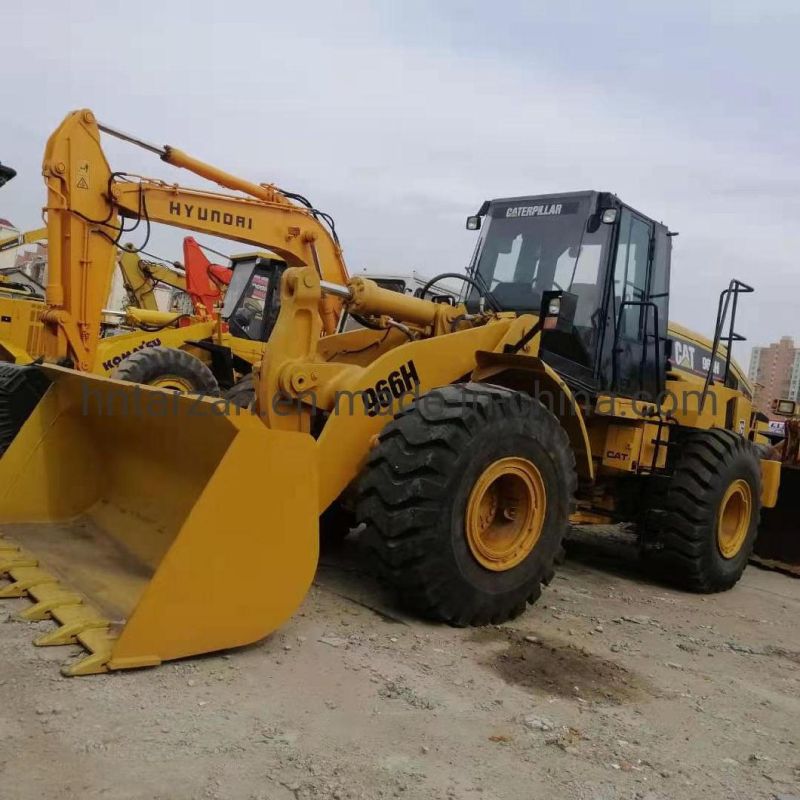

Real machinery photo show:

Model: 966H
Condition: used, original, in good condition still running well.
Used Original Wheel Loader in Excellent Condition.Used Original Wheel Loader in Excellent Condition.Used Original Wheel Loader in Excellent Condition.Used Original Wheel Loader in Excellent Condition.

Dimensions

B-Pin Height - Standard13.9 ft (4 m)
Centerline of Rear Axle to Hitch68 in (173 cm)
Centerline Rear Axle to Edge of Counterweight8.1 ft (2 m)
Ground Clearance1.7 ft (1 m)
Height - Top of Cab11.9 ft (4 m)
Height - Top of Exhaust139.8 in (355 cm)
Height - Top of Hood105.5 in (268 cm)
Height - Top of ROPS/FOPS11.9 ft (4 m)
Hinge Pin - Max Height13.9 ft (4 m)
Length with Bucket on Ground29.1 ft (9 m)
Reach at Max Lift and Dump4.3 ft (1 m)
Wheel Base11.4 ft (3 m)
Wheelbase11.4 ft (3 m)
Width Over Tires9.7 ft (3 m)

Engine

AspirationTurbocharged
Bore5.2 in (13 cm)
Displacement677 cu in (0 m)
Engine ModelCat C11 ACERT
Flywheel Power262 hp (195 kw)
Gross Power286 hp (213 kw)
Gross Power - SAE J1995286 hp (213 kw)
MakeCat
ModelC11
Net Power262 hp (195 kw)
Net Power - 80/1269/EEC262 hp (195 kw)
Net Power - ISO 9249262 hp (195 kw)
Net Power - SAE J1349259 hp (193 kw)
Number of Cylinders6
Peak Torque - 1,400 rpm - Net896 lbs/ft
Power Measured @1800 rpm
Stroke5.6 in (14 cm)
Torque Measured @1400 rpm
Torque Rise38%

Hydraulic System

Bucket/Work Tool System - Pump Output80.6 gal/min (305 l/min)
Dump Time1.6 sec
Hydraulic Cycle Time - Dump1.6 sec
Hydraulic Cycle Time - Lower, Empty, Float Down2.4 sec
Hydraulic Cycle Time - Raise5.9 sec
Hydraulic Cycle Time - Total9.9 sec
Lower Time2.4 sec
Pump Flow Capacity80.6 gal/min (305 l/min)
Pump TypePiston
Raise Time5.9 sec
Relief Valve Setting1000 psi
Steering System - Pump TypePiston

Operating Specifications

Alternator Supplied Amperage80 A
Breakout Force42300 lbs (19,187 kg)
Cooling System Fluid Capacity10.3 gal (39 l)
Dump Clearance9858.9 ft (3,005 m)
Engine Oil Fluid Capacity9.3 gal (35 l)
Front Axle/Diff Fluid Capacity16.9 gal (64 l)
Fuel Capacity100.4 gal (380 l)
Hydraulic System Fluid Capacity29 gal (110 l)
Operating Voltage24 V V
Operating Weight52254 lbs (23,702 kg)
Rated Bucket Capacity5.5 cu yds (4 m)
Rear Axle Oscillation26 °
Rear Axle/Diff Fluid Capacity16.9 gal (64 l)
Static Tipping Load - Full Turn34120 lbs (15,477 kg)
Static Tipping Weight38354 lbs (17,397 kg)
Tire Size26.5-25
Transmission Fluid Capacity11.7 gal (44 l)
Turning Radius24.2 ft (7 m)

Service Refill Capacities

Cooling System10.3 gal (39 l)
Crankcase9.3 gal (35 l)
Differential - Final Drives - Front16.9 gal (64 l)
Differential - Final Drives - Rear16.9 gal (64 l)
Fuel Tank - Standard100.4 gal (380 l)
Hydraulic Tank29 gal (110 l)
Transmission11.7 gal (44 l)

Tires

TiresChoose from a variety of tires to match your application.

Transmission

Forward - 14.2 mph (7 kph)
Forward - 27.8 mph (13 kph)
Forward - 313.7 mph (22 kph)
Forward - 423.2 mph (37 kph)
Max Speed - Forward23.2 mph (37 kph)
Max Speed - Reverse23.2 mph (37 kph)
Number of Forward Gears4
Number of Reverse Gears4
Reverse - 14.6 mph (7 kph)
Reverse - 28.6 mph (14 kph)
Reverse - 315.1 mph (24 kph)
Reverse - 423.2 mph (37 kph)
Transmission TypePowershift

Weights

Operating Weight52254 lbs (23,702 kg)
Operational Weight52254 lbs (23,702 kg)
