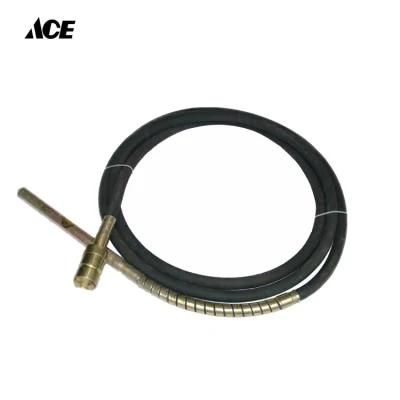

Dynapac Type Factory Directly Sale Concrete Needle Vibrator
Ningbo Ace Machinery Co., Ltd.- Type：Concrete Vibrator
- Shotcrete Type：Wet
- Machining Process：Assembly
- Structure：Rotary
- Productivity：50m²,h
- Feeding Height：1370mm
Base Info
- Model NO.：ZX50
- Vibrating Amplitude：1.3mm
- Certification：ISO9001: 2000
- Condition：New
- Color：Yellow
- Name：Concrete Vibrator Shaft
- Diameter：50mm
- Name1：Concrete Vibrator Hose
- Length：3~10mtr
- Transport Package：Carton
- Specification：50MM
- Trademark：KZW
- Origin：Ningbo, China
- HS Code：84314990
- Production Capacity：6000 PCS,Month
Description
Model Interational type Domestic type ZX-32 ZX-38 ZX-45 ZX-60 ZX-35 ZX-50 ZX-70 Diameter Φ (mm) 32 38 45 60 35 50 70 Length L (mm) 583 580 583 577 400 479 555 Vibrating Frequency (HZ) 220 200 200 200 200 200 200 Vibrating Ampitude (mm) 0.82 1.2 1.2 1.25 0.91 1.15 1.35 Diameter of flexiable hose D(mm) 30 30 32 36 30 36 36 Diameter of flexiable shaft D(mm) 10 10 12 13 10 13 13 Weiht with 6mtr hose (kg) 14.5 15 17 23 14 20.5 24 packing size cm 85*65*5.5 mm
