120 HP Small Bulldozer 14 Ton Crawler Bulldozer for Swamp and Landfill

Sinoway Industrial (Shanghai) Co., Ltd.
  • Warranty:One Year
  • Type:Universal Type
  • Transmission:Power Transmission
  • Walking Mode:Crawler
  • Load and Unload Method:Front Discharge
  • Engine Power:74~147kw

Base Info

  • Model NO.:SWD120
  • Certification:ISO9001: 2000, ISO14001
  • Condition:New
  • Color:Yellow
  • Track Width:450 mm
  • Blade Type:Straight
  • Max. Tractive Force:80kn
  • Travel Speed:10.4 Km,H
  • Operating Weight:13.5 Ton
  • Transport Package:Nude
  • Specification:ISO
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:84294090
  • Production Capacity:50 PCS,Month

Description

Basic Info.

Model NO. SWD120 Certification ISO9001: 2000, ISO14001 Condition New Color Yellow Track Width 450 mm Blade Type Straight Max. Tractive Force 80kn Travel Speed 10.4 Km/H Operating Weight 13.5 Ton Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 50 PCS/Month

Product Description


Sinoway SWD120 Bulldozer Features

Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption and stronger torsion.Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lightly and convenient operation.
Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
Operation environment is fully closed, hexahedral cab with lower noise; effectively reducing noise beside you ear, extending your visual field and effectively improving comfort.
Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation.
Operation device: several devices such as direct-pouring shovel, environmentally hydraulic, angle shovel, coal-pushed shovel and soil scarifier are available for user.
With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application

Product Show

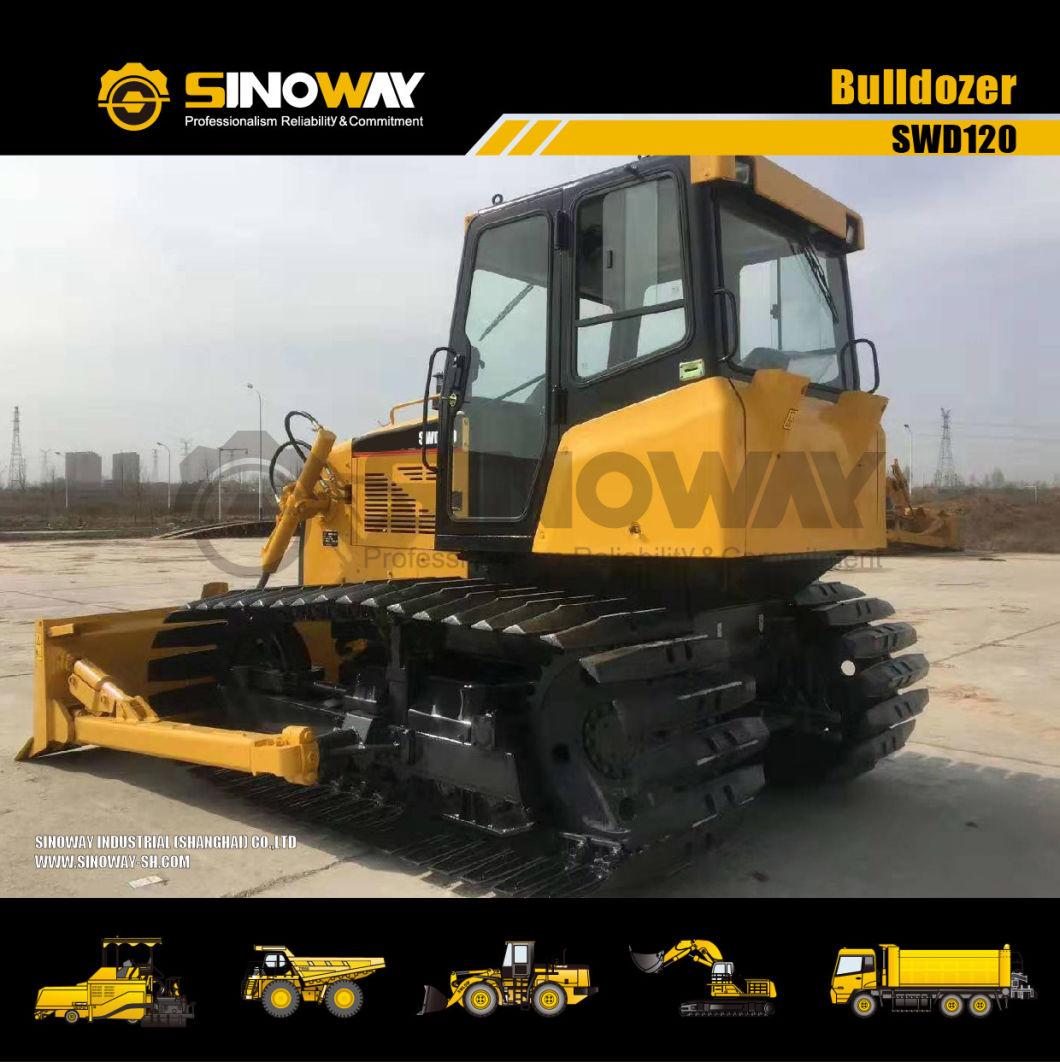

.120 HP Small Bulldozer 14 Ton Crawler Bulldozer for Swamp and Landfill

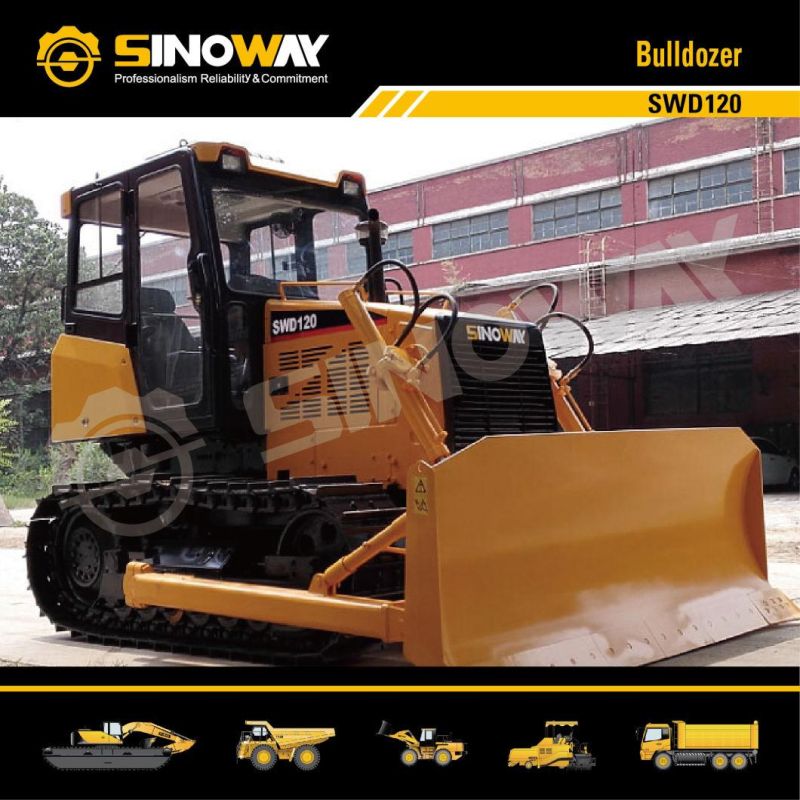

120 HP Small Bulldozer 14 Ton Crawler Bulldozer for Swamp and Landfill

Specifications

Engine
ModelLuotuo LR6A3Z
TypeSix-cylinder,water-cooled turbocharged,mechanical injectio
Rated power88.2KW
Rated speed2000rpm
Implement Hydraulic System
Hydraulic flow rate130L/min
Hydraulic pressure16MPa
Pump typeGear pump
Control valveHand operated
Under Carriage System
SprocketSegmented
Number of track rollers (each side)5
Number of carrier rollers (each side)(3 single, 2 double)
Number of front idler (each side)21
Track typeSingle grouser
Track tensionHydraulic
Track pitch171mm
Track width500mm
Number of track shoes (each side)43
Track length on ground2502mm
Ground clearance368mm
Main Technical Specification
Operating weight(without ripper)13500Kg
Ground pressure(without ripper)0.051MPa
Grade ability58%
Overall dimensions (L×W×H,without ripper)4565×3135×2980mm
Max. tractive force115KN
Working Equipment
Blade typeStraight
Width3135mm
Height970mm
Max. digging depth400mm
Max. lift above ground894mm
Tilting angle8.5°
Blade capacity3.5m3
Transmission System
Gear boxMechanical
Bevel gearOne pair spiral bevel gear
Final driveOne pair columnar gear floating sealing
Gear shifts(Forward/Reverse)Travelling speed(km/h)F4/R2
Forward/Reverse I2.4~10.6
Forward/Reverse II3.8~7.0
Service Capacities
Fuel tank255L
Water tank22L
Implement oil tank35L
Steering clutchDry multi-plate, floating control
Steering brakeMechanical pedal control
